Overview:

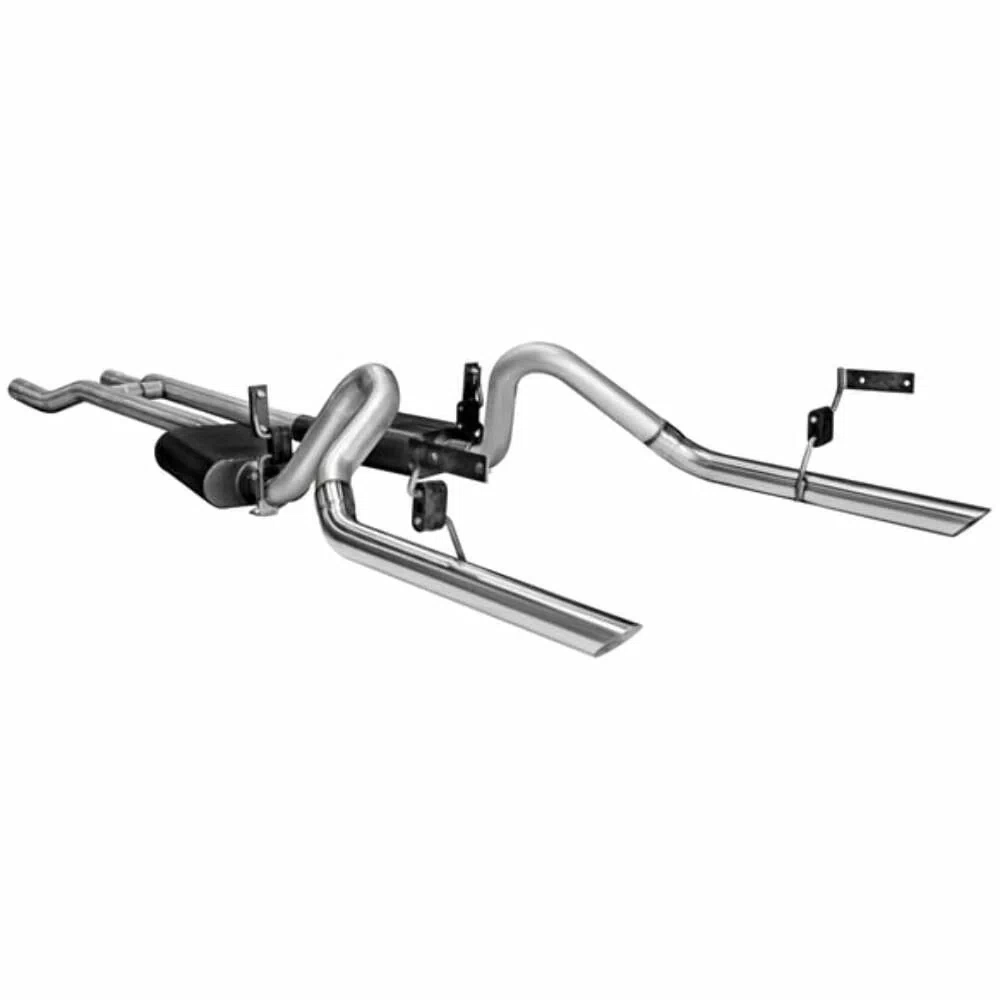

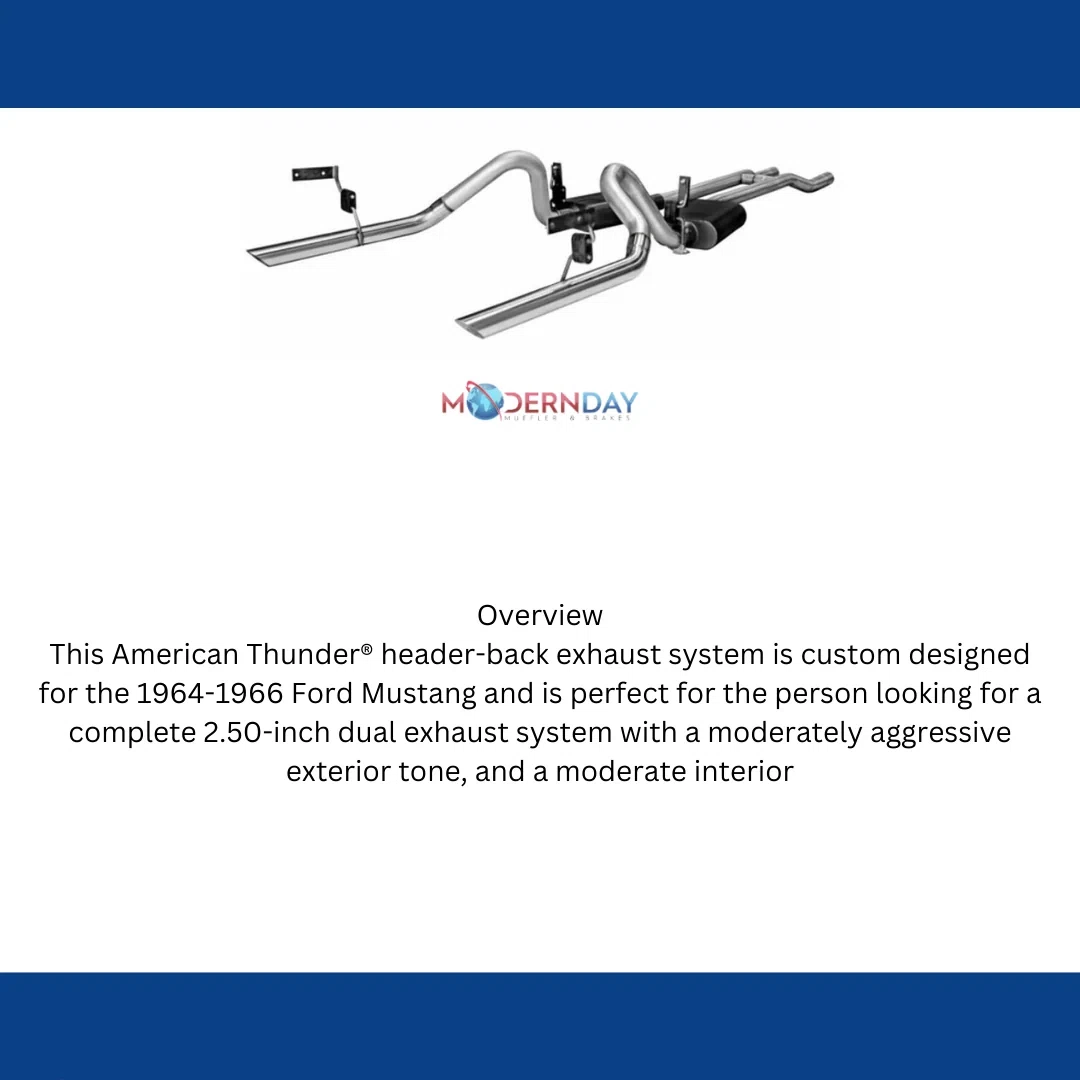

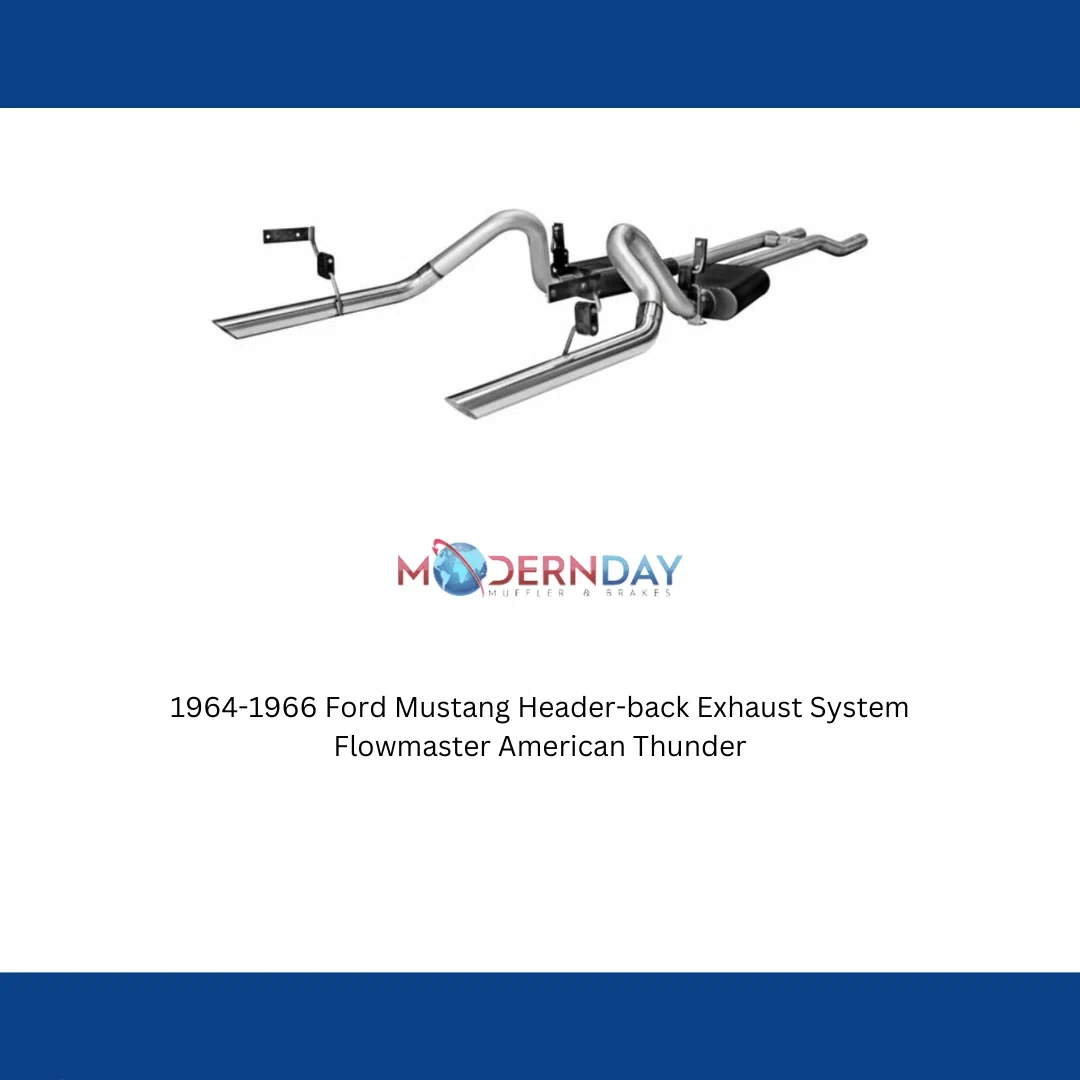

This American Thunder® Crossmember-Back exhaust system is custom designed for the 1964-1966 Ford Mustang and is perfect for the person looking for a complete 2.50-inch dual exhaust system with a moderately aggressive exterior tone, and a moderate interior sound. With easy fit in mind, these 16-gauge aluminized steel systems feature all mandrel-bent tubing, an H-pipe to equalize the exhaust pressures and a pair of specially selected 40 Series Delta Flow performance mufflers for a deep powerful sound. The mandrel-bent 2.50-inch tailpipes tuck up out of the way for maximum clearance and the last few feet is all polished stainless steel for a show car look. Like all Flowmaster® systems, benefits include improved throttle response, power, and mileage. Designed for an easy fit, these systems include all necessary parts, hardware and instructions for an easy installation. The system is covered by our 3-year Limited Warranty. Connects to existing header collector reducer cones or manifold downpipes(not included.) If you prefer a full stainless steel system with a Lifetime Limited Warranty, check out exhaust system #817273. Notes: For non GT and hardtop models.
Features:
2.50 and 3.00-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability
A 4.00-inch black ceramic coated tip adds a custom look to the truck
Includes complete hardware and factory styled hangers in the stock location for an easy installation
Flow FX “stright through” performance muffler delivers a deep, aggressive to moderate performance tone and improves exhaust flow
Backed by Flowmaster’s Lifetime Limited Warranty
Max gains of 6 hp and 5 lb.ft. of torque at the rear wheels

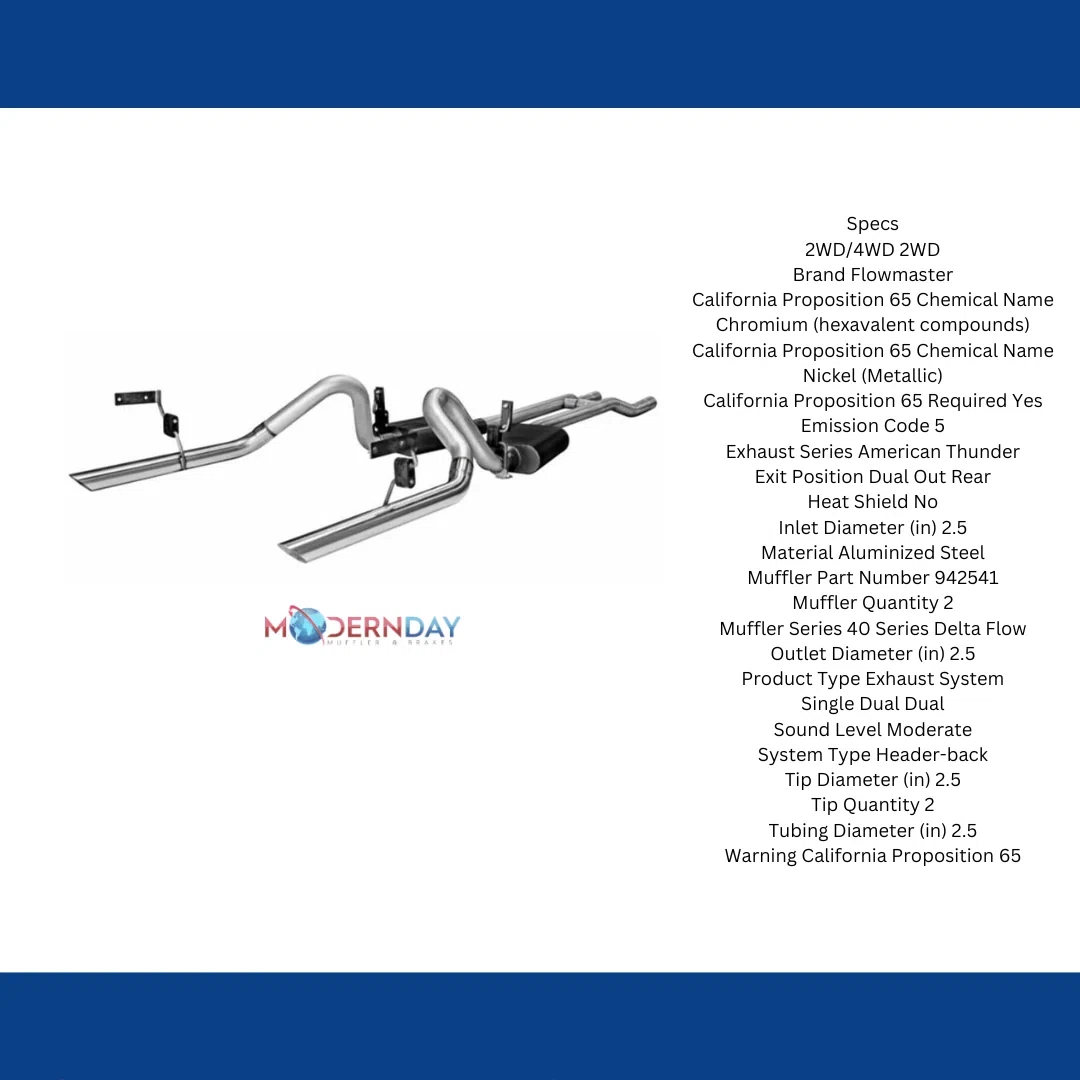

Specs:
Brand: Flowmaster
CARB (California) Compliant: Yes
Catalytic Converter Included: No
Catalytic Converter Quantity: 0
Clamping Type: U-Bolt
Clamps Included: Yes
Emission Code: 5
Exhaust Series: American Thunder
Exhaust Tip Connection: Welded
Exhaust Tip Cut: Angled
Exhaust Tip Edge: Slash Cut
Exhaust Tip Finish: Polished
Exhaust Tip Material: 304 Stainless Steel
Exhaust Tip Quantity: 2
Exhaust Tip Shape: Round
Exit Style: Dual Out Rear
Finish: Aluminized
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Heat Shield Included: No
Inlet Diameter: 2.5
Inlet Type: Weld-On
Main Piping Diameter: 2.5
Mounting Bracket Included: Yes
Muffler (Left) Body Height: 4
Muffler (Left) Body Length: 13
Muffler (Left) Body Width: 9.75
Muffler (Left) Type: Chambered
Muffler (Right) Body Height: 4
Muffler (Right) Body Length: 13
Muffler (Right) Body Width: 9.75
Muffler (Right) Type: Chambered
Muffler Body Height: 4
Muffler Body Length: 13
Muffler Body Material: Aluminized Steel
Muffler Body Shape: Oval
Muffler Body Width: 9.75
Muffler Finish: Black High-Temperature Paint Finish
Muffler Flanged Inlet: No
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Slip-Fit
Muffler Inlet Inside Diameter: 2.5
Muffler Inlet Outside Diameter: 2.63
Muffler Outlet Connection: Slip-Fit
Muffler Outlet Quantity: 1
Muffler Part Number: 942541
Muffler Quantity: 2
Muffler Series: 40 Series Delta Flow
Muffler Type: Chambered
Pipe Color: Silver
Pipe Material: Aluminized Steel
Sound Level: Aggressive / Moderate
Spring Bolt Kit Included: No
Tail Pipe Outlet Outside Diameter: 2.5
Tail Pipe Quantity: 2
Tail Pipe Tapered Outlet: No
Type: Crossmember-back
Valve Included: No
Valve Type: Not Applicable
Part Number: 17273
Applications:
- 1964-1966 Ford Mustang 289 CID
- 1964-1965 Ford Mustang 260 CID
Emissions:
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
