Overview:

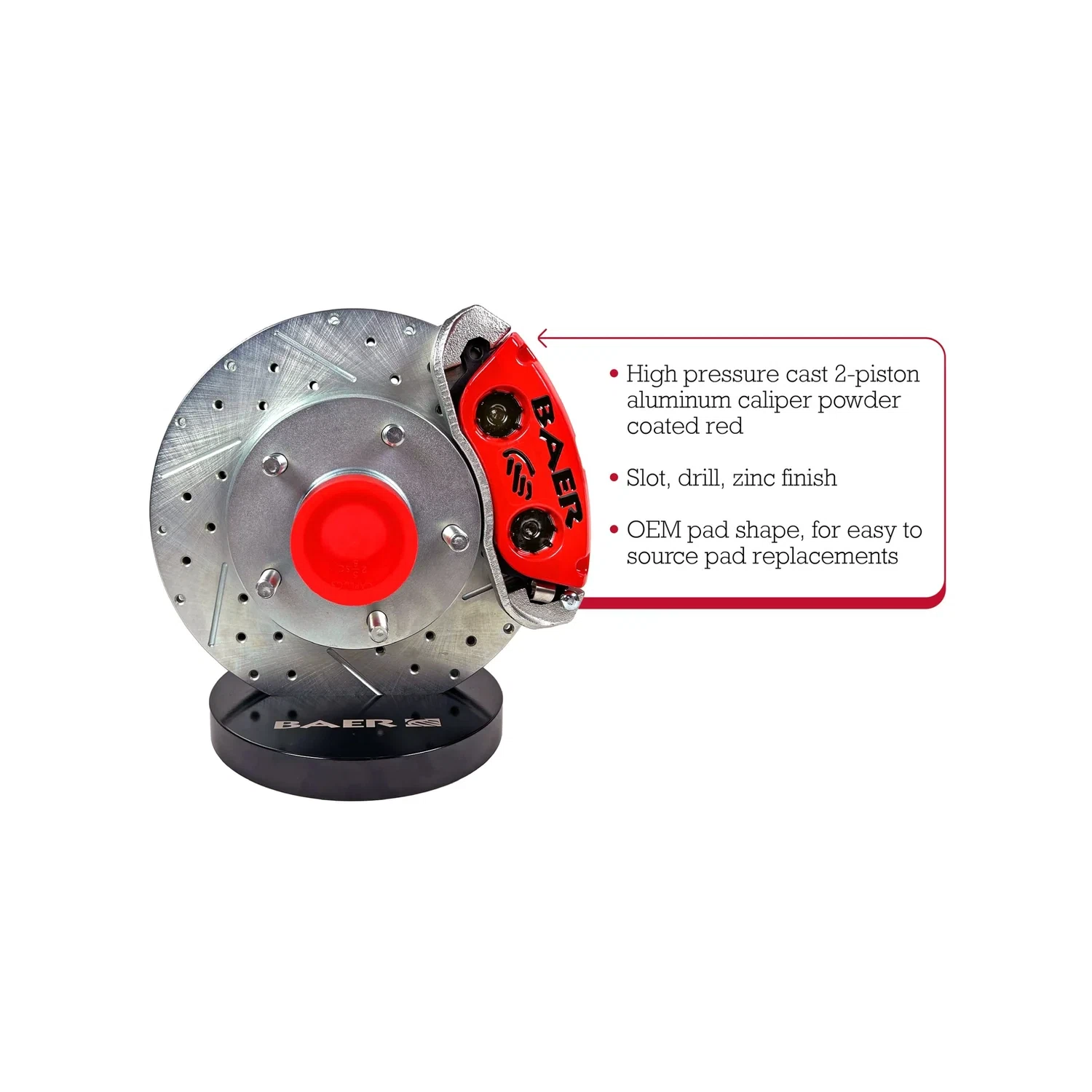

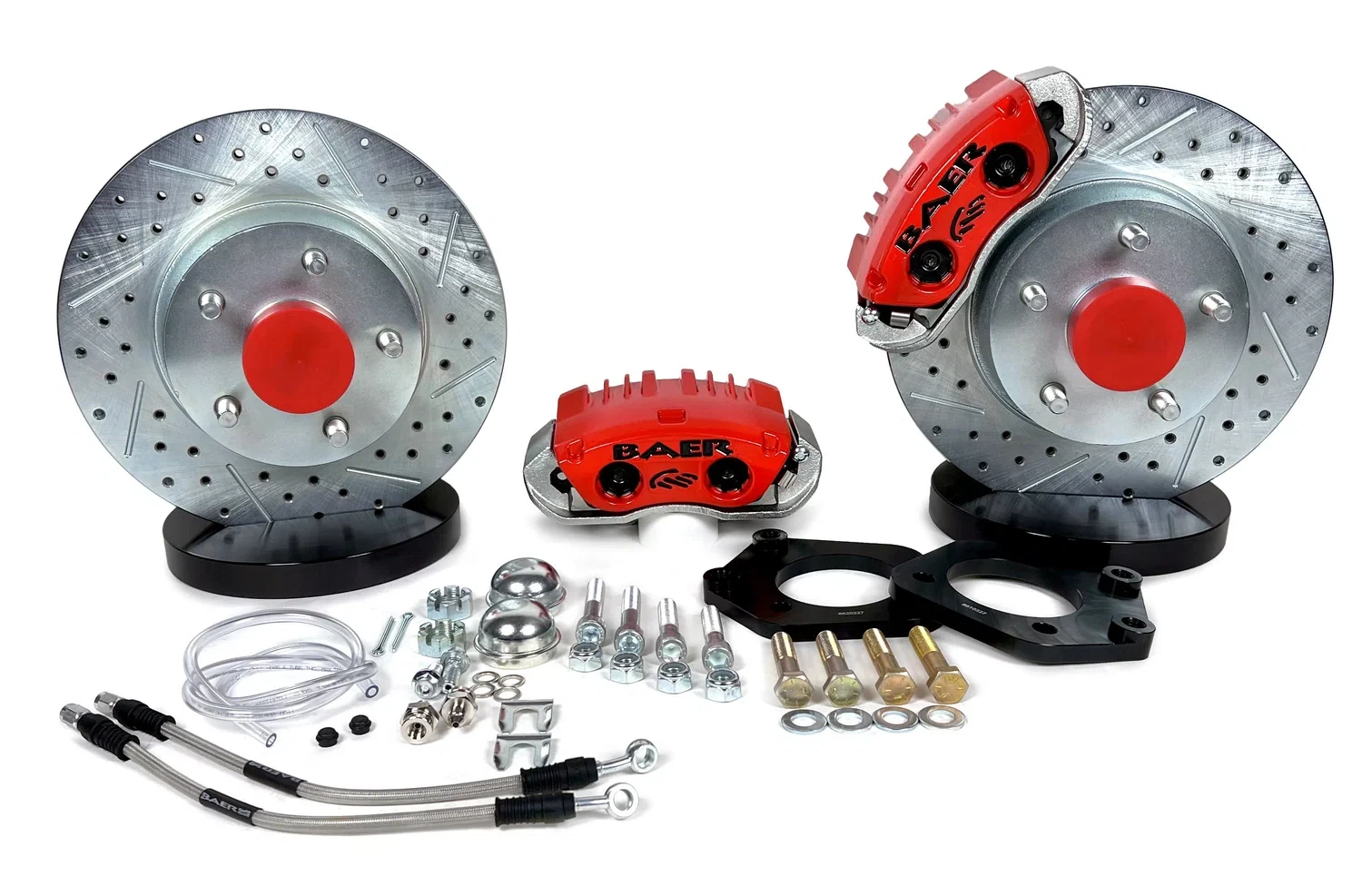

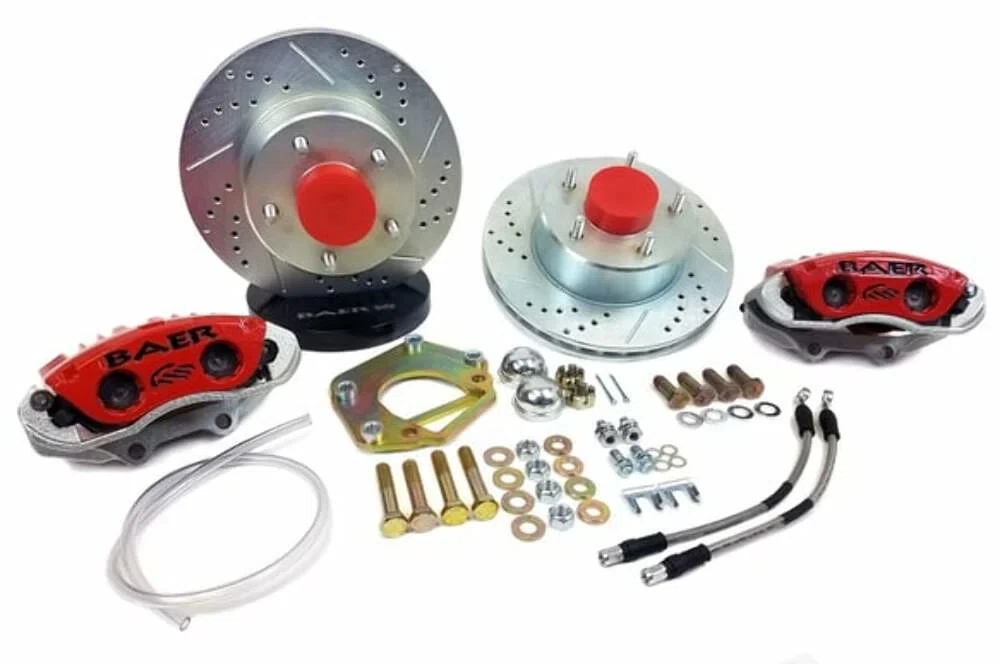

The quintessential classic-disc upgrade: original Baer 2-piston pad-guided calipers (red, D412 pads) over 11″ one-piece slotted, drilled, zinc-plated rotors with integral hubs. Comes complete with premium bearings (races installed), dust caps, brackets, stainless braided hoses, and hardware. Fits select 15″+ wheels. Use a 15/16″ master (or 7/8″ for manual); larger bores reduce line pressure and increase pedal effort.
Features:
- Aluminum, 2-Piston, Pad Guided Caliper
- Red Powder Coated Caliper w/Black Baer Logo
- Slot, Drill, Zinc Plated Rotor Finish
- Stainless Braided Brake Hoses
- Uses Common FMSI D0412 Brake Pad
- Modern Brakes for Small Wheels at an Economical Price
Specs:
-
Axle: Front
-
Box Count: 2
-
Brake Hose DOT Approved: Yes
-
Brand: Baer Brakes
-
Caliper: 2 PGC
-
Caliper Color: Red
-
Disc Brake Caliper (Front) Piston Quantity: 2
-
Disc Brake Caliper (Front) Type: Floating
-
Disc Brake Pad FMSI Number: D0412
-
Disc Brake Rotor (Front) Construction: Vented
-
Disc Brake Rotor (Front) Outside Diameter: 11.000 IN
-
Emission Code: 6
-
Fitment Notes: w/OE Spindles or DSE, Heidt’s, Fatman, Ridetech, L&H or Speedway Motors G-Comp Drop Spindles
-
Friction Material: Composition Ceramic
-
Grade Type: Performance
-
Hose Material: Stainless Steel Braided
-
Lug Count: 5 Lug
-
Minimum Wheel Diameter (verify using template): 15 IN
-
Part Type: Disc Brake Upgrade Kit
-
Prop 65 – Long Label: WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov
-
Prop 65 Yes/No: Yes
-
Rotor Thickness: 1.020 IN
-
Rotor Type: 1-Piece Integral Hub
-
Solid Or Vented Type Rotor: Vented
-
Surface Type: Slotted, Drilled & Zinc Plated
-
System Notes: GM AFX (also fits DSE, Heidt’s, Fatman, Ridetech, L&H or Speedway Motors G-Comp 2″ drop spindles)
-
Template: D194A
-
Wheel Lug/Bolt Pattern: 5×4.75
-
Wheel Stud Size: 7/16-20 in
-
Part Number: 4301550R
Applications:
- 1973-1974 Buick Apollo
- 1964-1972 Buick Skylark
- 1964-1969 Buick Special
- 1964-1972 Buick Sportwagon
- 1967-1969 Chevrolet Camaro
- 1964-1972 Chevrolet Chevelle
- 1964-1968 Chevrolet Chevy II
- 1964-1972 Chevrolet El Camino
- 1970-1972 Chevrolet Monte Carlo
- 1969-1974 Chevrolet Nova
- 1971-1972 GMC Sprint
- 1964-1971 Oldsmobile 442
- 1964-1972 Oldsmobile Cutlass
- 1966-1972 Oldsmobile Cutlass Supreme
- 1964-1972 Oldsmobile F85
- 1973-1974 Oldsmobile Omega
- 1964-1972 Oldsmobile Vista Cruiser
- 1967-1969 Pontiac Firebird
- 1964-1972 Pontiac GTO
- 1964-1972 Pontiac LeMans
- 1964-1970 Pontiac Tempest
- 1971-1974 Pontiac Ventura
- Must use 15″ or larger wheels!
- Fits OE Disc/Drum Spindles or DSE, Heidt’s, Fatman, Ridetech, L&H or Speedway Motors G-Comp Drop Spindles
-
IMPORTANT: This system is designed for vehicles with a 15/16” master cylinder and proper pedal ratio. For manual brake setups, a 7/8” master cylinder can be used so less effort is required to apply the brakes. Any master larger than 15/16” will require too much pedal input to generate proper line pressure for your brake system
- Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.
Instructions:
Service Parts:
- Brake Pads – Part Number D0412R
