Overview:

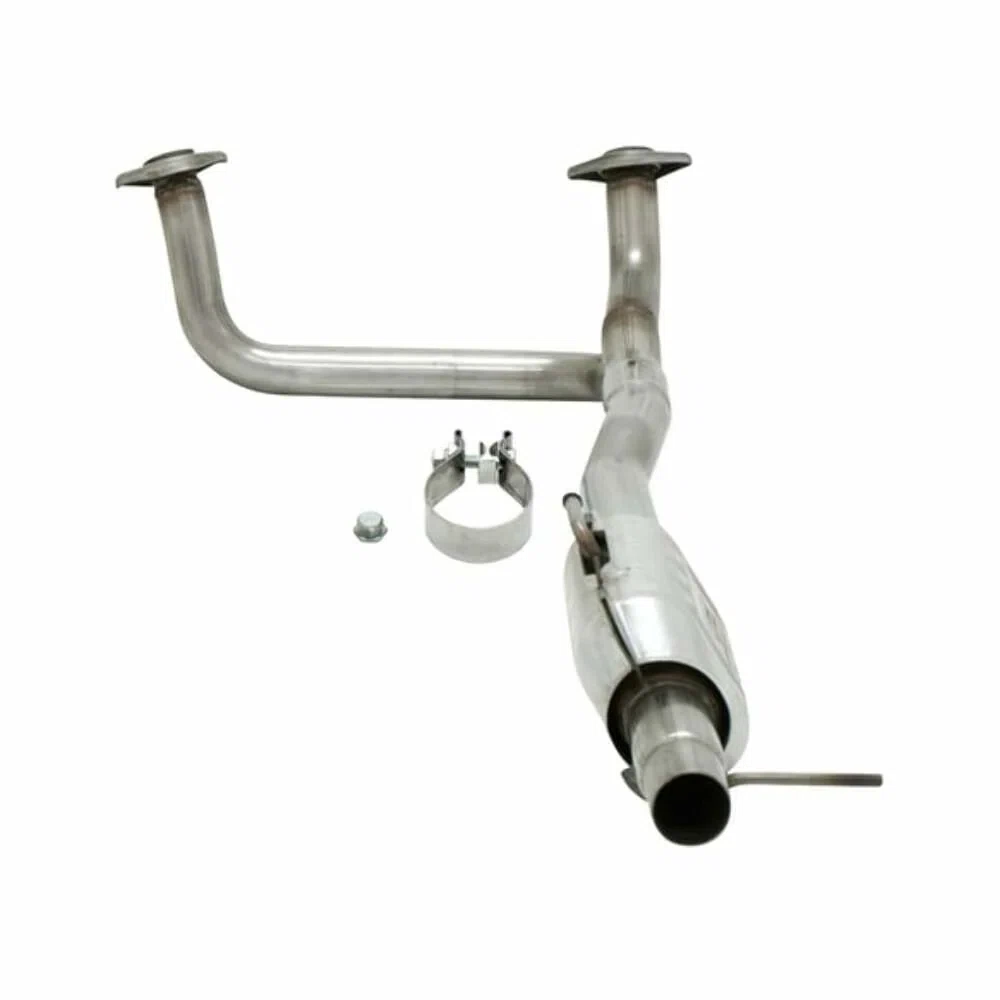

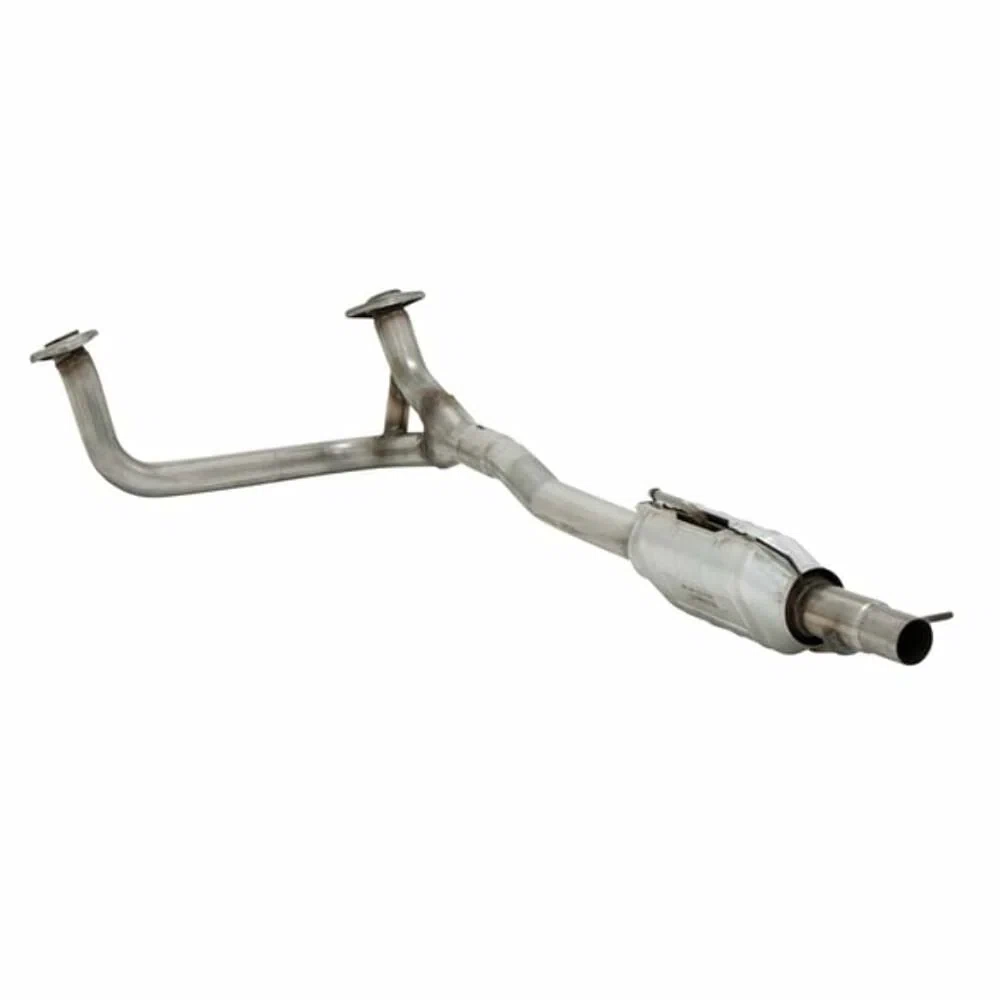

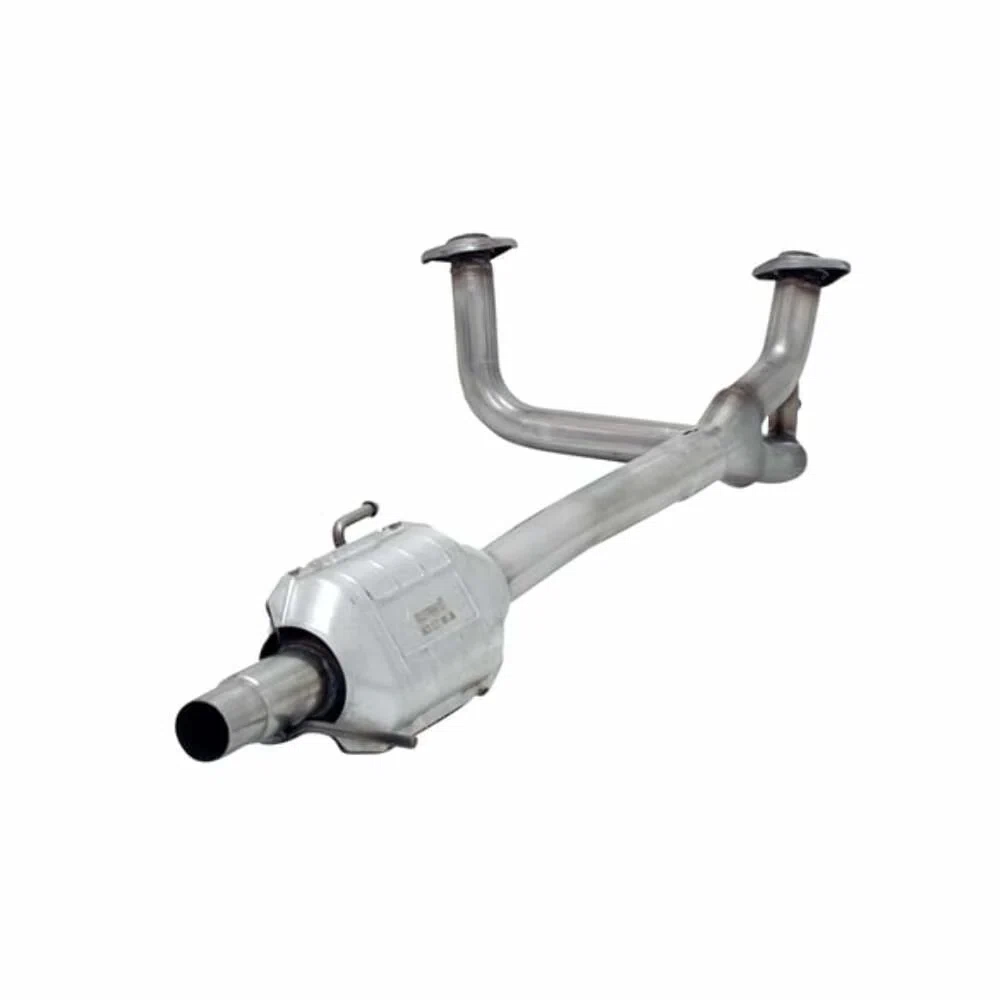

Flowmaster’s new Federal legal direct fit catalytic converter is for the 1984-1995 Ford F-150, F-250 and the 1985-1995 Bronco with the 5.0L engine. This stainless steel unit is a two piece assembly with a mandrel bent Y-pipe and a single converter assembly which connects to the factory exhaust system. Hardware and gaskets are included. This converter meets or s the USEPA standards and includes a 25,000 mile emissions, and 50,000/5 year exterior warranty. Please note: These USEPA Federal converters are not available for sale or use on vehicles licensed or operated in the state of California.
Features:
Includes Aluminum Heat Shield and Stainless Steel Clamps
Scavenger Series Y-Collector for Maximum Torque Gains
Includes Hangers and Hardware for an Easy Installation
Mandrel-bent 16-gauge Aluminized Steel Tubing
70 Series Big Block II Performance Muffler
Dyno Tuned for Maximum Performance
Uses the Factory Hanger Locations
Moderate Exterior Exhaust Note
Ideal for Towing Applications
Quick and Easy Installation
Specs:
Air Tube Adaptable: No
Assembly Length: 12.5
Body Height: 3.875
Body Length: 12.5
Body Width: 7.38
Brand: Flowmaster
California Air Resources Board (CARB) Certified: No
CARB (California) Compliant: No
CARB Executive Order Number: Not Applicable
Clamps Included: No
Converter Quantity: 1
Emission Code: 2
Finish: Natural
Fitment: Direct Fit
Grade: Premium Grade
Grade Type: Premium Grade
Hangers Included: No
Heat Shield Attached: Yes
Inlet Connection Type: Flanged
Inlet Diameter: 2
Inlet Gasket Included: No
Inlet Inside Diameter: 1.93
Inlet Mounting Hardware Included: No
Inlet Outside Diameter: 2.06
Inlet Quantity: 2
Inlet Type: Flanged
Material: Stainless Steel
Mounting Hardware Included: No
Outlet Connection Type: Clamp On
Outlet Diameter: 2.25
Outlet Inside Diameter: 2.12
Outlet Mounting Hardware Included: No
Outlet Orientation: Straight
Outlet Outside Diameter: 2.25
Outlet Quantity: 1
Outlet Type: Non-Flanged
Oxygen Sensor Location: Pre Catalyst
Sensor Port Count: 1
Substrate Material: Ceramic
Tube Material: 409 Stainless Steel
Universal Or Specific Fit: Specific Fit
Part Number: 2020057
Applications:
- 1985-1995 Ford Bronco 302 CID
- 1984-1995 Ford F-150 302 CID
- 1984-1995 Ford F-250 302 CID
Emissions:
- This part is legal for sale and use on Emissions Controlled Vehicles when used in accordance with the manufacturers application guide because it is a direct or consolidated replacement part.
- The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
