Overview:

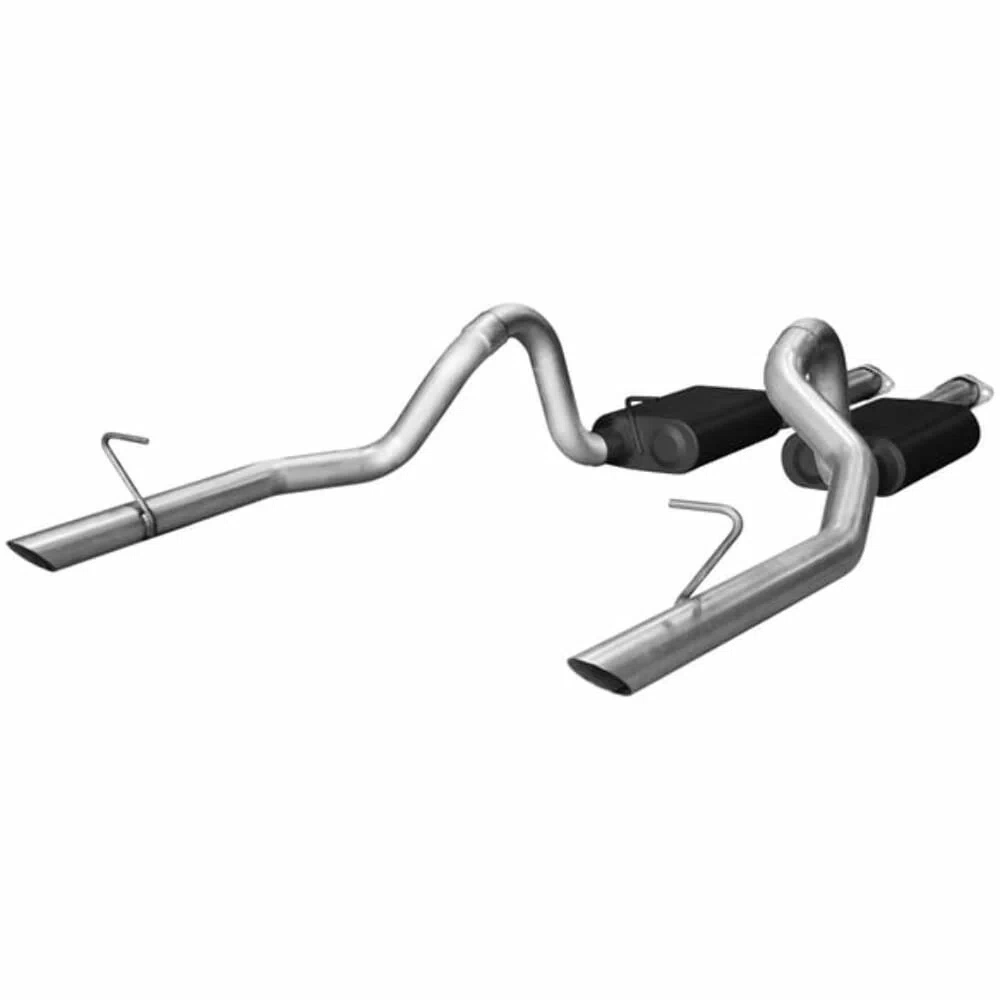

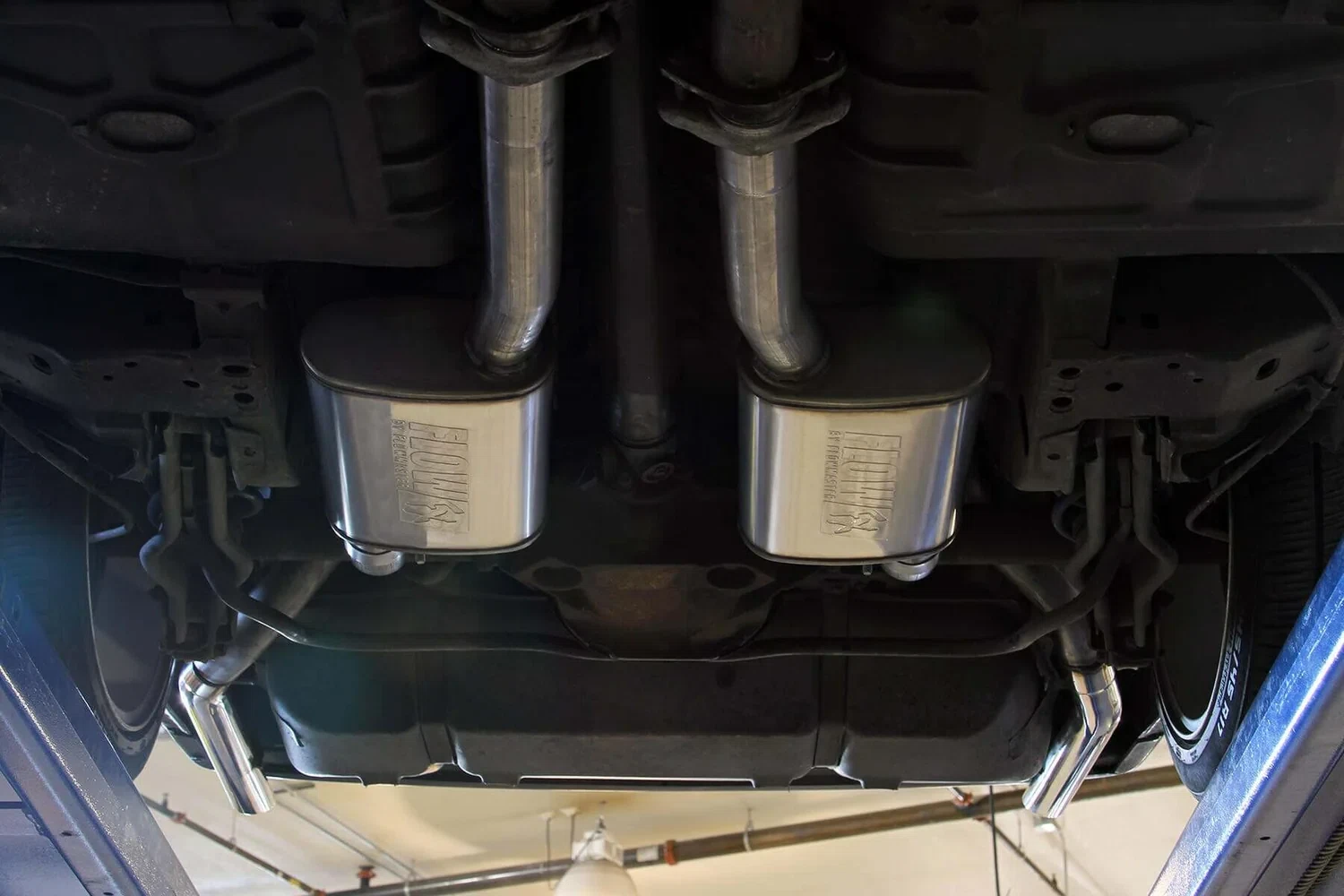

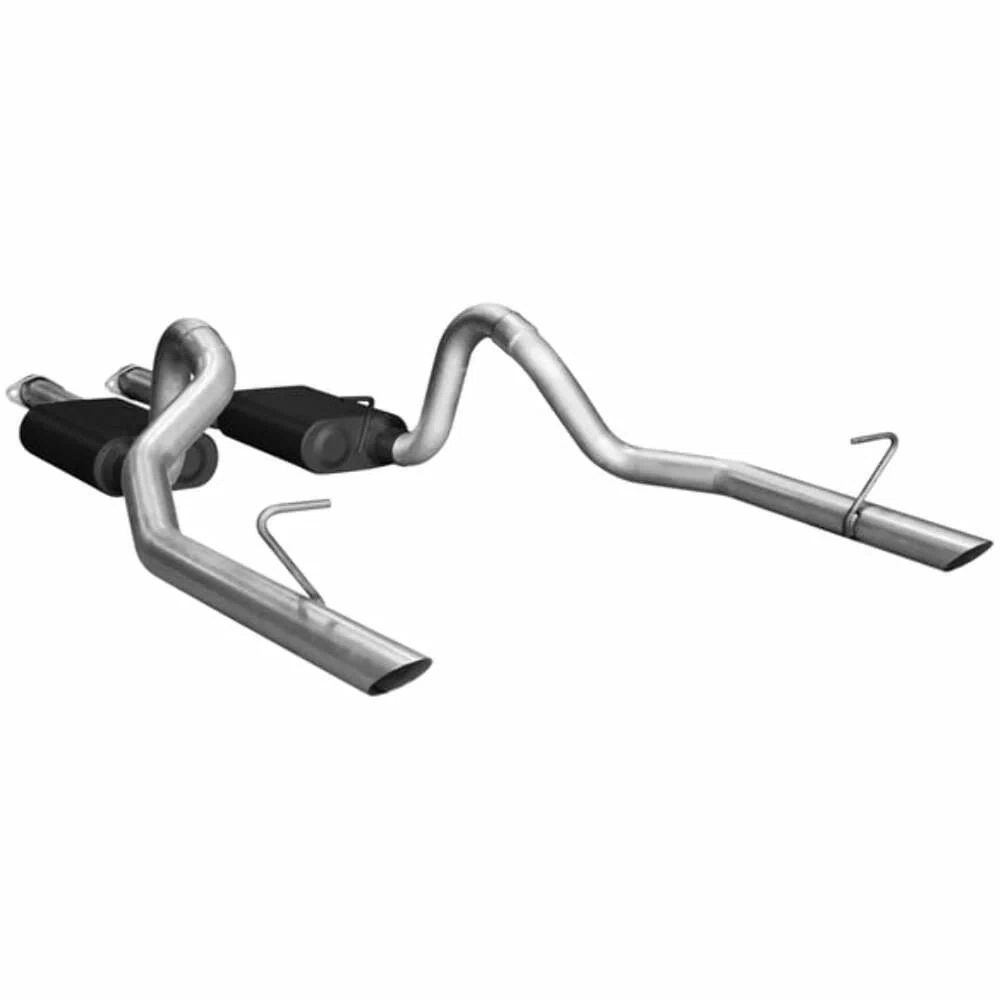

This Flow FX cat-back exhaust system is designed for the 1986-1993 Ford Mustang LX (1986 GT) with the 5.0L engine. Features include 409 stainless steel construction for added durability and 16-gauge 2.5-inch mandrel-bent tubing for unrestricted exhaust flow. Stock style, polished stainless steel tailpipes give your car the classic 5.0 look and have the Flowmaster logo laser etched along the side for added style. The stainless “straight-through” Flow FX performance mufflers deliver a moderate yet deep and powerful sound while the interior sound is kept very mild. The system uses the factory hanger locations and includes detailed instructions and all hardware necessary for a quick and easy installation you can do at home. Backed by Flowmaster’s Lifetime Limited Warranty.
Features:
Flow FX Series performance muffler offers a moderate to mild sound level and increased performance
409 stainless steel construction delivers extra durability and improved long-term corrosion resistance
Max dyno gains of 4 hp and 4 lb-ft at the wheels
2.50-inch 16-gauge mandrel bent stainless steel tubing helps maintain maximum exhaust flow for better power
Includes all necessary hardware for an at home installation
3.50-inch black ceramic-coated stainless steel tips add a custom look to the vehicle
Uses factory hanger locations for easy installation
Works on models with or without rear bumper exhaust bezels
Specs:
Brand: Flowmaster
CARB (California) Compliant: Yes
Catalytic Converter Included: No
Catalytic Converter Quantity: 0
Clamping Type: Flat Band
Clamps Included: Yes
Emission Code: 5
Exhaust Series: Flow FX
Exhaust Tip Connection: Welded
Exhaust Tip Cut: Angled
Exhaust Tip Edge: Slash Cut
Exhaust Tip Finish: Polished
Exhaust Tip Material: 304 Stainless Steel
Exhaust Tip Quantity: 2
Exhaust Tip Shape: Round
Exhaust Tip Wall: Single Wall
Exit Style: Dual Out Rear
Finish: Natural
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Heat Shield Included: No
Inlet Type: Flanged
Main Piping Diameter: 2.5
Mount Type: Uses Factory Hangers
Mounting Bracket Included: No
Muffler (Left) Body Height: 4
Muffler (Left) Body Length: 14
Muffler (Left) Body Width: 9
Muffler (Left) Type: Absorption
Muffler (Right) Body Height: 4
Muffler (Right) Body Length: 14
Muffler (Right) Body Width: 9
Muffler (Right) Type: Absorption
Muffler Body Length: 14
Muffler Body Material: 409 Stainless Steel
Muffler Body Shape: Oval
Muffler Color: Silver
Muffler Finish: Natural
Muffler Flanged Inlet: Yes
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Loose Flange
Muffler Inlet Inside Diameter: 2.5
Muffler Inlet Location: Offset
Muffler Inlet Outside Diameter: 2.63
Muffler Outlet Connection: Slip-Fit
Muffler Outlet Diameter: 2.5
Muffler Outlet Quantity: 1
Muffler Overall Length: 34.5
Muffler Part Number: Kit Only
Muffler Quantity: 2
Muffler Series: Flow FX
Muffler Type: Absorption
Pipe Color: Silver
Pipe Material: 409 Stainless Steel
Sound Level: Moderate/Mild
Spring Bolt Kit Included: No
Tail Pipe Outlet Outside Diameter: 2.5
Tail Pipe Quantity: 2
Tail Pipe Tapered Outlet: No
Type: Cat-Back
Valve Included: No
Valve Type: Not Applicable
Part Number: 717213
Applications:
- 1986-1993 Ford Mustang 302 CID
Emissions:
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
