Overview:

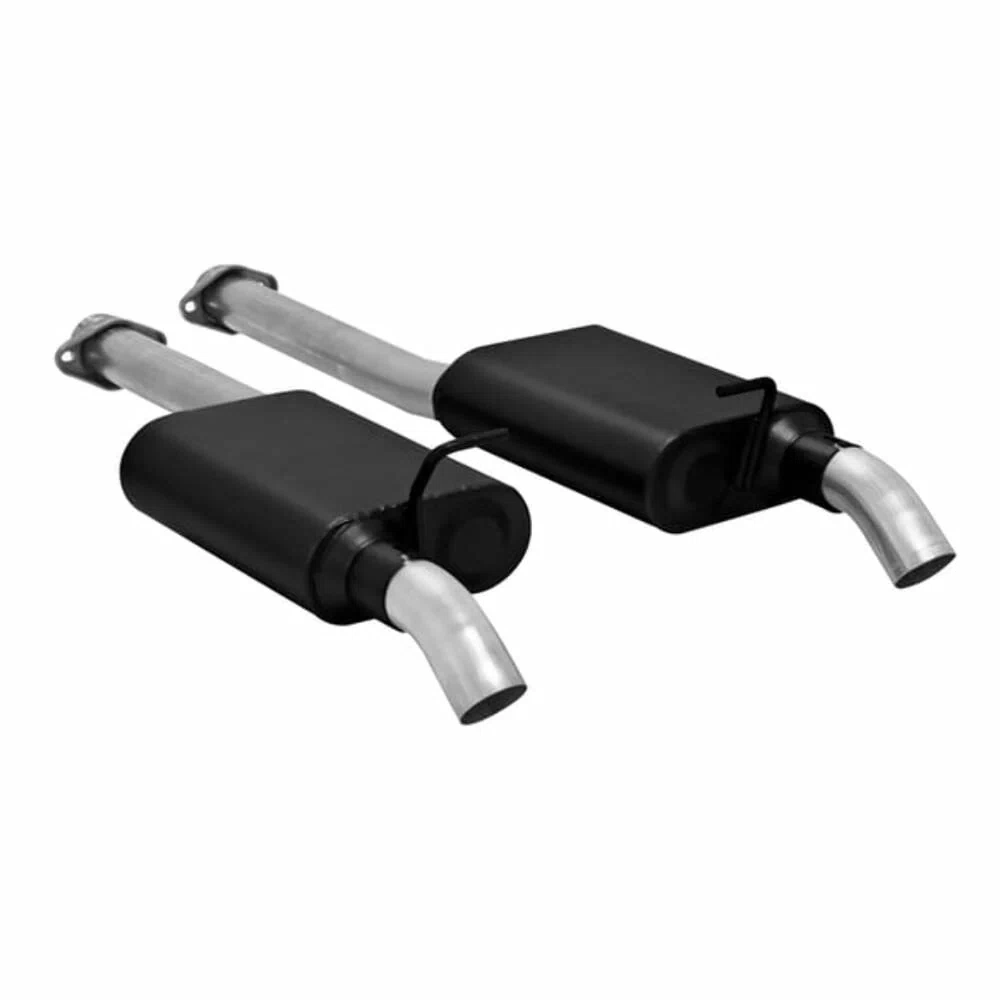

Flowmaster’s race-inspired American Thunder® Extreme Cat-back system is designed to mount behind the factory catalytic converters, or most original style aftermarket H-pipes. The turn-down tailpipes drop at the rear of the transmission and eliminates full length tailpipes to maximize the sound level and allow for extra clearance for wide tires and modified suspensions. These systems are mandrel bent for maximum performance and include Super 44 series mufflers. This American Thunder Extreme system delivers a super aggressive interior and exterior tone and is suited to the enthusiast who wants the most aggressive components they can purchase. Like all Flowmaster systems, the benefits include improved throttle response and power. Designed for an easy fit, these systems include all necessary parts and hardware for easy installation. Notes: Fits coupes and convertibles
Features:
Large 3.50-inch Black Ceramic Coated Stainless Steel Tip
Deep Powerful Tone Inside and Outside the Vehicle
Flow FX “Straight-through” Performance Muffler
Mandrel-bent Stainless Steel Tubing
Includes All Necessary Hardware
Lifetime Limited Warranty
Easy Installation
Specs:
Brand: Flowmaster
CARB (California) Compliant: Yes
Catalytic Converter Included: No
Catalytic Converter Quantity: 0
Clamping Type: Flat Band
Clamps Included: Yes
Emission Code: 5
Exhaust Series: American Thunder
Exhaust Tip Color: Silver
Exhaust Tip Quantity: 0
Exhaust Tip Shape: Round
Exhaust Tip Wall: Single Wall
Exit Style: Dual Out Dumps
Finish: Natural
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Heat Shield Included: No
Inlet Diameter: 2.5
Inlet Type: Flanged
Main Piping Diameter: 2.5
Mounting Bracket Included: No
Muffler (Left) Body Height: 4
Muffler (Left) Body Length: 13.25
Muffler (Left) Body Width: 9.5
Muffler (Left) Type: Chambered
Muffler (Right) Body Height: 4
Muffler (Right) Body Length: 13.25
Muffler (Right) Body Width: 9.5
Muffler (Right) Type: Chambered
Muffler Body Height: 4
Muffler Body Length: 13.25
Muffler Body Material: 409 Stainless Steel
Muffler Body Shape: Oval
Muffler Body Width: 9.5
Muffler Color: Black
Muffler Finish: Black High-Temperature Paint Finish
Muffler Flanged Inlet: Yes
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Loose Flange
Muffler Inlet Inside Diameter: 2.5
Muffler Outlet Connection: Slip-Fit
Muffler Outlet Quantity: 1
Muffler Part Number: Kit Only
Muffler Quantity: 2
Muffler Series: Super 44 Series
Muffler Type: Chambered
Pipe Color: Silver
Pipe Material: 409 Stainless Steel
Sound Level: Aggressive
Spring Bolt Kit Included: No
Tail Pipe Outlet Outside Diameter: 2.5
Tail Pipe Quantity: 2
Tail Pipe Tapered Outlet: No
Type: Cat-Back
Valve Included: No
Valve Type: Not Applicable
Part Number: 817574
Applications:
- 1986-1995 Ford Mustang 302 CID
- 1996-2004 Ford Mustang 281 CID
Emissions:
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
