Overview:

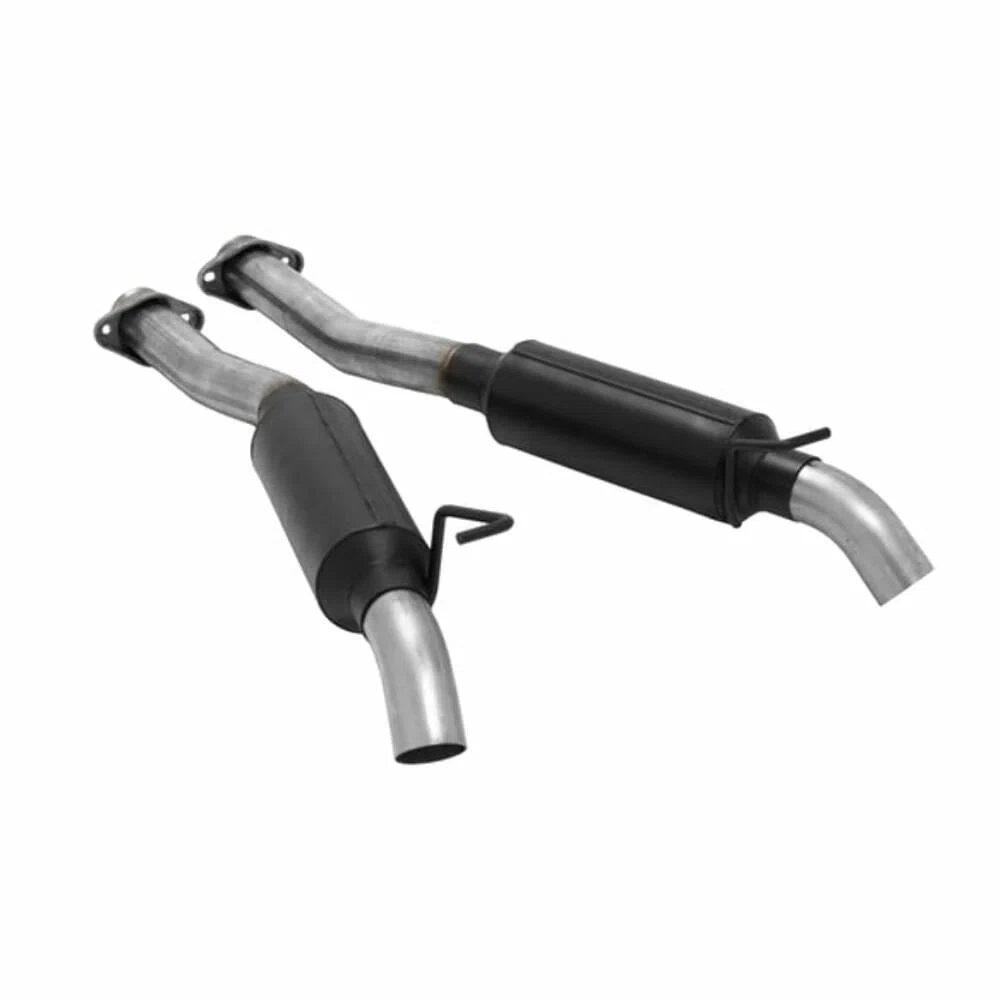

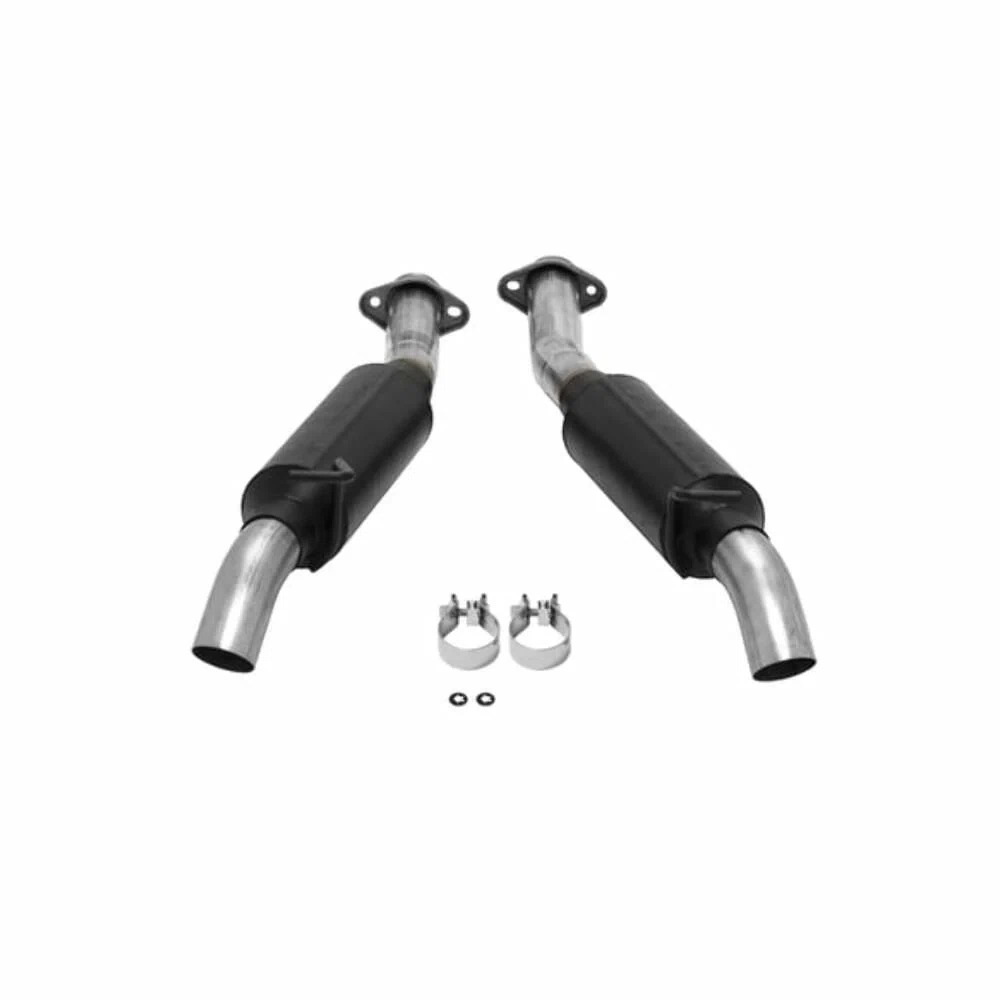

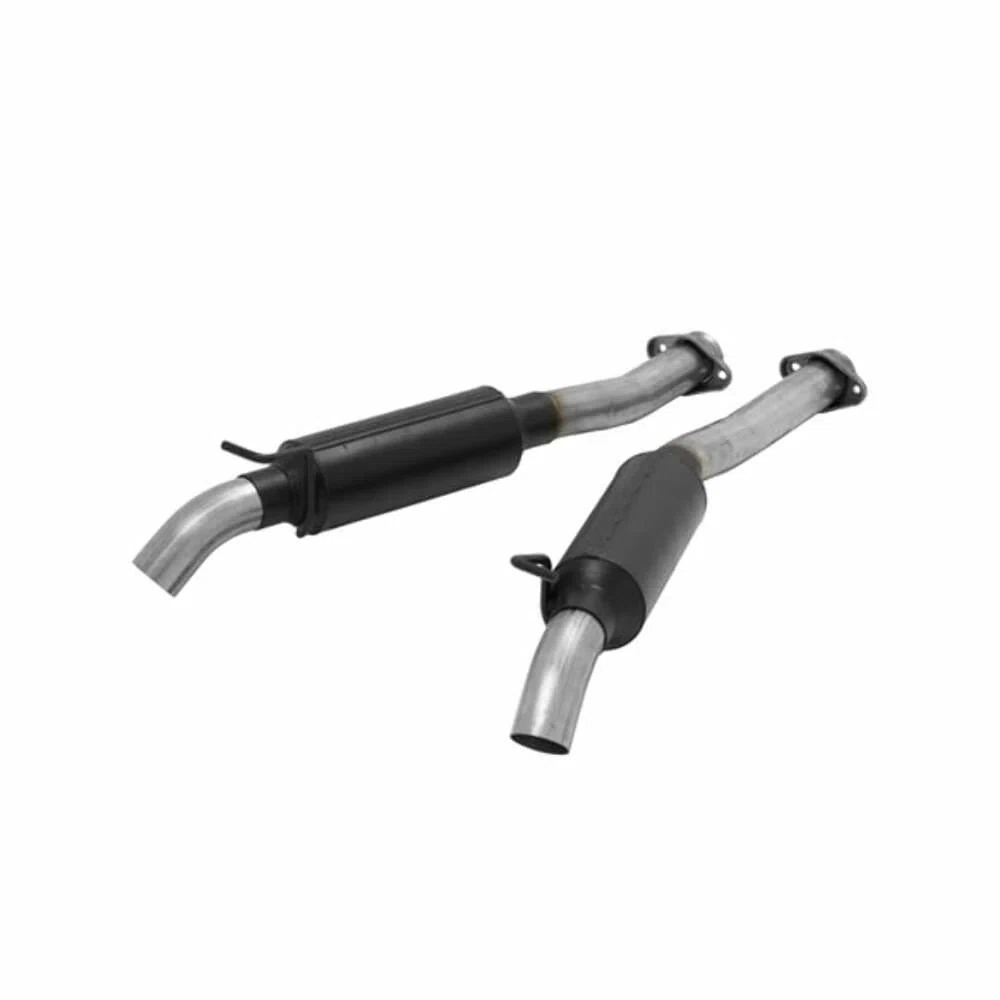

Flowmaster’s race-oriented Outlaw® Extreme Cat-back system is designed for the enthusiast looking for the maximum sound level and performance from their 1986-2004 Mustang GT, LX and Cobra models with either a 4.6L or 5.0L engine. The turn-down tailpipes drop at the rear of the transmission and eliminates full length tailpipes to maximize the sound level and allow for extra clearance for wide tires and modified suspensions. This mandrel-bent system is designed to mount behind the factory catalytic converters, or most factory style aftermarket H-pipes. The Outlaw Extreme system delivers a super aggressive interior and exterior tone and is suited to the enthusiast who wants the most aggressive components they can purchase. Like all Flowmaster® systems, the benefits include improved throttle response and power. Designed for an easy fit, these systems include all necessary parts and hardware for easy installation. Note: Ideal for off-road racing use.
Features:
Includes Hangers and Hardware for an Easy Installation
3.00-inch Mandrel-bent Stainless Steel Tubing
Large 4.00-inch Polished Stainless Steel Tips
Dyno Tuned for Maximum Performance
Aggressive Exterior Exhaust Note
Lifetime Limited Warranty
Specs:
Brand: Flowmaster
CARB (California) Compliant: Yes
Catalytic Converter Included: No
Catalytic Converter Quantity: 0
Clamping Type: Flat Band
Clamps Included: Yes
Emission Code: 5
Exhaust Series: Outlaw
Exhaust Tip Cut: Square
Exhaust Tip Edge: Cut
Exhaust Tip Finish: Natural
Exhaust Tip Material: 409 Stainless Steel
Exhaust Tip Quantity: Sold Separately
Exhaust Tip Shape: Round
Exit Style: Dual Out Dumps
Finish: Natural
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Heat Shield Included: No
Inlet Type: Flanged
Main Piping Diameter: 2.5
Mount Type: Uses Factory Hangers
Mounting Bracket Included: No
Muffler (Left) Body Height: 4.5
Muffler (Left) Body Length: 11
Muffler (Left) Body Width: 4.5
Muffler (Left) Type: Chambered
Muffler (Right) Body Height: 4.5
Muffler (Right) Body Length: 11
Muffler (Right) Body Width: 4.5
Muffler (Right) Type: Chambered
Muffler Body Diameter: 4.5
Muffler Body Height: 4.5
Muffler Body Length: 11
Muffler Body Material: 304 Stainless Steel
Muffler Body Shape: Round
Muffler Body Width: 4.5
Muffler Finish: Natural
Muffler Flanged Inlet: Yes
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Loose Flange
Muffler Inlet Inside Diameter: 2.5
Muffler Inlet Outside Diameter: 2.63
Muffler Outlet Connection: Slip-Fit
Muffler Outlet Diameter: 2.5
Muffler Outlet Quantity: 1
Muffler Part Number: Kit Only
Muffler Quantity: 2
Muffler Series: Outlaw
Muffler Type: Chambered
Pipe Color: Silver
Pipe Material: 409 Stainless Steel
Sound Level: Aggressive
Spring Bolt Kit Included: No
Tail Pipe Outlet Outside Diameter: 2.5
Tail Pipe Quantity: 2
Tail Pipe Tapered Outlet: No
Type: Cat-Back
Valve Included: No
Valve Type: Not Applicable
Part Number: 817682
Applications:
- 1986-1995 Ford Mustang 302 CID
- 1996-2004 Ford Mustang 281 CID
Emissions:
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
