Overview:

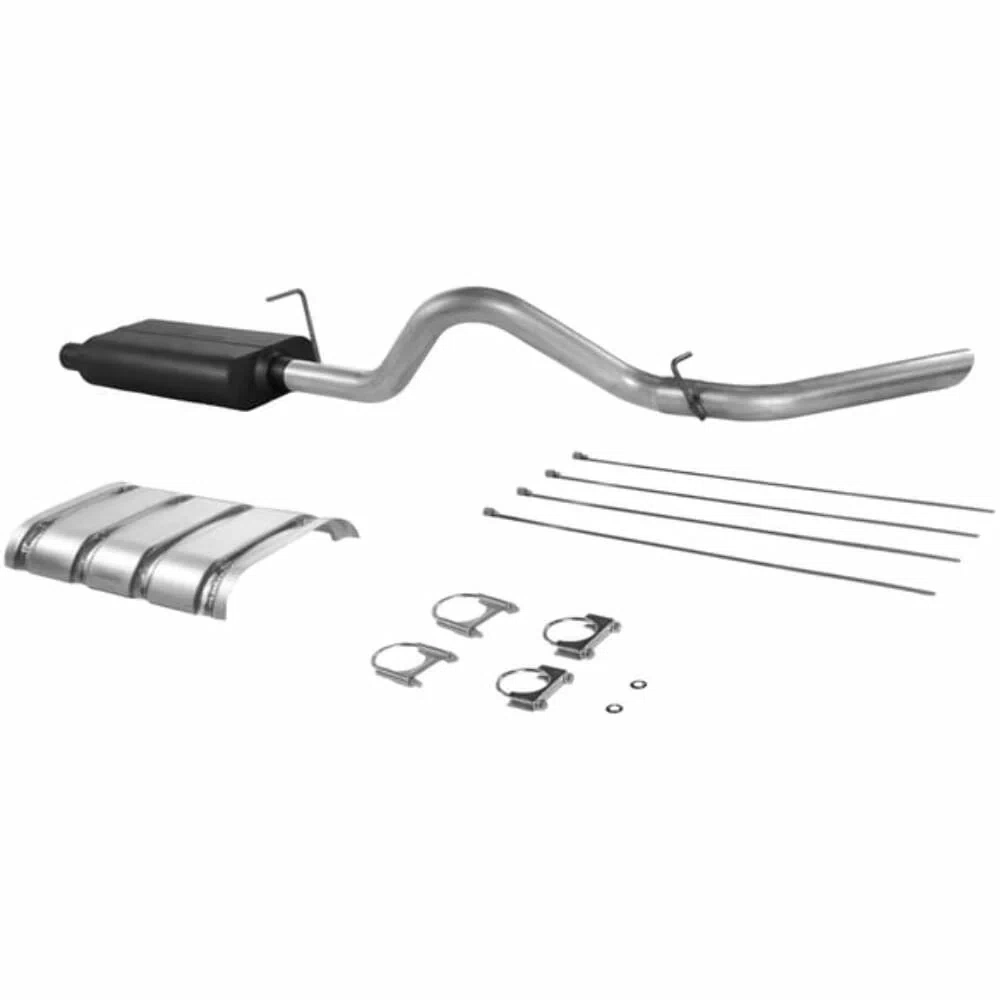

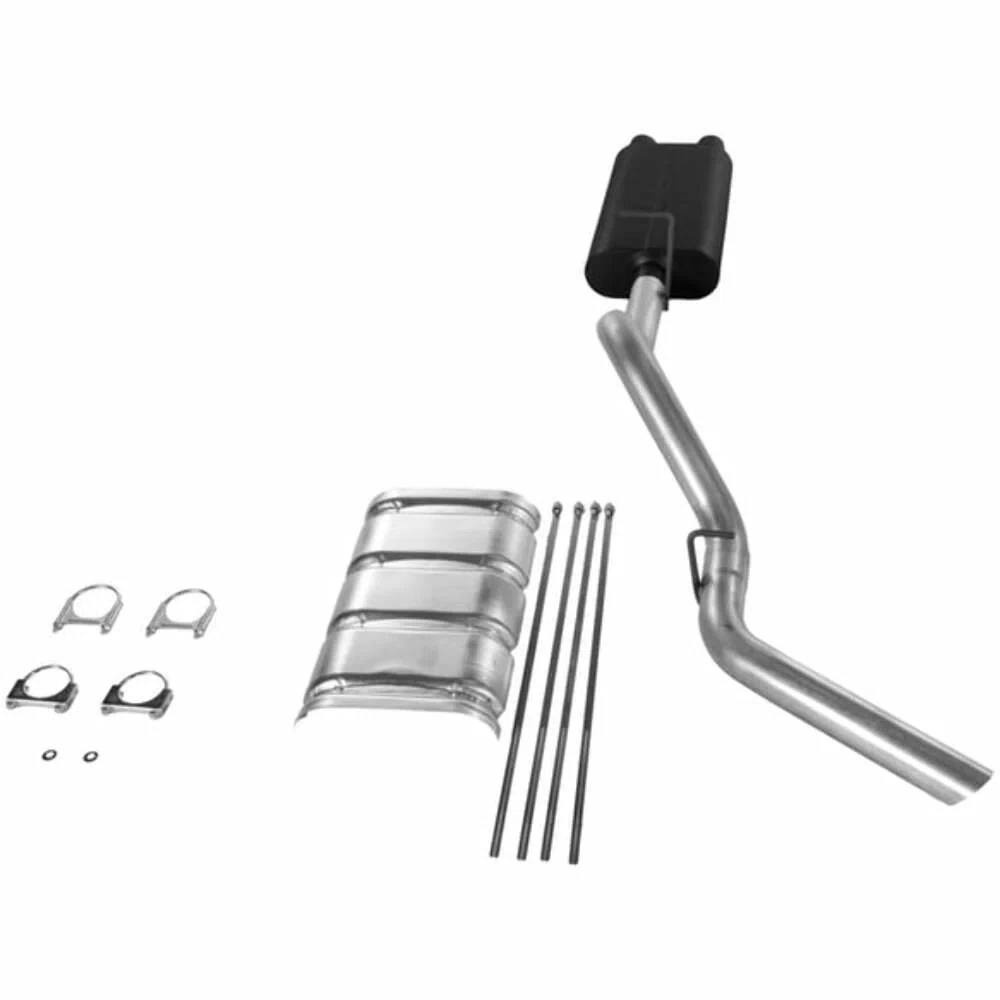

This Flowmaster American Thunder® cat-back exhaust system is custom designed for 1996-1999 Chevrolet Silverado and GMC Sierra 2500/3500 trucks with the 5.7L and 7.4L engine is perfect for the person looking for a moderate sound level inside and outside of the truck, with all of the performance benefits that expect from Flowmaster®. This bolt-on emissions-legal system features a dual 3.00-inch inlet 50 Series Big Block™ muffler for a deep powerful tone and includes an aluminum heat shield and stainless steel clamps. The single 3.00-inch aluminized steel mandrel-bent tailpipe uses the factory hanger locations and is finished off with a turndown style tip that exits behind the right rear wheel which is ideal for towing. The exhaust system is covered by our 3-year Limited Warranty and includes all necessary parts and hardware for a quick and easy installation you can do at home. Notes: Fits 2/4 wheel drive extended cab/long bed configuration and Crew Cab Dually. Fits 155-inch and 168-inch wheel bases.
Features:
Includes Hangers and Hardware for an Easy Installation
Mandrel-bent 16-gauge Aluminized Steel Tubing
70 Series Big Block II Performance Muffler
Mild to Moderate Exterior Exhaust Tone
Dyno Tuned for Maximum Performance
Uses the Factory Hanger Locations
Brushed Stainless Steel Tip
3-year Limited Warranty
Easy Installation
Specs:
Brand: Flowmaster
CARB (California) Compliant: Yes
Catalytic Converter Included: No
Catalytic Converter Quantity: 0
Clamping Type: U-Bolt
Clamps Included: Yes
Emission Code: 5
Exhaust Series: American Thunder
Exhaust Tip Quantity: 0
Exit Style: Single Out Side
Finish: Aluminized
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Heat Shield Included: No
Inlet Diameter: 2.75
Inlet Type: Clamp-On
Main Piping Diameter: 3
Mounting Bracket Included: No
Muffler Body Height: 5
Muffler Body Length: 22.25
Muffler Body Material: Aluminized Steel
Muffler Body Shape: Oval
Muffler Body Width: 12
Muffler Finish: Black High-Temperature Paint Finish
Muffler Flanged Inlet: No
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Slip-Fit
Muffler Inlet Inside Diameter: 3
Muffler Inlet Location: Dual
Muffler Inlet Outside Diameter: 3.13
Muffler Outlet Connection: Slip-Fit
Muffler Outlet Quantity: 1
Muffler Part Number: Kit Only
Muffler Quantity: 1
Muffler Series: 50 Series Big Block
Muffler Type: Chambered
Pipe Color: Silver
Pipe Material: Aluminized Steel
Sound Level: Moderate
Spring Bolt Kit Included: No
Tail Pipe Outlet Outside Diameter: 3
Tail Pipe Quantity: 1
Tail Pipe Tapered Outlet: No
Type: Cat-Back
Valve Included: No
Valve Type: Not Applicable
Part Number: 17224
Applications:
- 1996-1999 Chevrolet C2500 350 CID
- 1996-1999 Chevrolet C2500 454 CID
- 1996-1999 Chevrolet C3500 454 CID
- 1996-1999 Chevrolet C3500 350 CID
- 1996-1999 Chevrolet K2500 350 CID
- 1996-1999 Chevrolet K2500 454 CID
- 1996-1999 Chevrolet K3500 454 CID
- 1996-1999 Chevrolet K3500 350 CID
- 1996-1999 GMC C2500 454 CID
- 1996-1998 GMC C2500 350 CID
- 1996-1997 GMC C3500 350 CID
- 1996-1997 GMC C3500 454 CID
- 1996-1997 GMC K2500 350 CID
- 1996-1997 GMC K2500 454 CID
- 1996-1997 GMC K3500 454 CID
- 1996-1997 GMC K3500 350 CID
Emissions:
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
