Overview:

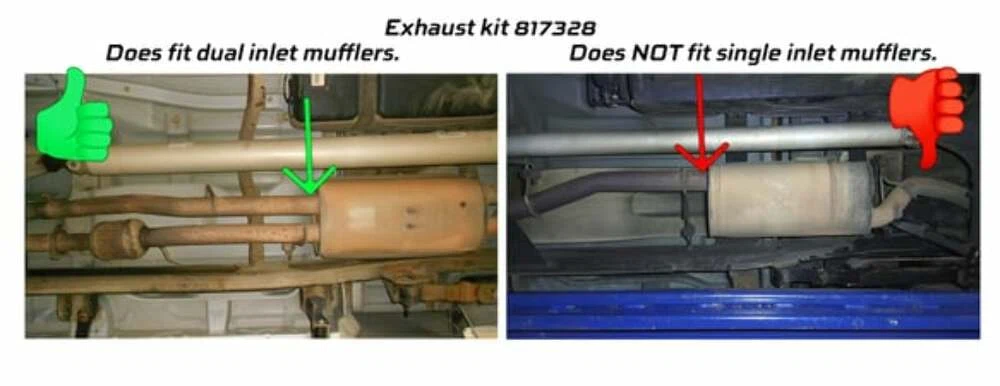

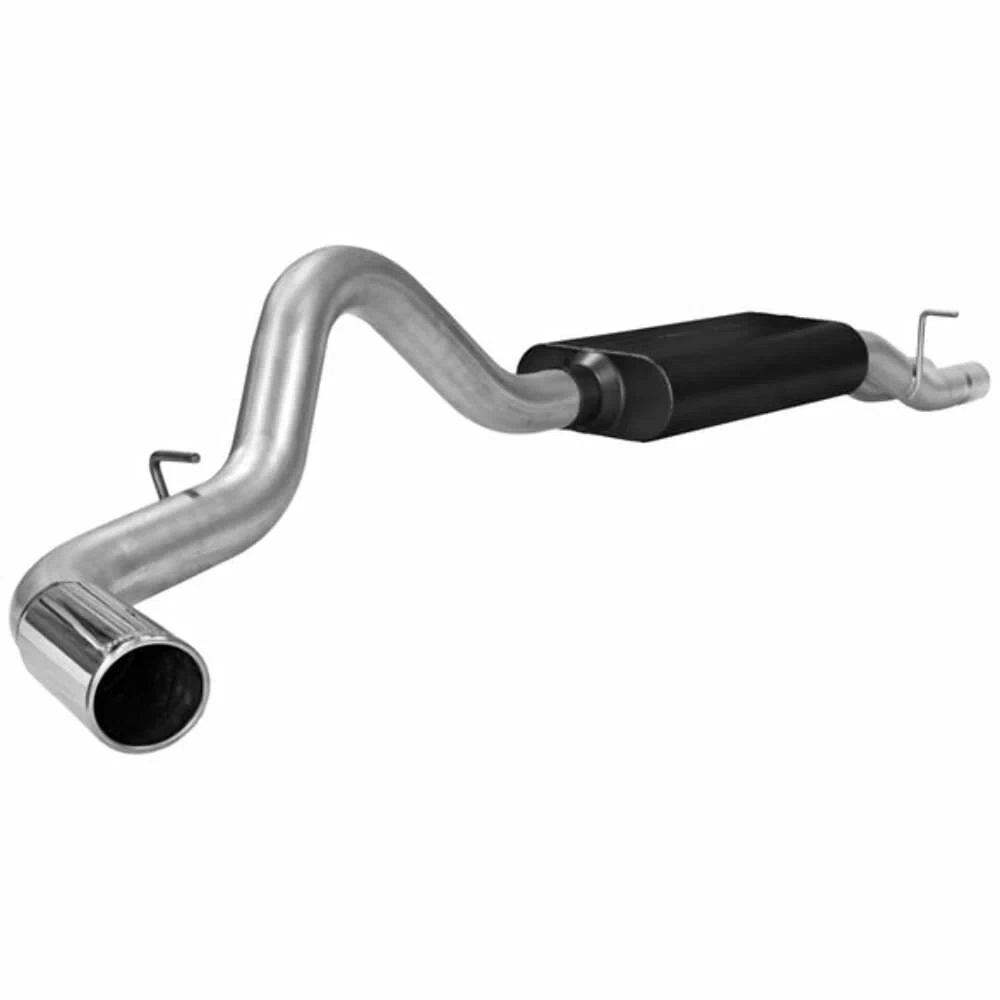

For the person who wants a subtle custom appearance with all the benefits that a Flowmaster Cat-back exhaust system provides. This American Thunder system for the 2001-2006 (2007 Classic) Chevrolet Silverado, GMC Sierra 2500HD/3500HD with 6.0L or 8.1L engine with dual inlet muffler, delivers a moderate interior tone with a deep powerful exterior tone and is suited to the enthusiast who wants their performance to be heard. The system attaches to the back of the catalytic converter with a dual inlet 50 Series Big Block muffler for a deep powerful sound without being obnoxious. Includes a large custom formed aluminum heat shield with stainless clamps and easily attaches directly to the muffler body. The custom bent 3.50-inch 409 stainless steel tailpipe uses the factory hanger locations for an easy installation and exits out behind the right side rear wheel which is ideal for towing. The tailpipe is finished off with a large 4.00-inch polished 304 stainless steel tip embossed with the Flowmaster logo. Like all Flowmaster systems, the benefits include improved throttle response, power and mileage. Designed for an easy fit, these systems include all necessary parts, hardware and easy to follow instructions for a trouble free installation. Covered by Flowmaster’s Lifetime Limited Warranty.
Features:
Large 4.00-inch Black Ceramic Coated Stainless Steel Tips
80 Series Cross-flow Performance Muffler
Moderate Exterior Performance Tone
Uses the Factory Hanger Locations
Minimal Interior Resonance
Quick and Easy Installation
Lifetime Limited Warranty
Specs:
Brand: Flowmaster
CARB (California) Compliant: Yes
Catalytic Converter Included: No
Catalytic Converter Quantity: 0
Clamping Type: Flat Band
Clamps Included: Yes
Emission Code: 5
Exhaust Series: American Thunder
Exhaust Tip Color: Silver
Exhaust Tip Connection: Welded
Exhaust Tip Cut: Angled
Exhaust Tip Edge: Rolled Edge Angle Cut
Exhaust Tip Finish: Polished
Exhaust Tip Material: 304 Stainless Steel
Exhaust Tip Quantity: 1
Exhaust Tip Shape: Round
Exhaust Tip Wall: Single Wall
Exit Style: Single Out Side
Finish: Natural
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Heat Shield Included: No
Inlet Diameter: 3
Inlet Type: Clamp-On
Main Piping Diameter: 3.5
Mounting Bracket Included: No
Muffler Body Height: 5
Muffler Body Length: 22
Muffler Body Material: 409 Stainless Steel
Muffler Body Shape: Oval
Muffler Body Width: 12
Muffler Finish: Black High-Temperature Paint Finish
Muffler Flanged Inlet: No
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Slip-Fit
Muffler Inlet Inside Diameter: 3
Muffler Inlet Location: Dual
Muffler Inlet Outside Diameter: 3.13
Muffler Outlet Connection: Slip-Fit
Muffler Outlet Quantity: 1
Muffler Part Number: Kit Only
Muffler Quantity: 1
Muffler Series: 50 Series Big Block
Muffler Type: Chambered
Pipe Color: Silver
Pipe Material: 409 Stainless Steel
Sound Level: Aggressive
Spring Bolt Kit Included: No
Tail Pipe Outlet Outside Diameter: 3.5
Tail Pipe Quantity: 1
Tail Pipe Tapered Outlet: No
Type: Cat-Back
Valve Included: No
Valve Type: Not Applicable
Part Number: 817328
Applications:
- 2007-2007 Chevrolet Silverado 2500 HD Classic 364 CID
- 2007-2007 Chevrolet Silverado 2500 HD Classic 496 CID
- 2007-2007 Chevrolet Silverado 3500 Classic 496 CID
- 2007-2007 Chevrolet Silverado 3500 Classic 364 CID
- 2001-2006 Chevrolet Silverado 2500 HD 496 CID
- 2001-2006 Chevrolet Silverado 2500 HD 364 CID
- 2001-2006 Chevrolet Silverado 3500 364 CID
- 2001-2006 Chevrolet Silverado 3500 496 CID
- 2007-2007 GMC Sierra 2500 HD Classic 496 CID
- 2007-2007 GMC Sierra 2500 HD Classic 364 CID
- 2007-2007 GMC Sierra 3500 Classic 364 CID
- 2007-2007 GMC Sierra 3500 Classic 496 CID
- 2001-2006 GMC Sierra 2500 HD 496 CID
- 2001-2006 GMC Sierra 2500 HD 364 CID
- 2001-2006 GMC Sierra 3500 364 CID
- 2001-2006 GMC Sierra 3500 496 CID
Emissions:
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
