Overview:

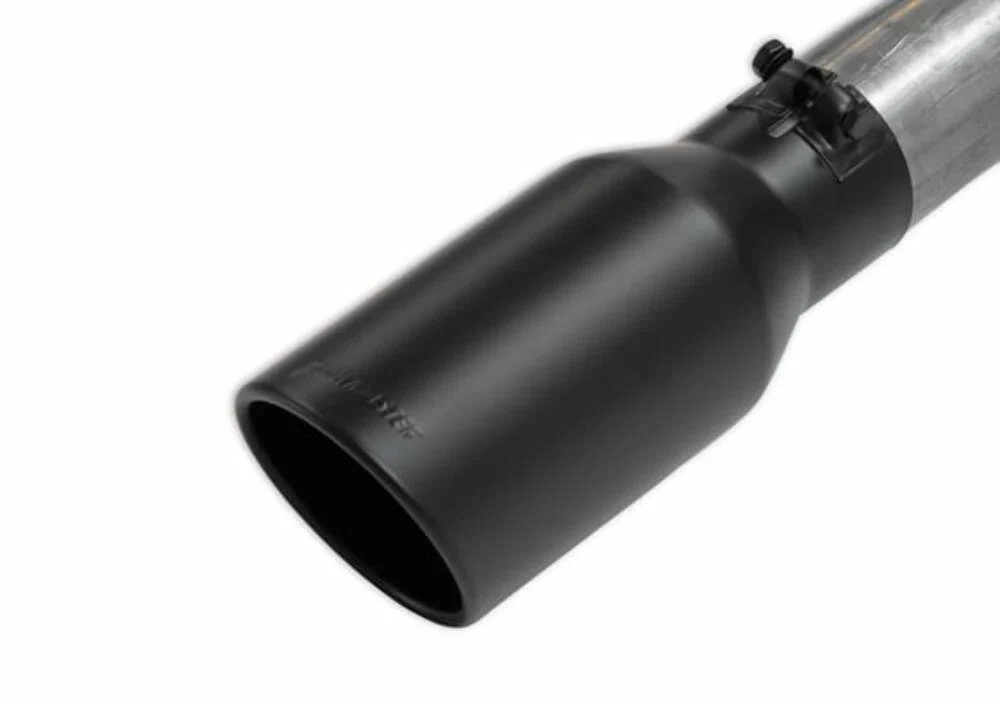

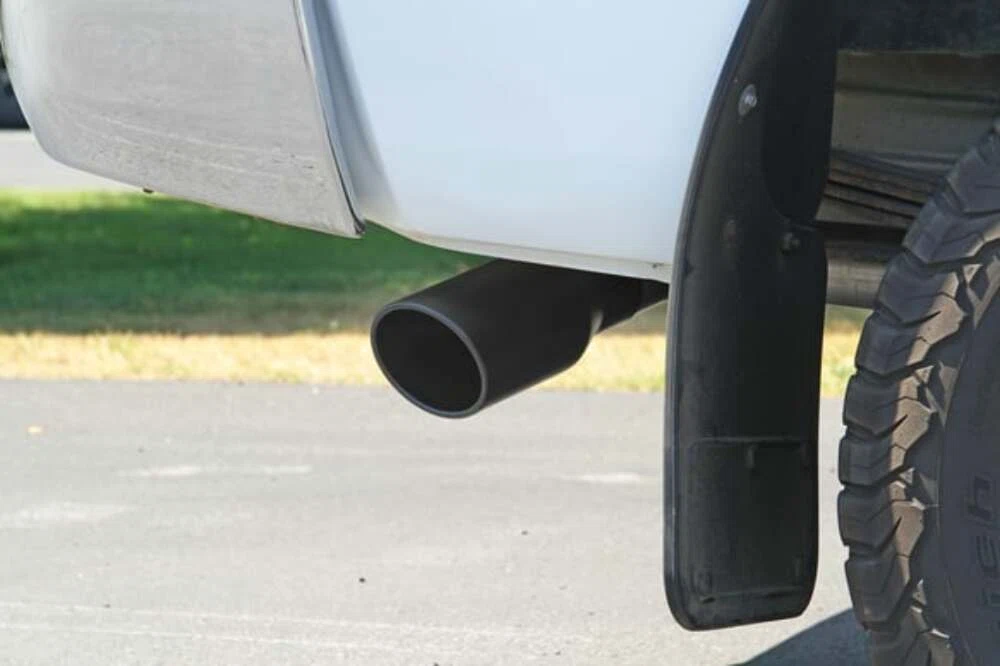

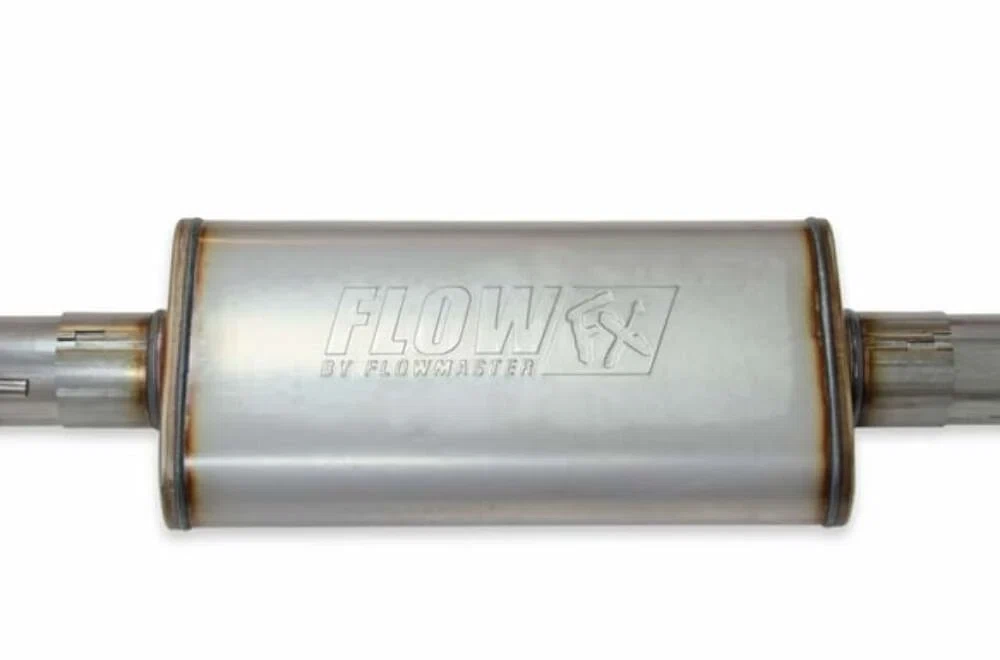

Introducing the new Flow FX Cat-back exhaust system for 2003-2012 Dodge Ram/RAM 2500/3500 trucks and 2006-2008 Dodge Ram 1500 Mega Cab trucks with the 5.7L Hemi engine. This stainless steel performance exhaust system starts with a large 3-inch mandrel-bent tube flowing into the Flow FX “straight-through” performance muffler. The mandrel-bent tailpipe exits behind the passenger side rear tire and is finished off with a large 4.50-inch black ceramic coated exhaust tip embossed with the Flowmaster name. This system creates a deep powerful sound outside the vehicle with a moderate tone inside the cab and utilizes the factory hanger locations. Includes all necessary parts, hardware and detailed instructions for an easy installation you can do at home. Notes: Fits all 2/4 wheel drives and all wheelbases.
Features:
Includes Hangers and Hardware for an Easy Installation
Large 3.50-inch Polished 304 Stainless Steel Tip
Mandrel-bent 16-gauge Aluminized Steel Tubing
50 Series Big Block Performance Muffler
Dyno Tuned for Maximum Performance
Mild-Moderate Exterior Exhaust Tone
Uses the Factory Hanger Locations
Quick and Easy Installation
3-year Limited Warranty
Minimal Interior Sound
Specs:
Brand: Flowmaster
CARB (California) Compliant: Yes
Catalytic Converter Included: No
Catalytic Converter Quantity: 0
Clamping Type: Flat Band
Clamps Included: Yes
Emission Code: 5
Exhaust Series: Flow FX
Exhaust Tip Color: Black
Exhaust Tip Connection: Clamp-On
Exhaust Tip Cut: Angled
Exhaust Tip Edge: Rolled Edge
Exhaust Tip Finish: Black Ceramic Coating
Exhaust Tip Material: 304 Stainless Steel
Exhaust Tip Quantity: 1
Exhaust Tip Shape: Round
Exhaust Tip Wall: Single Wall
Exit Style: Single Out Side
Finish: Natural
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Heat Shield Included: No
Inlet Type: Clamp-On
Main Piping Diameter: 3
Mounting Bracket Included: No
Muffler Body Height: 4
Muffler Body Length: 18
Muffler Body Material: 409 Stainless Steel
Muffler Body Shape: Oval
Muffler Body Width: 9
Muffler Color: Silver
Muffler Finish: Natural
Muffler Flanged Inlet: No
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Slip-Fit
Muffler Inlet Inside Diameter: 3
Muffler Inlet Outside Diameter: 3.13
Muffler Outlet Connection: Slip-Fit
Muffler Outlet Diameter: 3
Muffler Outlet Quantity: 1
Muffler Overall Length: 24
Muffler Part Number: Kit Only
Muffler Quantity: 1
Muffler Series: Flow FX
Muffler Type: Absorption
Pipe Color: Silver
Pipe Material: 409 Stainless Steel
Sound Level: Moderate
Spring Bolt Kit Included: No
Tail Pipe Outlet Outside Diameter: 3
Tail Pipe Quantity: Single
Tail Pipe Tapered Outlet: No
Tip Logo: Embossed
Type: Cat-Back
Valve Included: No
Valve Type: Not Applicable
Part Number: 717867
Applications:
- 2011-2012 Ram 2500 345 CID
- 2011-2012 Ram 3500 345 CID
- 2006-2008 Dodge Ram 1500 345 CID
- 2003-2010 Dodge Ram 2500 345 CID
- 2003-2009 Dodge Ram 3500 345 CID
Emissions:
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
