Overview:

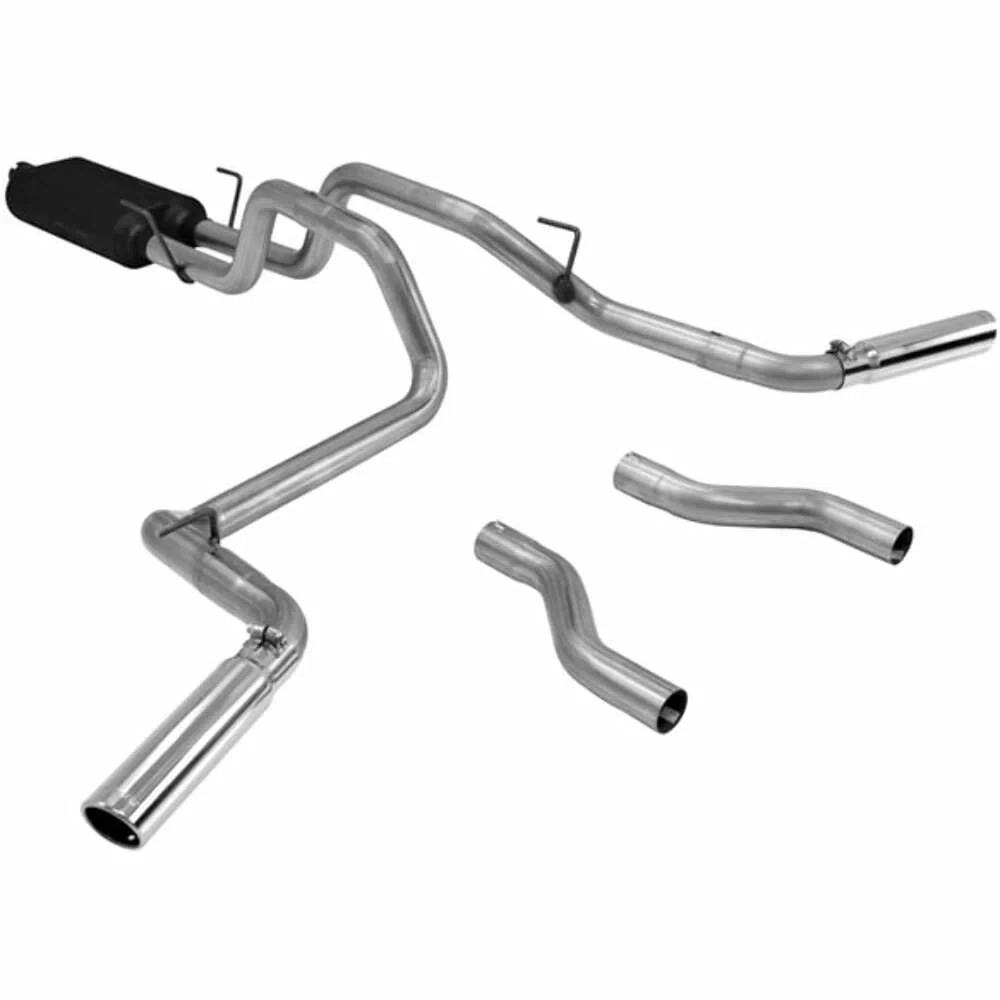

This Flowmaster® American Thunder® Cat-back System is for 2004-2005 Dodge Ram 1500 trucks with 5.7L Hemi engine and all wheelbases. Manufactured using durable 409S stainless steel, the kit features a 2.75-inch to 3.00-inch adapter pipe which flows into the 50 Series HD™ single in/out muffler and into a single 3.00-inch mandrel-bent stainless steel tailpipe. The 3.00-inch tailpipe exits on the passenger side of the vehicle behind the rear tire and is finished off with a 3.50-inch polished stainless steel Flowmaster tip. As an American Thunder system, it provides improved horsepower, mileage and torque along with a deep, moderate sound level on the inside and outside of the vehicle. Instructions and all the necessary hardware are included with the kit for an easy bolt-on installation. Covered by our Lifetime Limited Warranty.
Features:
Outlaw Series Performance Muffler Offers a Deep Powerful Sound and Increased Performance
409 Stainless Steel Construction Delivers Extra Durability and Improved Long-Term Corrosion Resistance
3.0-inch 16-gauge Mandrel Bent Stainless Steel Tubing Helps Maintain Maximum Exhaust Flow for Better Power
Includes all Necessary Hardware for an at Home Installation
Dump Style Exit Allows for Better Ground Clearance When in Extreme Off-Road Conditions
Uses Factory Hanger Locations for Easy Installation
Max Dyno Gains of 6 HP and 9 LB/FT at the Rear Wheels
Lifetime Limited Warranty
Specs:
Brand: Flowmaster
CARB (California) Compliant: Yes
Catalytic Converter Included: No
Catalytic Converter Quantity: 0
Clamping Type: Flat Band
Clamps Included: Yes
Emission Code: 5
Exhaust Series: American Thunder
Exhaust Tip Color: Silver
Exhaust Tip Connection: Clamp-On
Exhaust Tip Cut: Angled
Exhaust Tip Edge: Rolled Edge Angle Cut
Exhaust Tip Finish: Polished
Exhaust Tip Material: 304 Stainless Steel
Exhaust Tip Quantity: 1
Exhaust Tip Shape: Round
Exhaust Tip Wall: Single Wall
Exit Style: Single Out Side
Finish: Natural
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Heat Shield Included: No
Inlet Diameter: 2.75
Inlet Type: Clamp-On
Main Piping Diameter: 3
Mounting Bracket Included: No
Muffler Body Height: 5
Muffler Body Length: 19
Muffler Body Material: 409 Stainless Steel
Muffler Body Shape: Oval
Muffler Body Width: 10
Muffler Finish: Black High-Temperature Paint Finish
Muffler Flanged Inlet: No
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Slip-Fit
Muffler Inlet Inside Diameter: 3
Muffler Inlet Outside Diameter: 3.13
Muffler Outlet Connection: Slip-Fit
Muffler Outlet Quantity: 1
Muffler Part Number: Kit Only
Muffler Quantity: 1
Muffler Series: 50 Series HD
Muffler Type: Chambered
Pipe Color: Silver
Pipe Material: 409 Stainless Steel
Sound Level: Moderate
Spring Bolt Kit Included: No
Tail Pipe Outlet Outside Diameter: 3
Tail Pipe Quantity: 1
Tail Pipe Tapered Outlet: No
Type: Cat-Back
Valve Included: No
Valve Type: Not Applicable
Part Number: 817513
Applications:
- 2004-2005 Dodge Ram 1500 345 CID
Emissions:
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
