Overview:

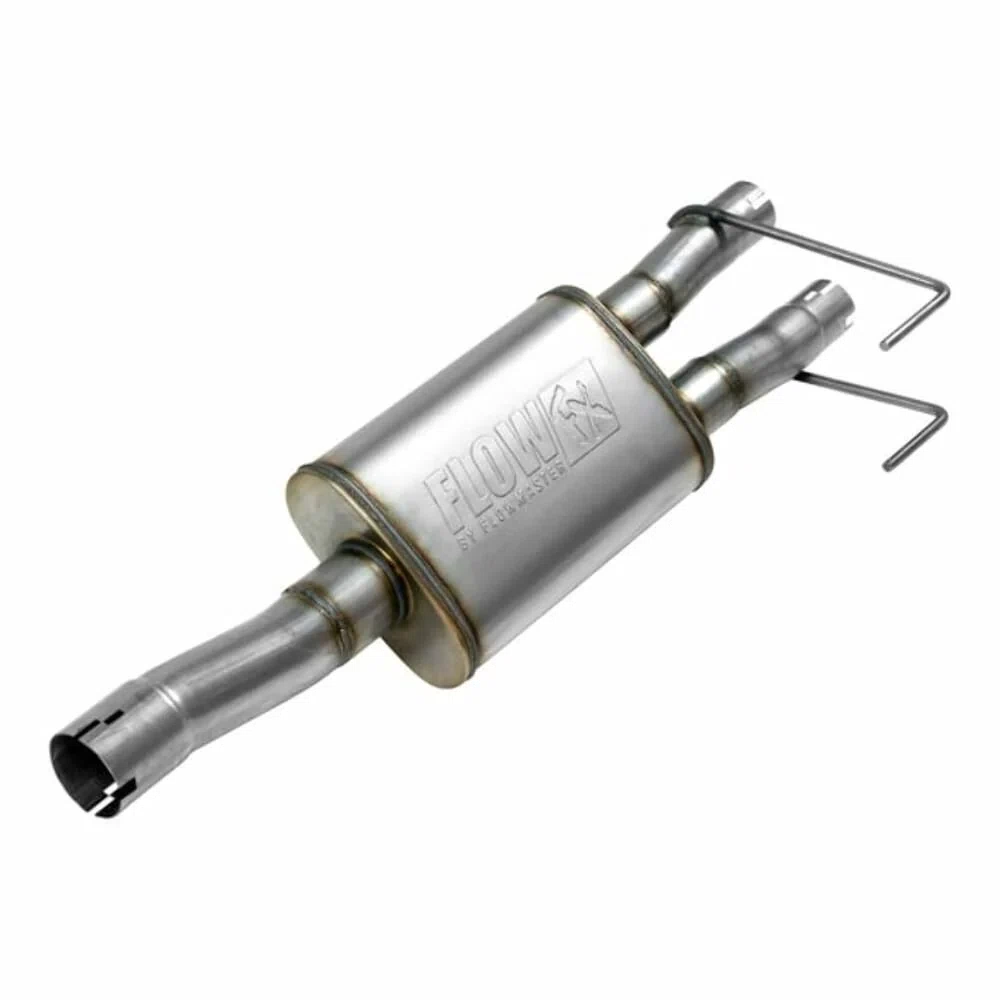

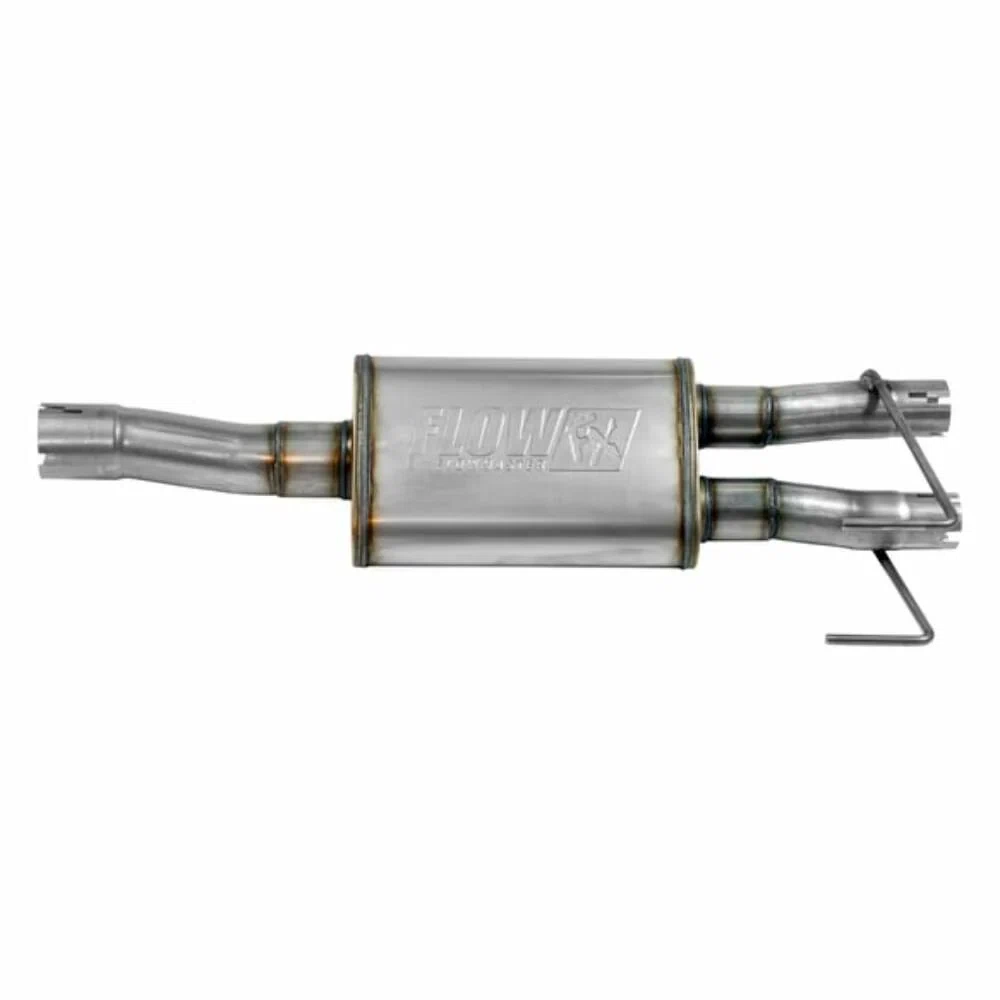

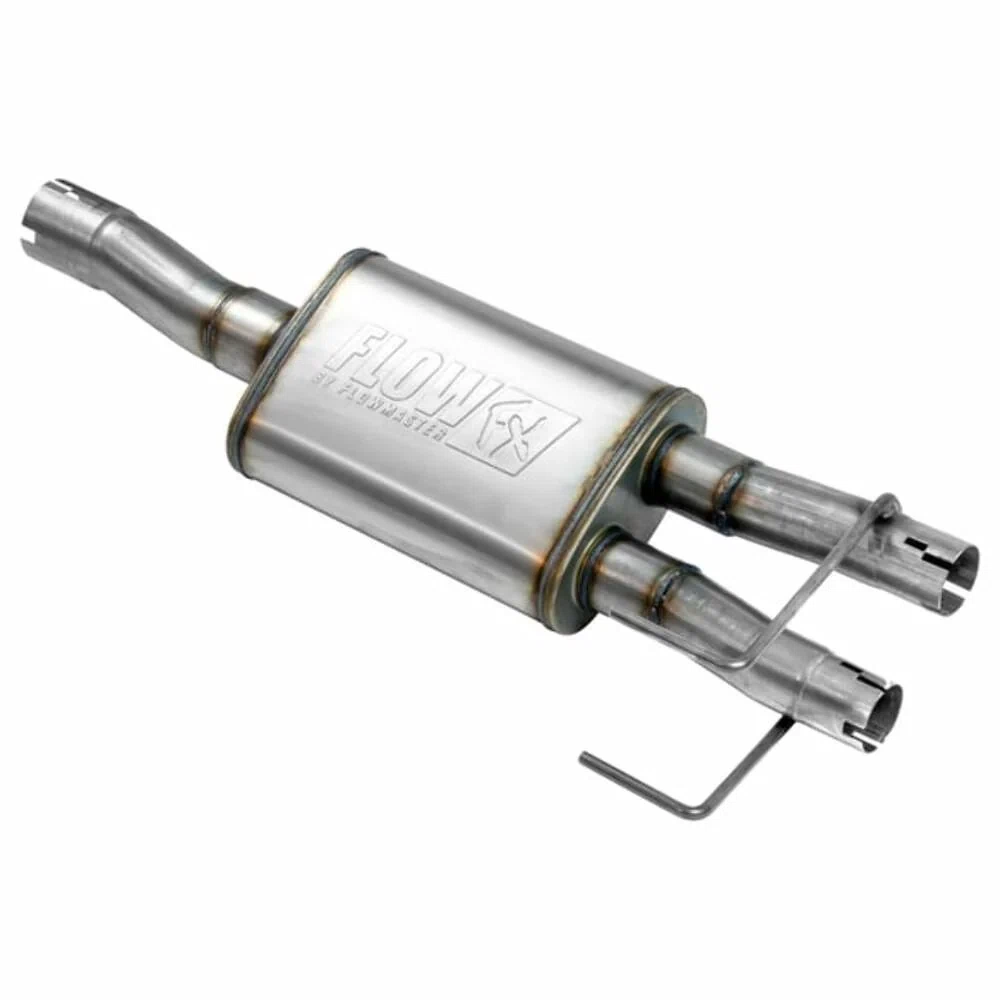

“This Flowmaster® American Thunder® direct-fit muffler fits all 2009-2024* (*Classic body) RAM 1500 trucks equipped with the 5.7L Hemi and factory dual tailpipes. Features include full stainless steel construction, a 3.00-inch mandrel-bent inlet pipe flowing into a 50 Series HD™ muffler with large 4.00-inch internals and a built-in resonator helping keep the interior sound down to a minimum, while still delivering a deep moderate aggressive tone outside the vehicle. The system attaches to the factory hanger locations and includes all necessary hardware for a quick and easy installation that you can do at home. Covered by our Lifetime Limited Warranty.
Features:
Durable Black Ceramic Coating
Large 4.00-inch Angle Cut Exit

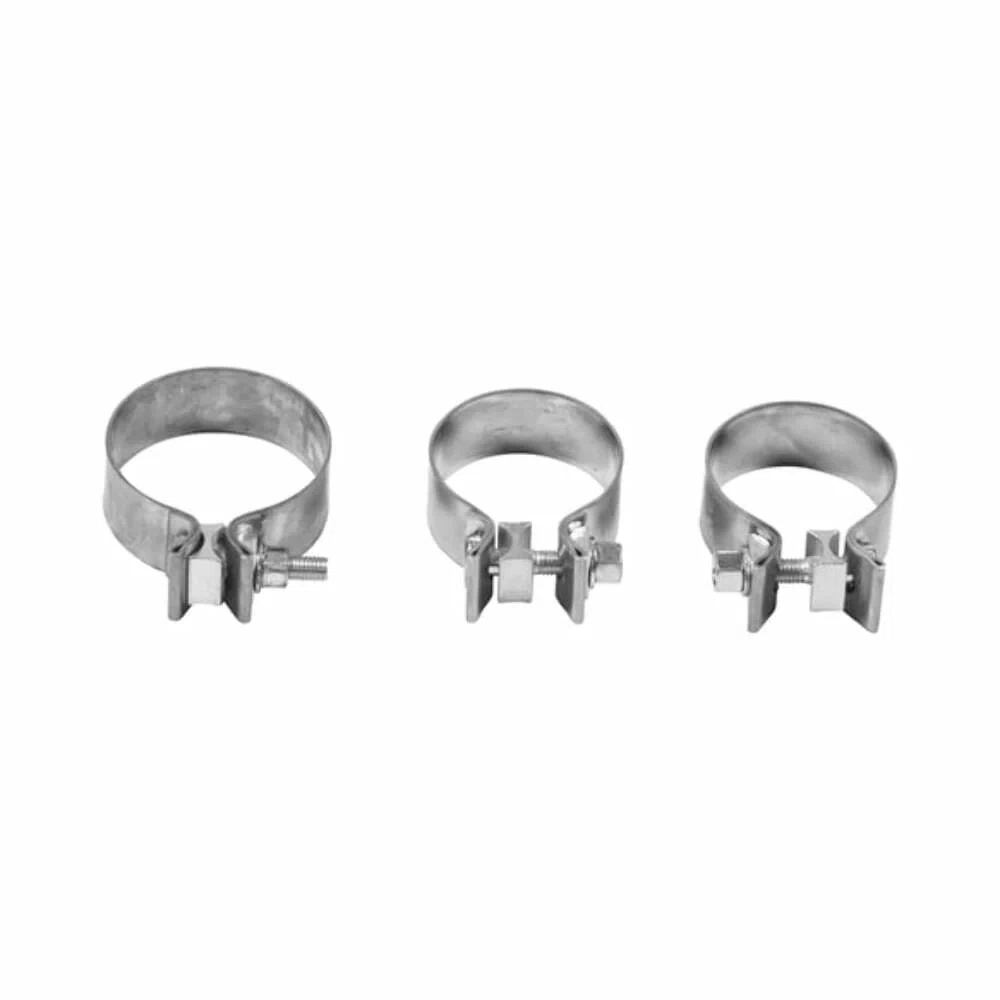

Uses the Factory Clamps
304 Stainless Steel Tips
OE Ball Style Flanges
Sold as a Pair
Specs:
Body Height: 5
Body Length: 18
Body Material: 409 Stainless Steel
Body Width: 10
Brand: Flowmaster
Clamping Type: Flat Band
Clamps Included: No
Emission Code: 5
Exhaust Series: American Thunder
Finish: Natural
Gasket Or Seal Included: No
Grade Type: Performance
Hanger Included: No
Heat Shield: No
Heat Shield Attached: No
Inlet Diameter: 3
Inlet Inside Diameter: 3
Inlet Location: Offset
Inlet Outside Diameter: 3.13
Inlet Quantity: 1
Inlet Type: Slip-Fit
Main Piping Diameter: 3
Material: 409 Stainless Steel
Muffler Material: 409 Stainless Steel
Muffler Quantity: 1
Muffler Series: 50 Series HD
Muffler Shape: Oval
Muffler Type: Chambered
Outlet Diameter: 2.25
Outlet Inside Diameter: 2.25
Outlet Location: Dual
Outlet Outside Diameter: 2.38
Outlet Position: Dual
Outlet Quantity: 2
Outlet Type: Slip-Fit
Sound Level: Aggressive / Moderate
Spring Bolt Kit Included: No
System Type: Direct-Fit Muffler
Tubing Diameter: 3
Part Number: 817568
Applications:
- 2011-2018 Ram 1500 345 CID
- 2019-2024 Ram 1500 Classic 345 CID
- 2009-2010 Dodge Ram 1500 345 CID
Emissions:
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
