Overview:

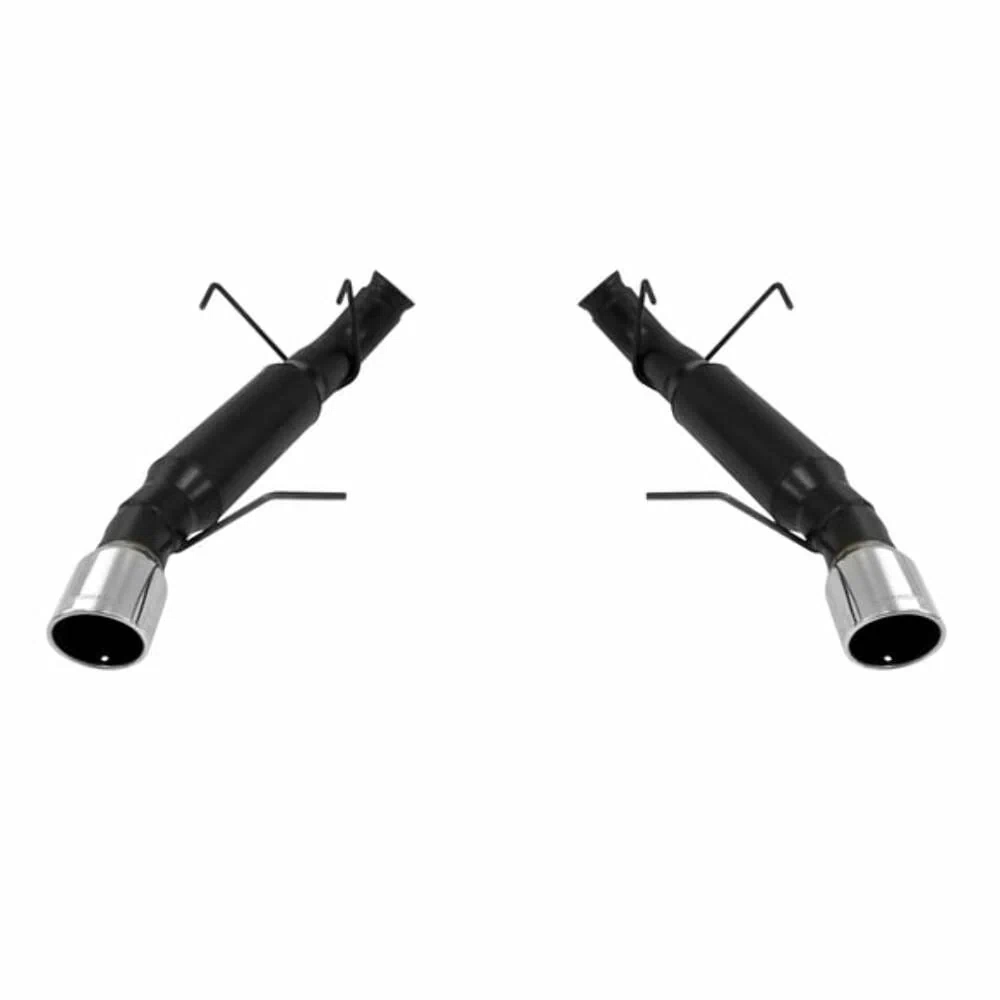

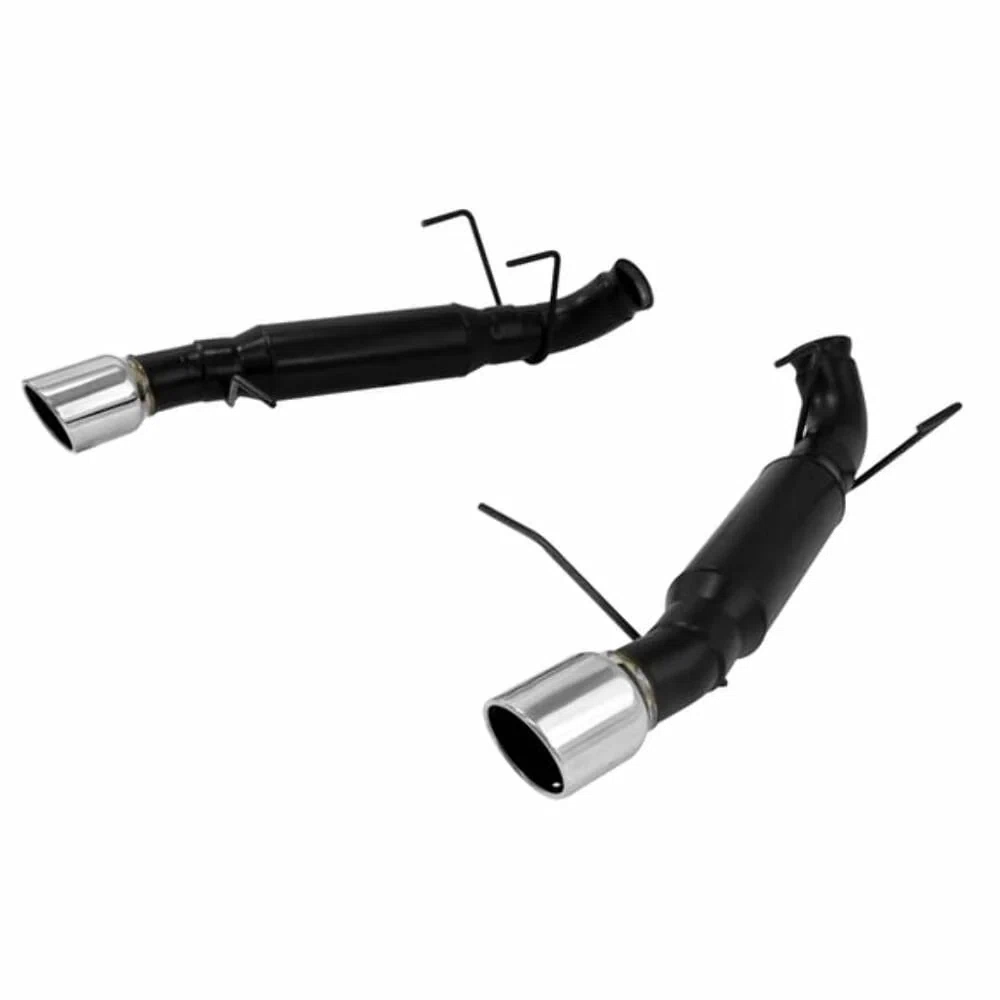

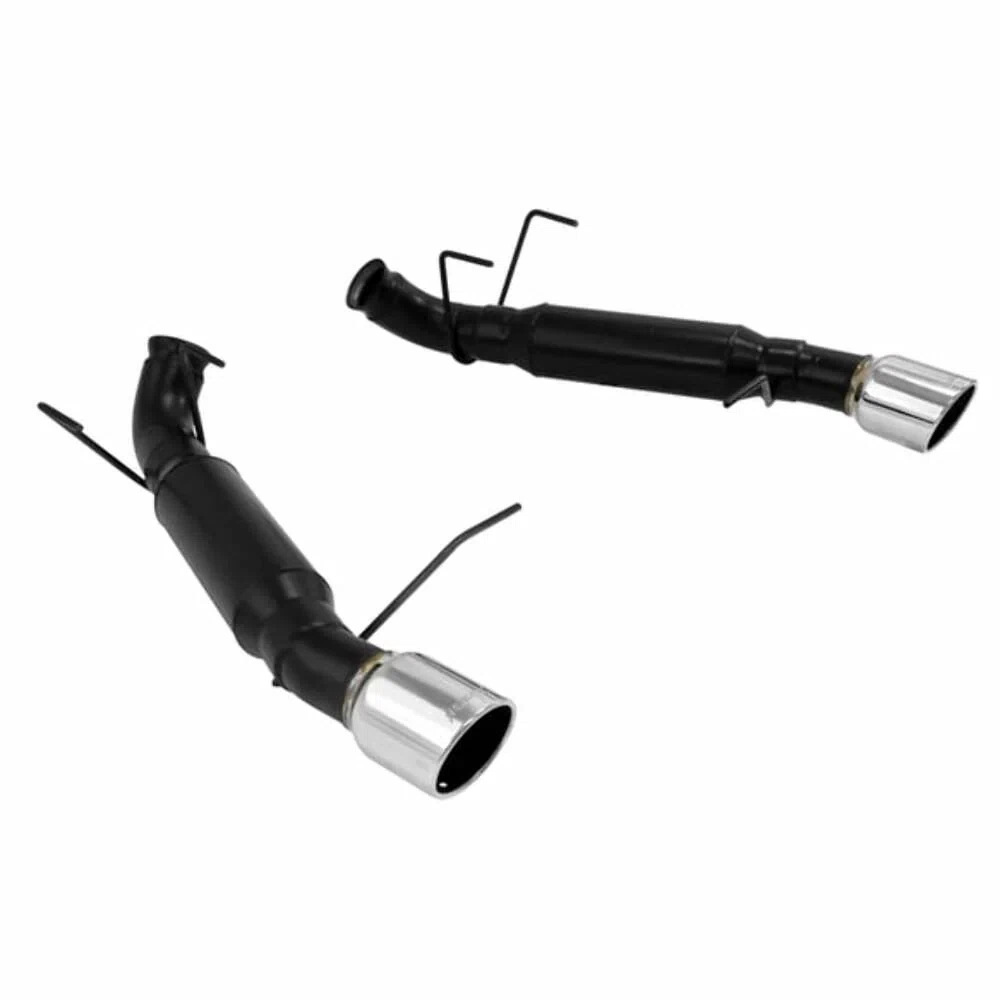

This Outlaw® axle-back exhaust system is specifically designed for 2011-2012 Ford Mustang GT with the 5.0L engine and replaces the original rear mounted mufflers with factory style connections. With easy fit in mind, these 3.00-inch mandrel-bent exhaust systems include a pair of our race-proven Outlaw mufflers for an aggressive exterior and interior sound, and with the maximum amount of power gain possible from an axle-back system. The hangers use the factory locations and the system is finished off with a pair of 4.00-inch polished stainless steel tips embossed with the Flowmaster® name. Designed for an quick and easy installation, these systems include all necessary parts, hardware, detailed instructions and are covered by our Lifetime Limited Warranty. Notes: Also fits 2012 Ford Mustang Boss 302 models.
Features:
Flow FX Series performance muffler offers an aggressive to moderate sound level and increased performance
409 stainless steel construction delivers extra durability and improved long-term corrosion resistance
Max dyno gains of 9 hp and 10 lb-ft at the rear wheels
3.00-inch 16-gauge mandrel bent stainless steel tubing helps maintain maximum exhaust flow for better power
Includes all necessary hardware for an at home installation
Dual 4.00-inch black ceramic-coated tips add a custom look
Uses factory hanger locations for easy installation
Lifetime Limited Warranty
Specs:
Brand: Flowmaster
CARB (California) Compliant: Yes
Catalytic Converter Included: No
Catalytic Converter Quantity: 0
Clamping Type: Flat Band
Clamps Included: Yes
Emission Code: 5
Exhaust Series: Outlaw
Exhaust Tip Color: Silver
Exhaust Tip Connection: Welded
Exhaust Tip Cut: Angled
Exhaust Tip Edge: Rolled Edge Angle Cut
Exhaust Tip Finish: Polished
Exhaust Tip Material: 304 Stainless Steel
Exhaust Tip Quantity: 2
Exhaust Tip Shape: Round
Exhaust Tip Wall: Single Wall
Exit Style: Dual Out Rear
Finish: Natural
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Heat Shield Included: No
Inlet Diameter: 2.75
Inlet Type: Clamp-On
Main Piping Diameter: 3
Mounting Bracket Included: No
Muffler (Left) Body Height: 4
Muffler (Left) Body Length: 10.5
Muffler (Left) Body Width: 4
Muffler (Left) Type: Chambered
Muffler (Right) Body Height: 4
Muffler (Right) Body Length: 10.5
Muffler (Right) Body Width: 4
Muffler (Right) Type: Chambered
Muffler Body Diameter: 4
Muffler Body Height: 4
Muffler Body Length: 16.75
Muffler Body Material: 409 Stainless Steel
Muffler Body Shape: Round
Muffler Body Width: 4
Muffler Finish: Black High-Temperature Paint Finish
Muffler Flanged Inlet: No
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Slip-Fit
Muffler Inlet Inside Diameter: 2.75
Muffler Inlet Outside Diameter: 3
Muffler Outlet Quantity: 1
Muffler Part Number: Kit Only
Muffler Quantity: 2
Muffler Series: Outlaw
Muffler Type: Chambered
Pipe Color: Black
Pipe Material: 409 Stainless Steel
Sound Level: Aggressive
Spring Bolt Kit Included: No
Tail Pipe Outlet Outside Diameter: 3
Tail Pipe Quantity: 2
Tail Pipe Tapered Outlet: No
Type: Axle-back
Valve Included: No
Valve Type: Not Applicable
Part Number: 817516
Applications:
- 2011-2012 Ford Mustang 302 CID
Emissions:
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
