Overview:

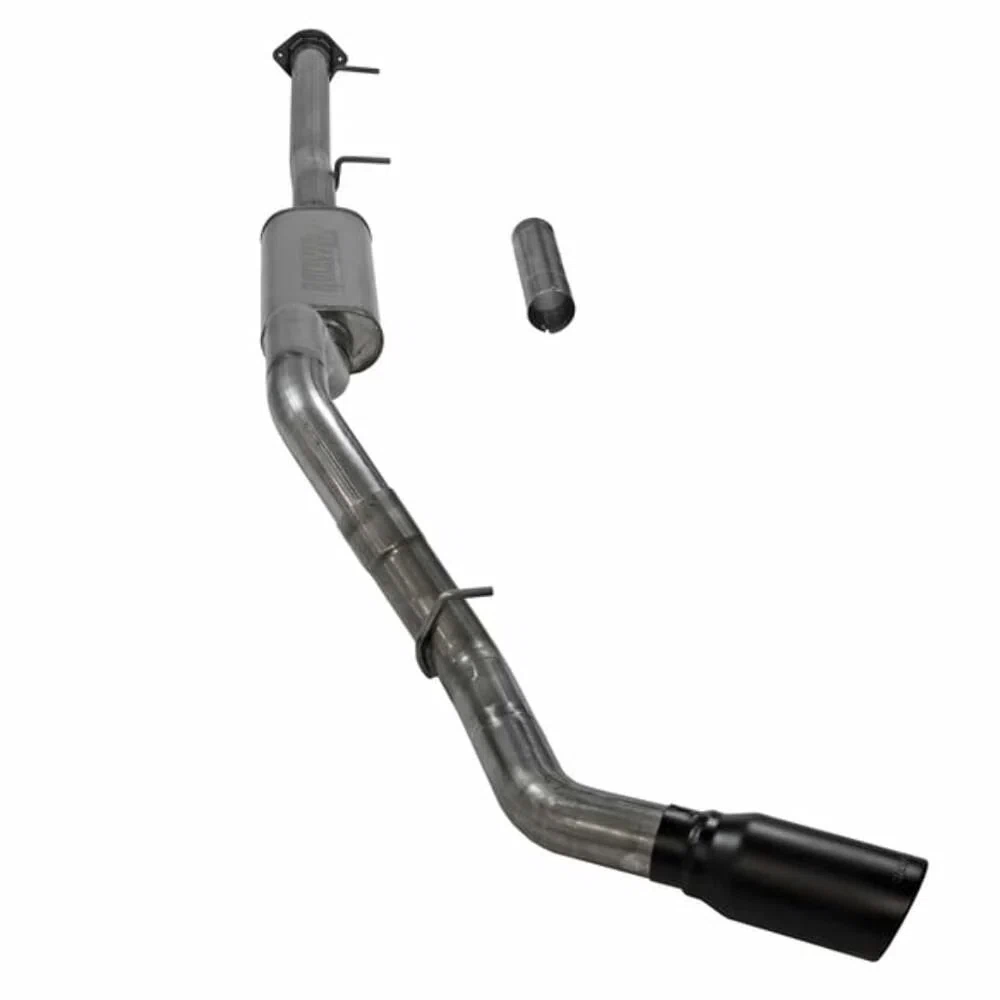

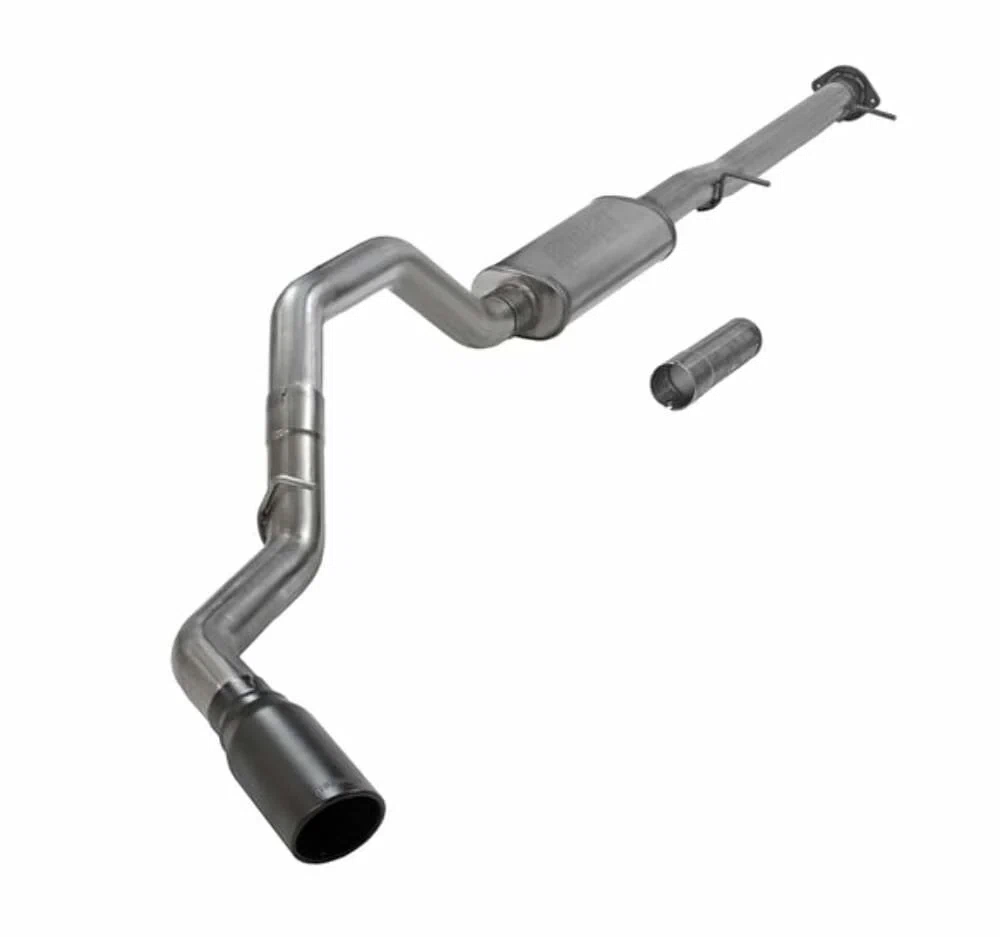

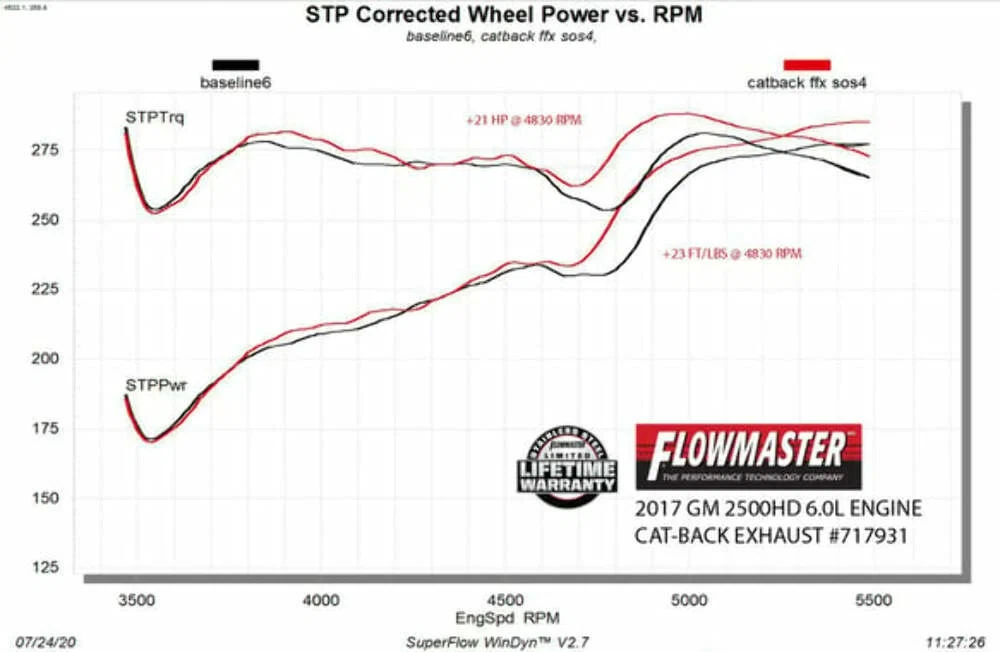

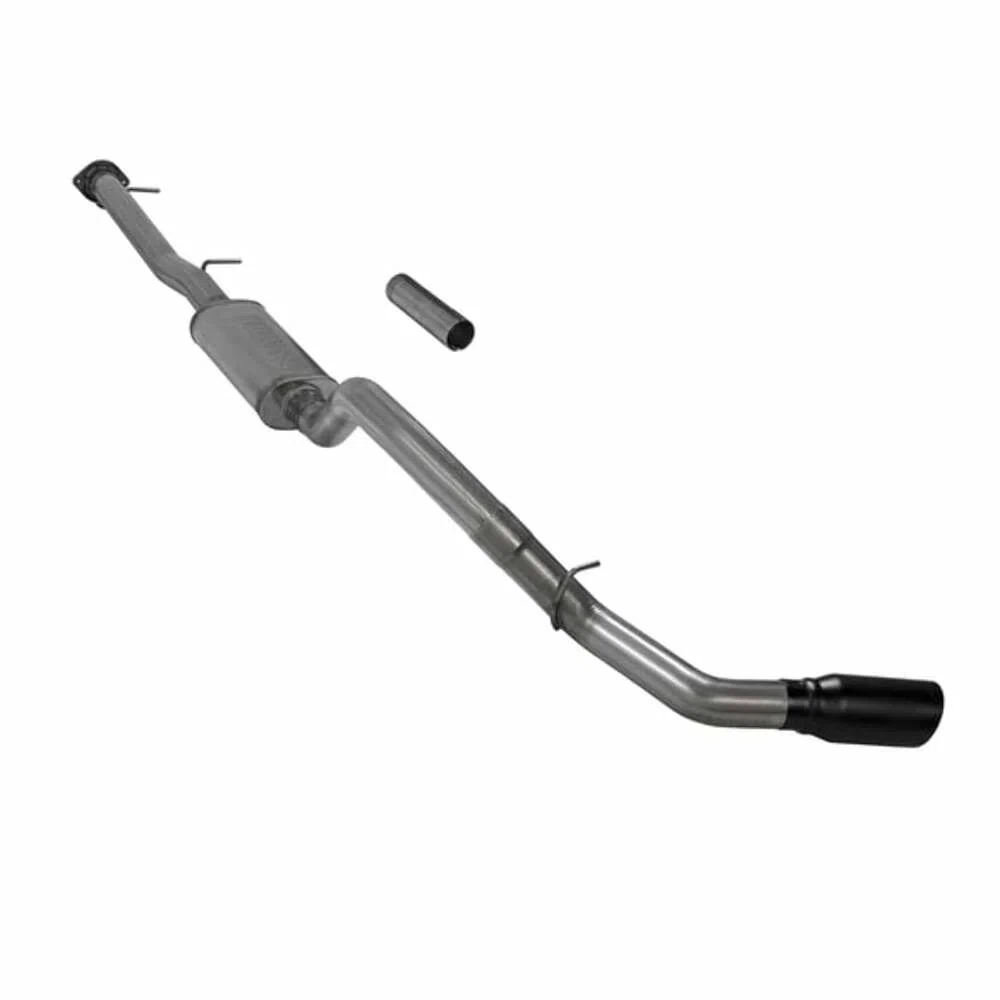

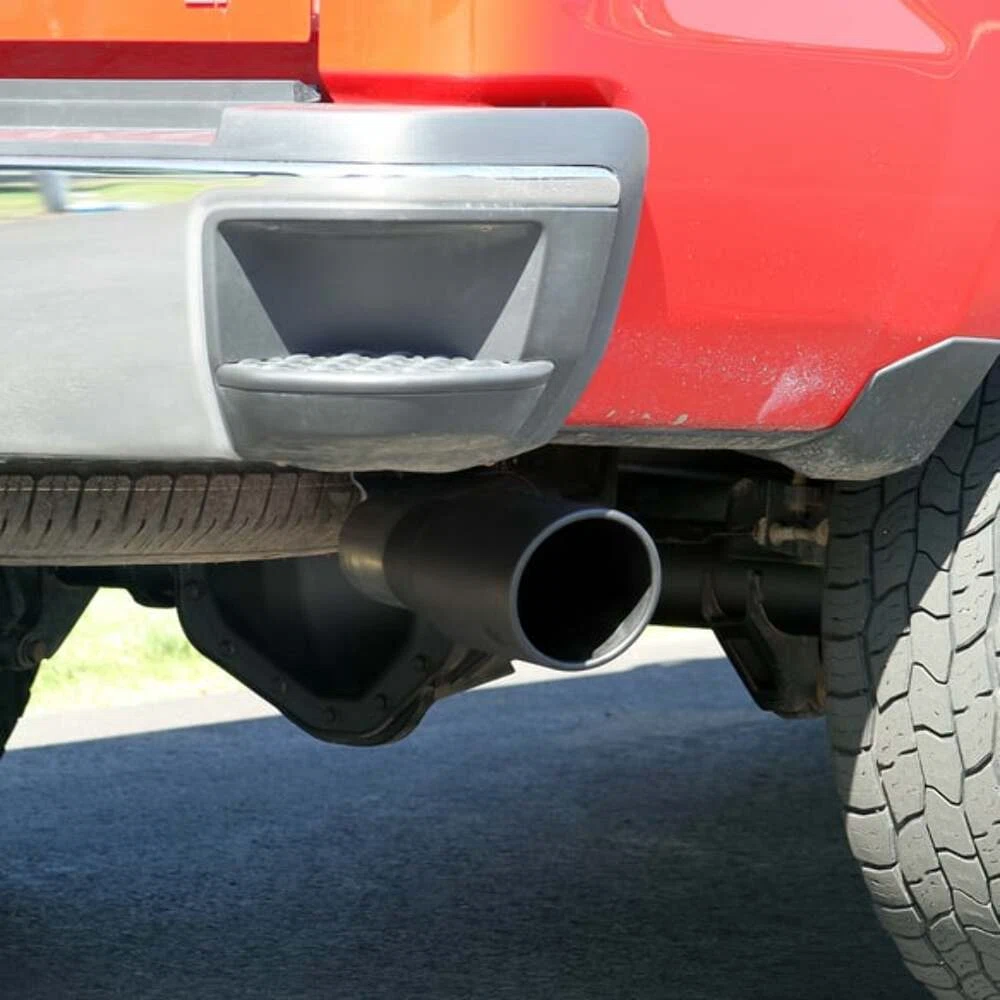

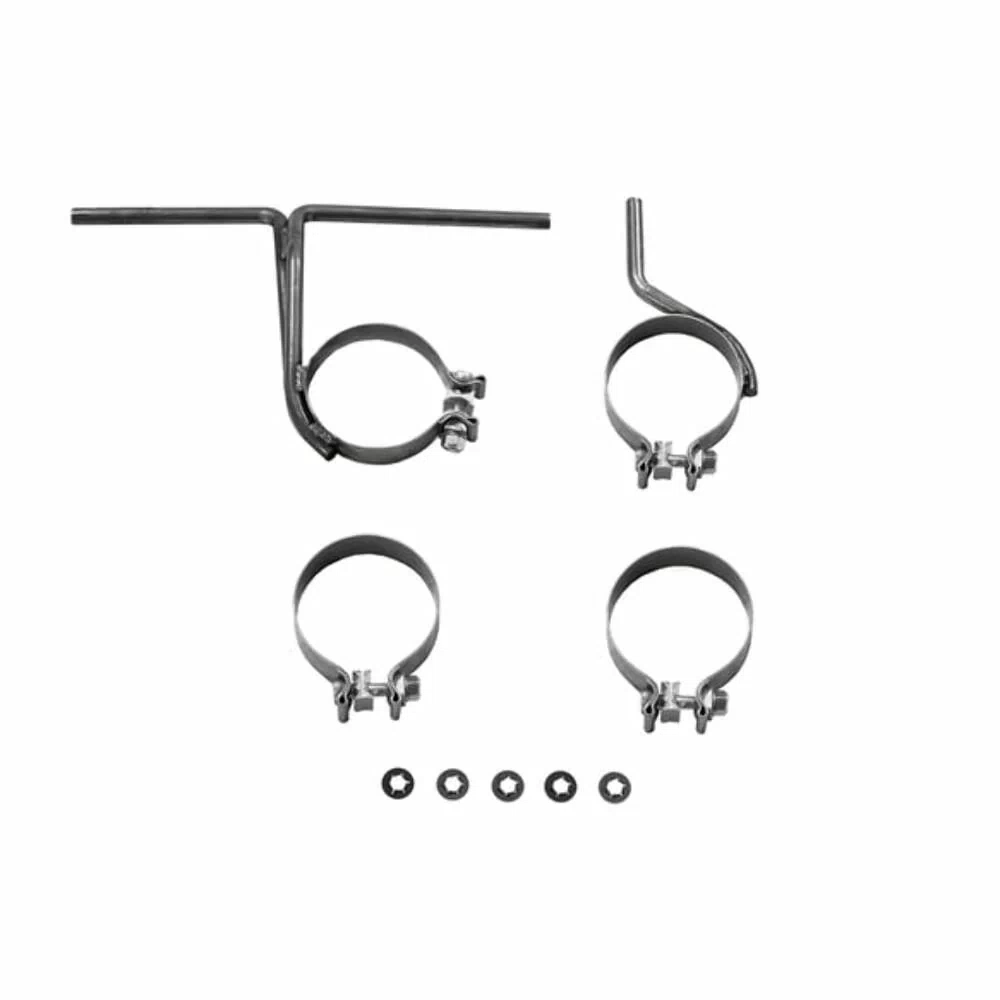

The new Flowmaster® Flow FX® cat-back exhaust system for the 2011-2019 GM Silverado/Sierra 2500/3500 HD trucks with the 6.0-liter engine is manufactured using durable 409 stainless steel throughout and features 3.50-inch mandrel bent pipes for better exhaust gas flow, and a Flow FX “straight-through” muffler is used for a moderate sound level and maximum performance. Maximum increases on the dyno revealed +21 hp and +23 lb-ft at the rear wheels. This system exits out the side, behind the rear wheel with a 5.00-inch black ceramic tip for added style and a custom look. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. This exhaust system was designed for Crew Cab Short Bed trucks with the 6.5-foot bed and is backed by Flowmaster’s Lifetime Limited Warranty.
Features:
• Brushed 304 stainless steel offers maximum corrosion resistance for a cleaner and more high-end appearance.
• TIG welding offers a more precise weld, better heat control and high-end appearance compared to MIG welding.
• Black chrome tips offer a stylish upscale look.
• Signature Series muffler offers an aggressive to moderate performance tone and increased performance over the stock system.
• Installer friendly design allows for an at home installation.
• Dyno proven performance gains you can feel.
• Increased power and torque over the stock exhaust system.
• Brushed appearance removes tooling marks for a cleaner overall look.
Specs:
Brand: Flowmaster
CARB (California) Compliant: Yes
Catalytic Converter Included: No
Catalytic Converter Quantity: 0
Clamping Type: Flat Band
Clamps Included: Yes
Emission Code: 5
Exhaust Series: Flow FX
Exhaust Tip Color: Black
Exhaust Tip Connection: Clamp-On
Exhaust Tip Cut: Angled
Exhaust Tip Edge: Rolled Edge
Exhaust Tip Finish: Black Ceramic Coating
Exhaust Tip Material: 304 Stainless Steel
Exhaust Tip Quantity: 1
Exhaust Tip Shape: Round
Exhaust Tip Wall: Single Wall
Exit Style: Single Out Side
Finish: Natural
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Inlet Type: Flanged
Main Piping Diameter: 3.5
Mount Type: Uses Factory Hangers
Mounting Bracket Included: No
Muffler Body Height: 5
Muffler Body Length: 18
Muffler Body Material: 409 Stainless Steel
Muffler Body Shape: Oval
Muffler Body Width: 8
Muffler Color: Silver
Muffler Finish: Natural
Muffler Flanged Inlet: No
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Slip-Fit
Muffler Inlet Inside Diameter: 3.5
Muffler Inlet Location: Center
Muffler Inlet Outside Diameter: 3.63
Muffler Outlet Connection: Slip-Fit
Muffler Outlet Diameter: 3.5
Muffler Outlet Location: Center
Muffler Outlet Quantity: 1
Muffler Overall Length: 24
Muffler Part Number: Kit Only
Muffler Quantity: 1
Muffler Series: Flow FX
Muffler Type: Absorption
Pipe Color: Silver
Pipe Material: 409 Stainless Steel
Sound Level: Moderate
Spring Bolt Kit Included: No
Tail Pipe Outlet Outside Diameter: 3.5
Tail Pipe Quantity: 1
Tail Pipe Tapered Outlet: No
Tip Logo: Embossed
Type: Cat-Back
Valve Included: No
Valve Type: Not Applicable
Part Number: 717931
Applications:
- 2011-2019 Chevrolet Silverado 2500 HD 364 CID
- 2011-2019 Chevrolet Silverado 3500 HD 364 CID
- 2011-2019 GMC Sierra 2500 HD 364 CID
- 2011-2019 GMC Sierra 3500 HD 364 CID
Emissions:
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
