Overview:

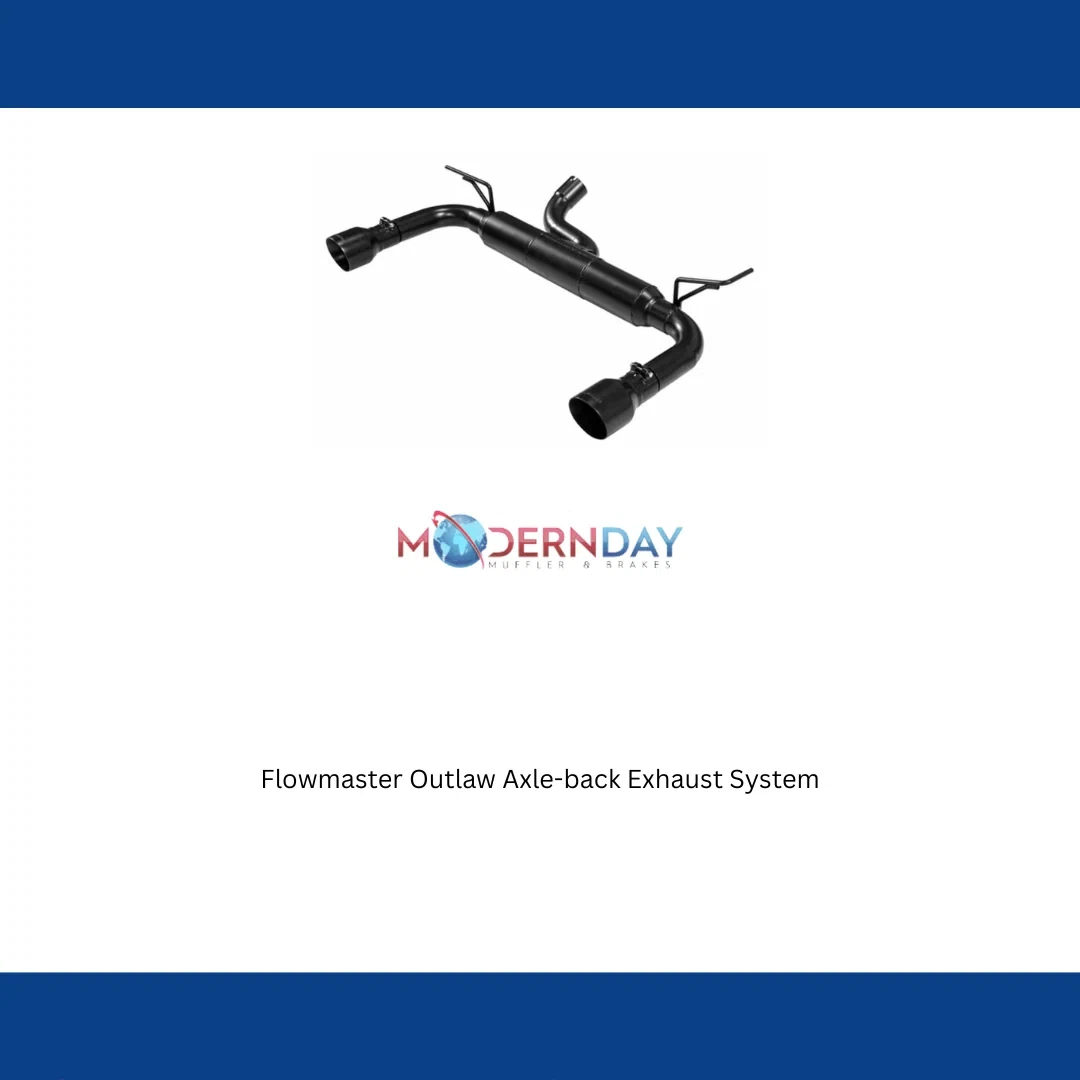

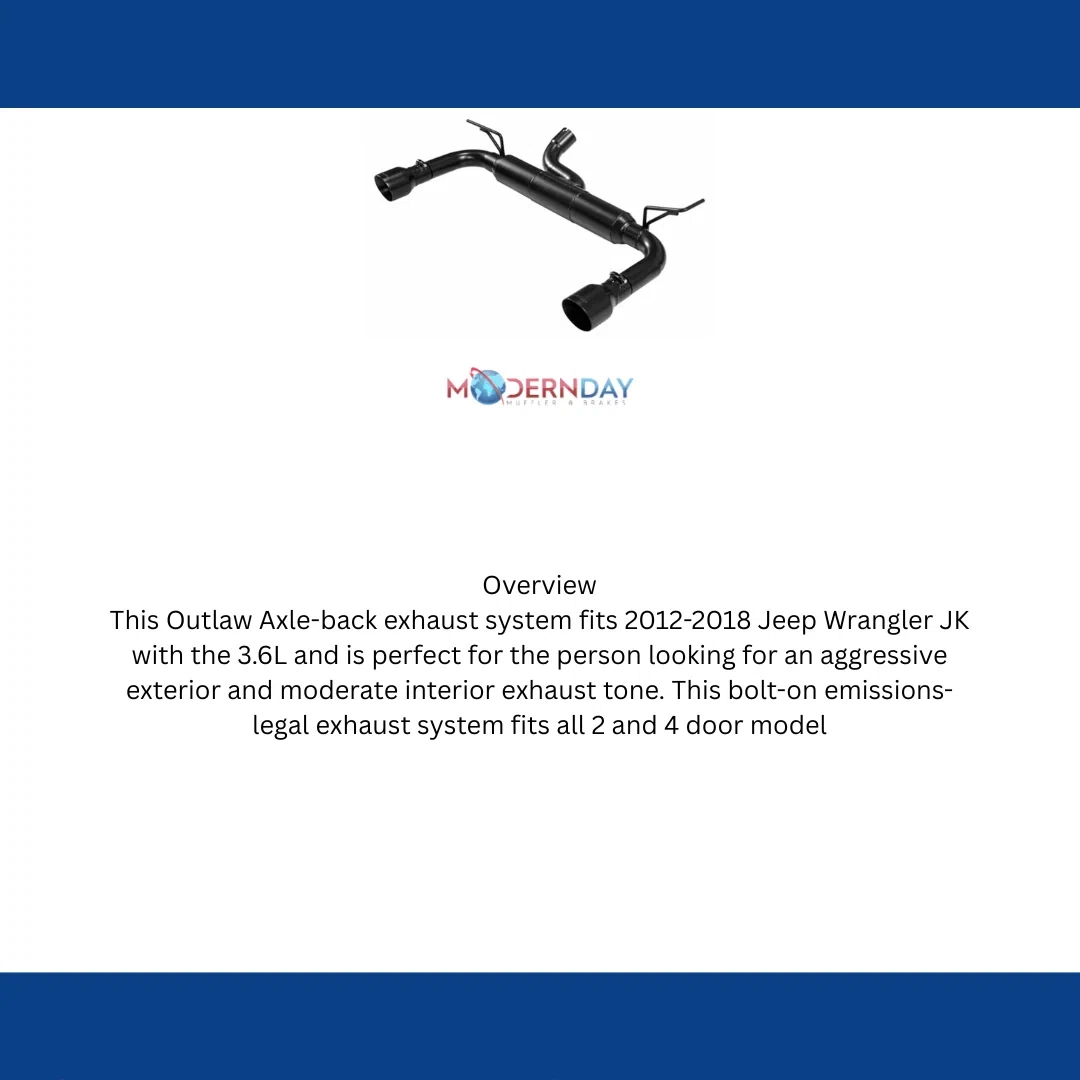

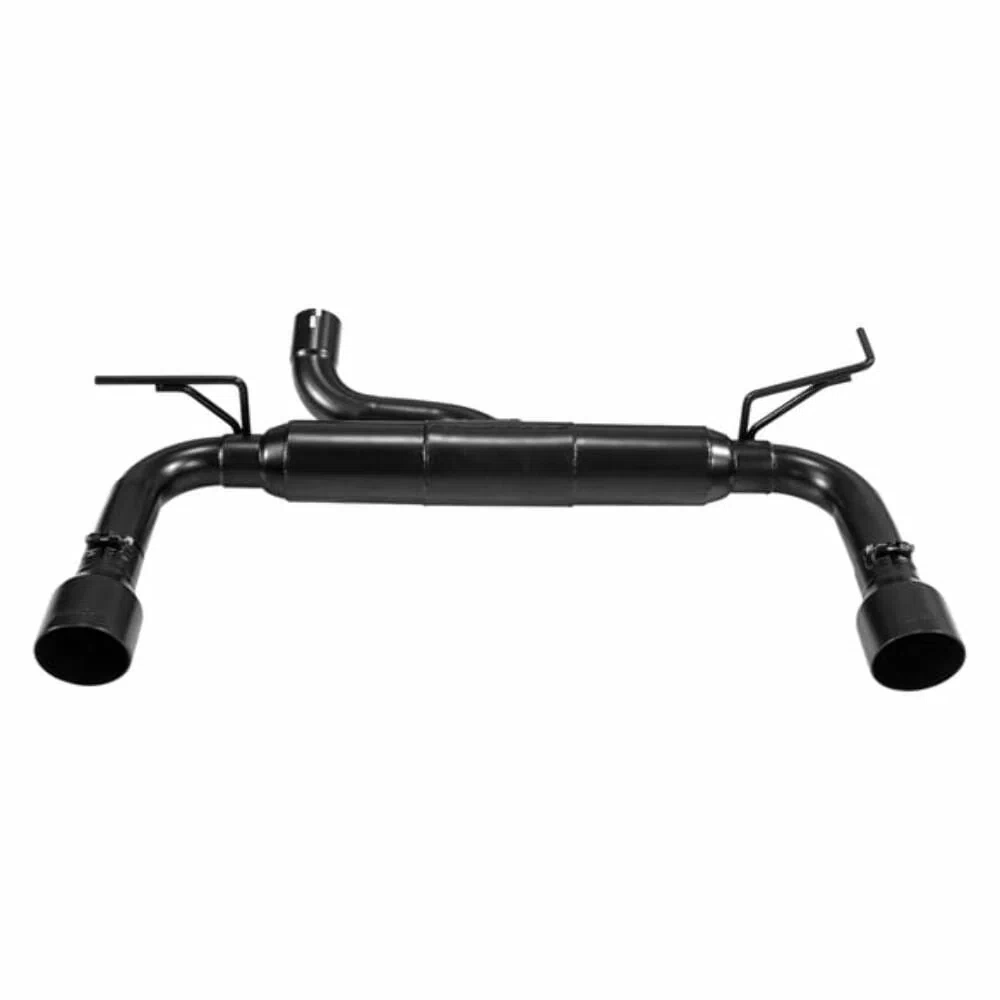

This Outlaw Axle-back exhaust system fits 2012-2018 Jeep Wrangler JK with the 3.6L and is perfect for the person looking for an aggressive exterior and moderate interior exhaust tone. This bolt-on emissions-legal exhaust system fits all 2 and 4 door models and features a specially designed stainless steel Outlaw series muffler with dual 2.50-inch mandrel-bent tailpipes. The system is finished off with a pair of large 4.00-inch black ceramic coated stainless steel tips and is covered by our Lifetime Limited Warranty. Designed for a perfect fit, the system includes all necessary parts and hardware for easy installation you can do at home.
Features:
Max increases of up to 12 hp and 13 lb-ft over the stock exhaust at the rear wheels
Over-axle pipe is routed to allow for an extra 2.0-inches of travel from modified suspensions
Flow FX series performance muffler offers a deep powerful sound and increased performance
409 stainless steel construction delivers extra durability and improved long-term corrosion resistance
Uses factory hanger locations for easy installation
3.0-inch 16-gauge mandrel bent stainless steel tubing helps maintain maximum exhaust flow for better power
Includes all necessary hardware for an at home installation
Dual 4.00-inch black ceramic coated tips adds a custom look
Lifetime Limited Warranty

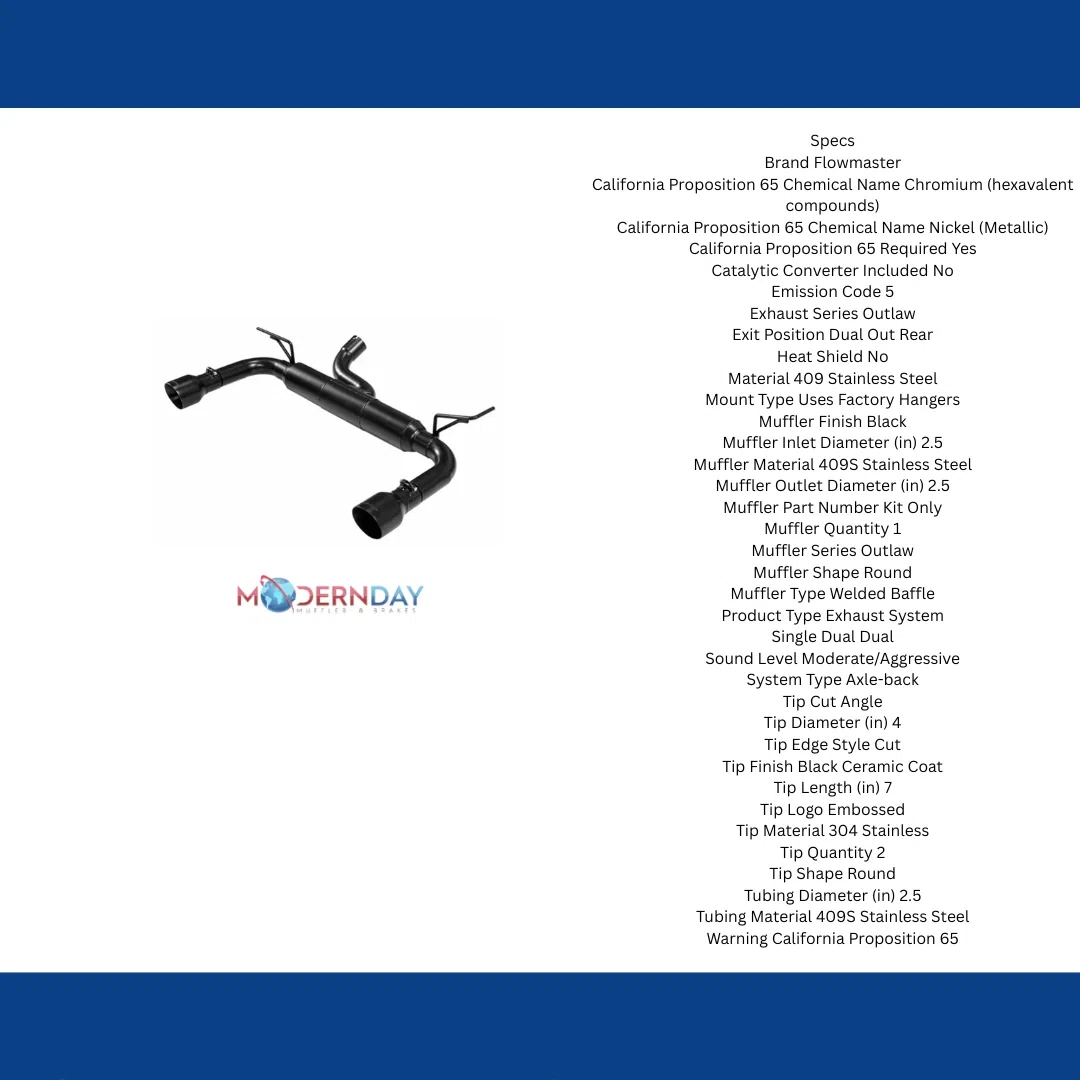

Specs:
Brand: Flowmaster
CARB (California) Compliant: Yes
Catalytic Converter Included: No
Catalytic Converter Quantity: 0

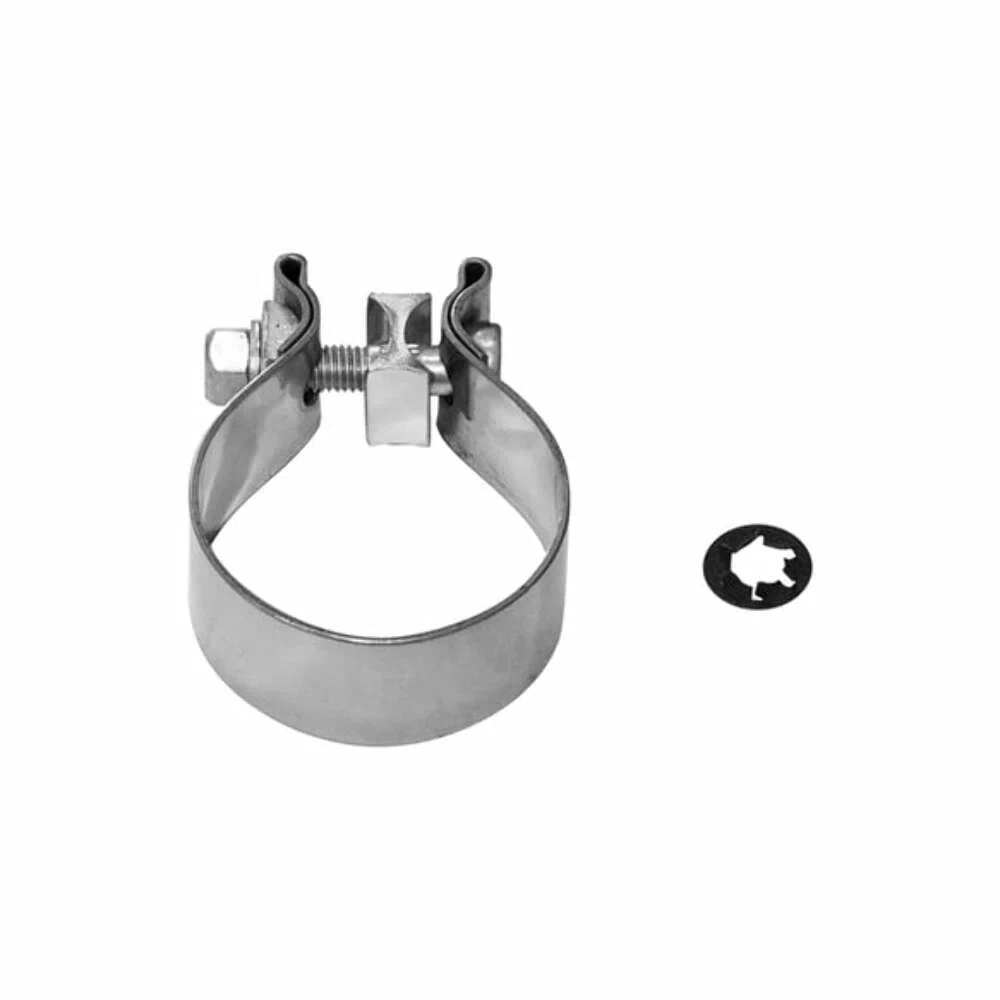

Clamping Type: Flat Band
Clamps Included: Yes
Emission Code: 5
Exhaust Series: Outlaw
Exhaust Tip Color: Black
Exhaust Tip Connection: Welded
Exhaust Tip Cut: Angled
Exhaust Tip Edge: Angle Cut
Exhaust Tip Finish: Black Ceramic Coating
Exhaust Tip Material: 304 Stainless Steel
Exhaust Tip Quantity: 2
Exhaust Tip Shape: Round
Exhaust Tip Wall: Double Wall
Exit Style: Dual Out Rear
Finish: Natural
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Heat Shield Included: No
Inlet Type: Clamp-On
Main Piping Diameter: 2.5
Mount Type: Uses Factory Hangers
Mounting Bracket Included: No
Muffler Body Diameter: 4
Muffler Body Height: 4
Muffler Body Length: 27.125
Muffler Body Material: 409 Stainless Steel
Muffler Body Shape: Round
Muffler Body Width: 4
Muffler Finish: Black High-Temperature Paint Finish
Muffler Flanged Inlet: No
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Slip-Fit
Muffler Inlet Inside Diameter: 2.5
Muffler Inlet Outside Diameter: 2.63
Muffler Outlet Diameter: 2.5
Muffler Outlet Quantity: 2
Muffler Part Number: Kit Only
Muffler Quantity: 1
Muffler Series: Outlaw
Muffler Type: Chambered
Pipe Color: Silver
Pipe Material: 409 Stainless Steel
Sound Level: Aggressive / Moderate
Spring Bolt Kit Included: No
Tail Pipe Outlet Outside Diameter: 2.5
Tail Pipe Quantity: 2
Tail Pipe Tapered Outlet: No
Tip Logo: Embossed
Type: Axle-back
Valve Included: No
Valve Type: Not Applicable
Part Number: 817752
Applications:
- 2018-2018 Jeep Wrangler JK 220 CID
- 2012-2017 Jeep Wrangler 220 CID
Emissions:
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
