Overview:

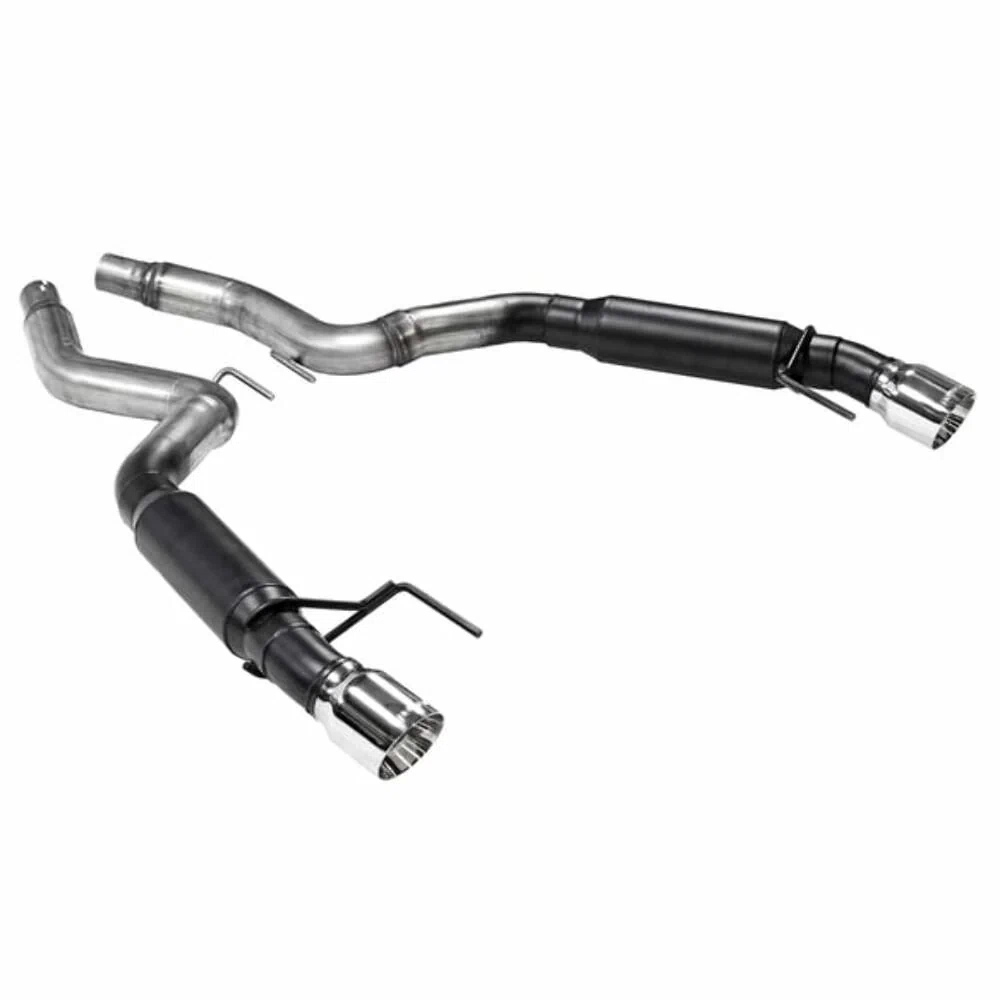

This Flowmaster® Outlaw axle-back exhaust system is specifically designed for 2015-2023 Ford Mustang coupes or convertibles with 2.3L Ecoboost or 3.7L engines. These systems feature race proven Outlaw® mufflers for a very aggressive exterior sound level with a moderate interior sound level. Features include 2.25-inch connections for an easy fit to the stock mid pipe then the inlets quickly expand to full 3.00-inch mandrel-bent inlet tubing leading into a pair of the race proven Outlaw mufflers for maximum performance and sound. The system is supported from the factory hanger locations for an easy and hassle free installation that can be done at home and is finished off with large 4.00-inch highly polished stainless steel tips for that performance look and sound that you’ve come to expect from Flowmaster. Covered by our Lifetime Limited Warranty. Note: Fits coupes and convertibles
Features:
Includes Hangers and Hardware for an Easy Installation
Dyno Tuned for Maximum Performance
Uses the Factory Hanger Locations
Moderate Exterior Exhaust Tone
Mandrel-bent 16 Gauge Tubing
Aluminized Steel Construction
3-year Limited Warranty
Specs:
Brand: Flowmaster
CARB (California) Compliant: Yes
Catalytic Converter Included: No
Catalytic Converter Quantity: 0

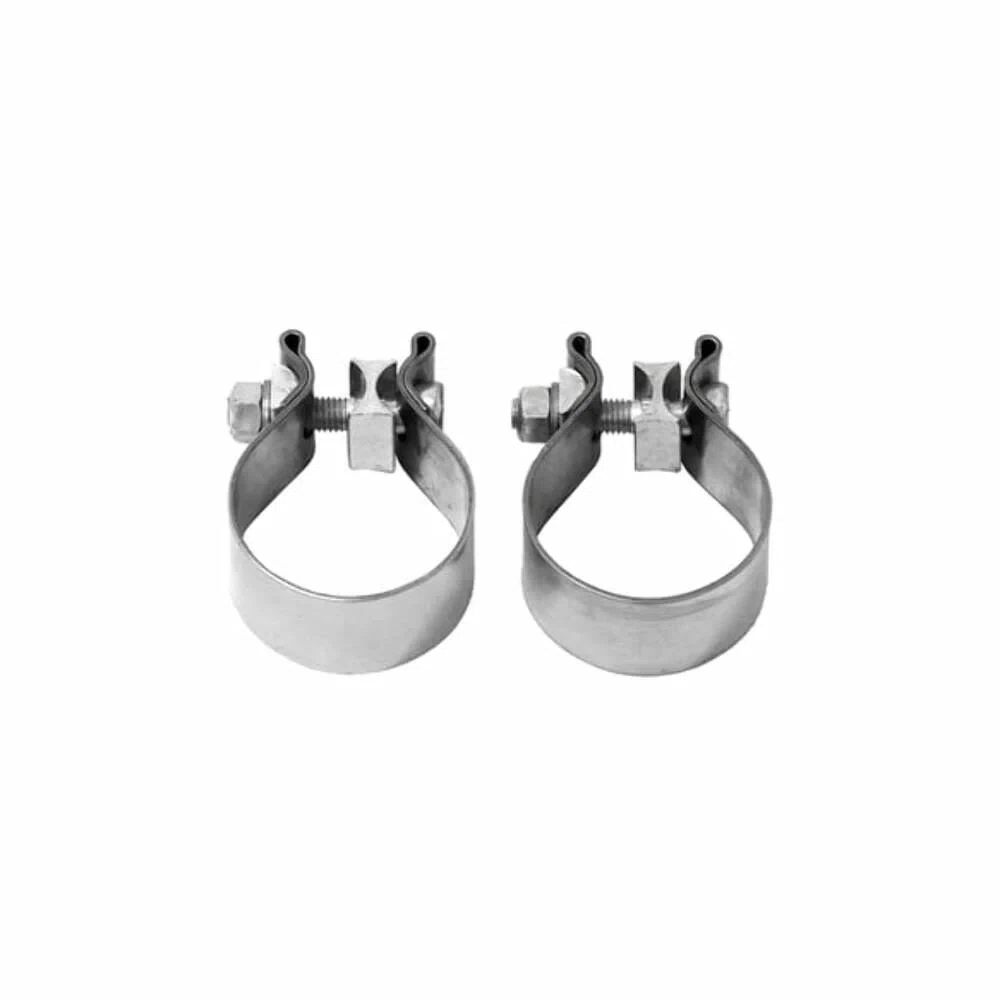

Clamping Type: Flat Band
Clamps Included: Yes
Emission Code: 5
Exhaust Series: Outlaw
Exhaust Tip Color: Silver
Exhaust Tip Connection: Welded
Exhaust Tip Cut: Angled
Exhaust Tip Edge: Angle Cut
Exhaust Tip Finish: Polished
Exhaust Tip Material: 304 Stainless Steel
Exhaust Tip Quantity: 2
Exhaust Tip Shape: Round
Exhaust Tip Wall: Double Wall
Exit Style: Dual Out Rear
Finish: Natural
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Heat Shield Included: No
Inlet Type: Clamp-On
Main Piping Diameter: 3
Mount Type: Uses Factory Hangers
Mounting Bracket Included: No
Muffler (Left) Body Height: 4
Muffler (Left) Body Length: 10.5
Muffler (Left) Body Width: 4
Muffler (Left) Type: Chambered
Muffler (Right) Body Height: 4
Muffler (Right) Body Length: 10.5
Muffler (Right) Body Width: 4
Muffler (Right) Type: Chambered
Muffler Body Diameter: 4
Muffler Body Height: 4
Muffler Body Length: 49
Muffler Body Material: 409 Stainless Steel
Muffler Body Shape: Round
Muffler Body Width: 4
Muffler Color: Black
Muffler Finish: Black High-Temperature Paint Finish
Muffler Flanged Inlet: No
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Slip-Fit
Muffler Inlet Inside Diameter: 3
Muffler Inlet Location: Center
Muffler Inlet Outside Diameter: 3.13
Muffler Outlet Diameter: 3
Muffler Outlet Location: Center
Muffler Outlet Quantity: 1
Muffler Overall Length: 10.5
Muffler Part Number: Kit Only
Muffler Quantity: 2
Muffler Series: Outlaw
Muffler Type: Reflection
Pipe Color: Silver
Pipe Material: 409 Stainless Steel
Sound Level: Aggressive
Spring Bolt Kit Included: No
Tail Pipe Outlet Outside Diameter: 3
Tail Pipe Quantity: 2
Tail Pipe Tapered Outlet: No
Tip Logo: Embossed
Type: Axle-back
Valve Included: No
Valve Type: Not Applicable
Part Number: 817713
Applications:
- 2015-2023 Ford Mustang 140 CID
- 2015-2017 Ford Mustang 227 CID
Emissions:
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
