Overview:

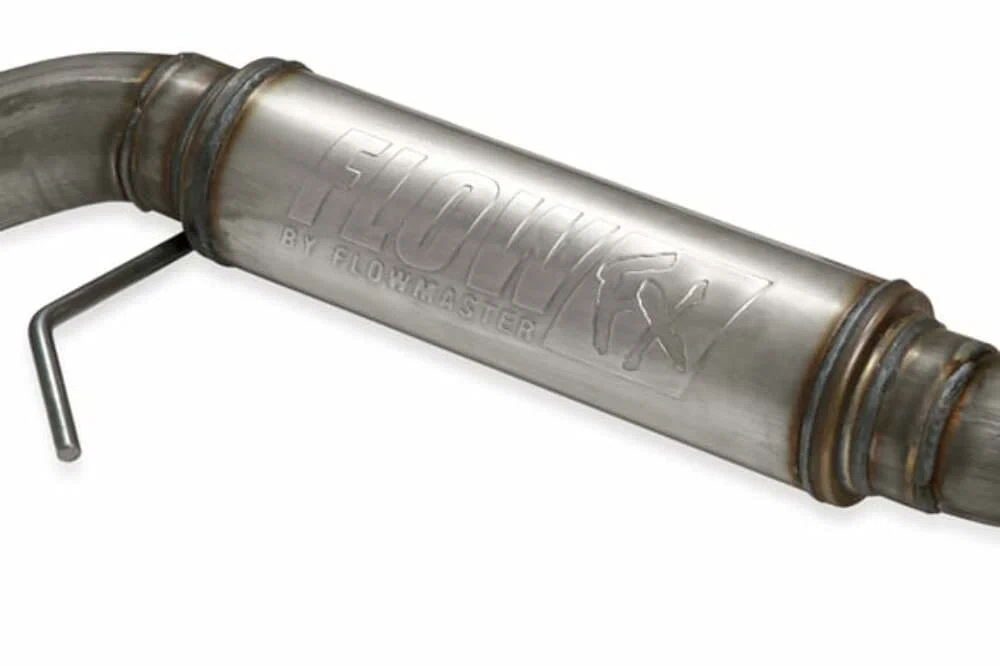

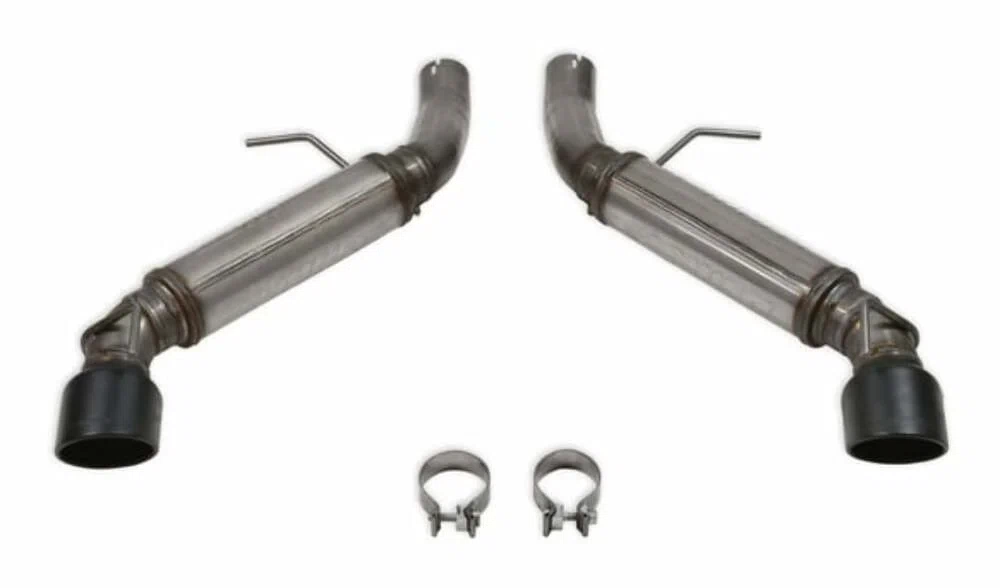

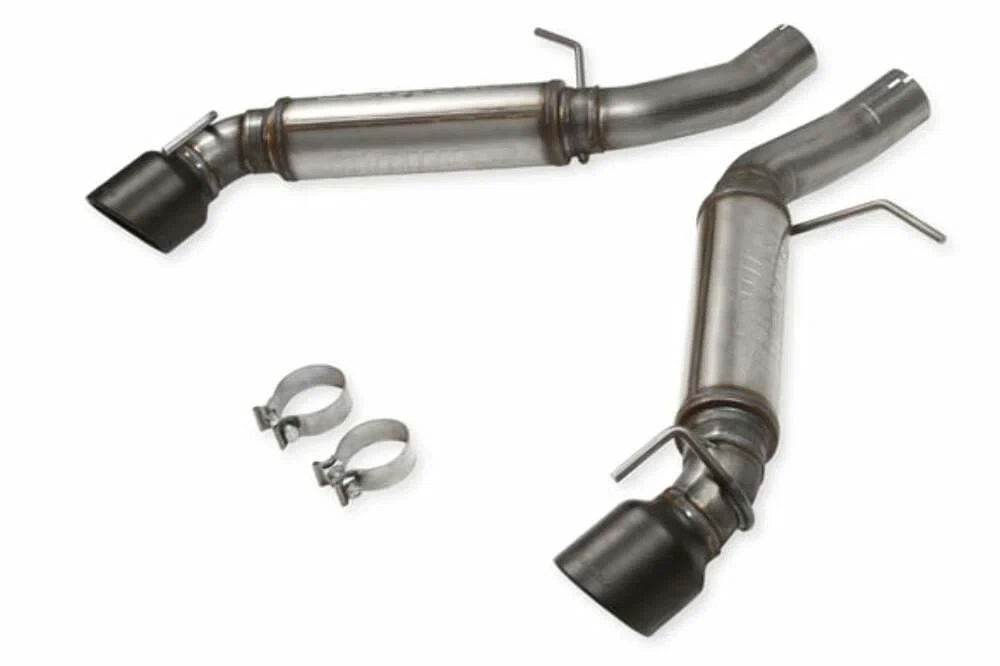

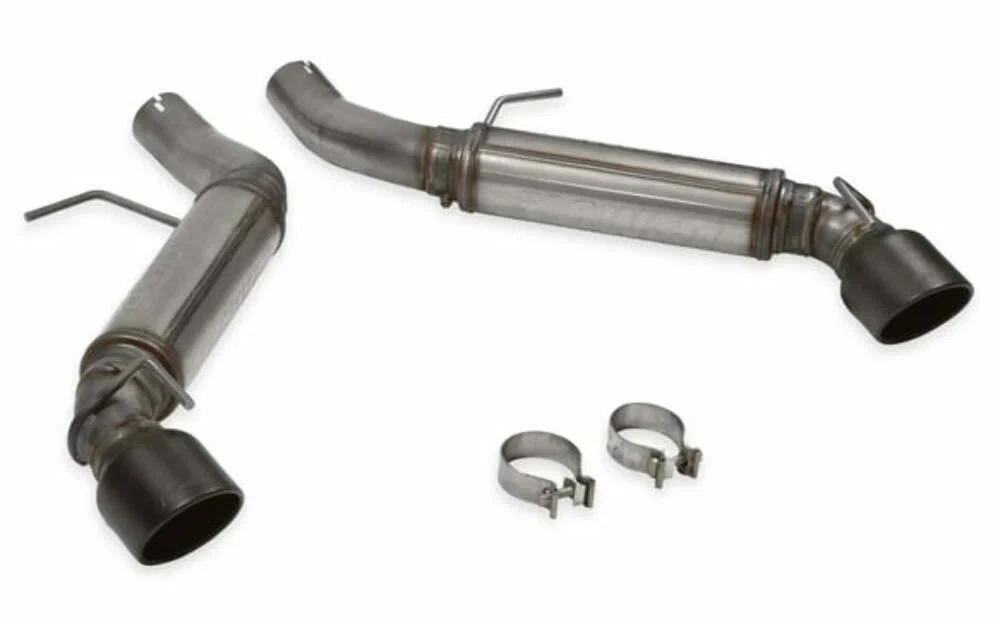

This new Flowmaster® Flow FX® axle-back exhaust system for the 2016-2024 Chevrolet Camaro with the 3.6-Liter engine is manufactured using durable 409 stainless steel throughout and features 3.00-inch mandrel bent pipes for better exhaust gas flow. Flow FX “straight-through” mufflers are used for an aggressive to moderate sound level and maximum performance. Maximum increases on the dyno revealed +4 hp and +7 lb-ft at the rear wheels. This dual exit system his 4.50-inch black ceramic tips with the Flowmaster logo embossed in them for added style and a custom look. This system uses all the existing factory hanger locations and include installation instructions and all necessary hardware for an easy installation that you can do at home. Backed by Flowmaster’s Lifetime Limited Warranty.
Features:
Exits Straight-out under the Rear Bumper
Mandrel-bent for Maximum Performance
High Clearance around Rear Differential
Designed for Double Off-set Mufflers
16 Gauge Aluminzed Steel Tubing
Does Not Include Hardware
3-year Limited Warranty
Includes H-pipe Kit
Specs:
Brand: Flowmaster
CARB (California) Compliant: Yes
Catalytic Converter Included: No
Catalytic Converter Quantity: 0
Clamping Type: Flat Band
Clamps Included: Yes
Emission Code: 5
Exhaust Series: Flow FX
Exhaust Tip Color: Black
Exhaust Tip Connection: Welded
Exhaust Tip Cut: Angled
Exhaust Tip Edge: Rolled Edge
Exhaust Tip Finish: Black Ceramic Coating
Exhaust Tip Material: 304 Stainless Steel
Exhaust Tip Quantity: 2
Exhaust Tip Shape: Round
Exhaust Tip Wall: Single Wall

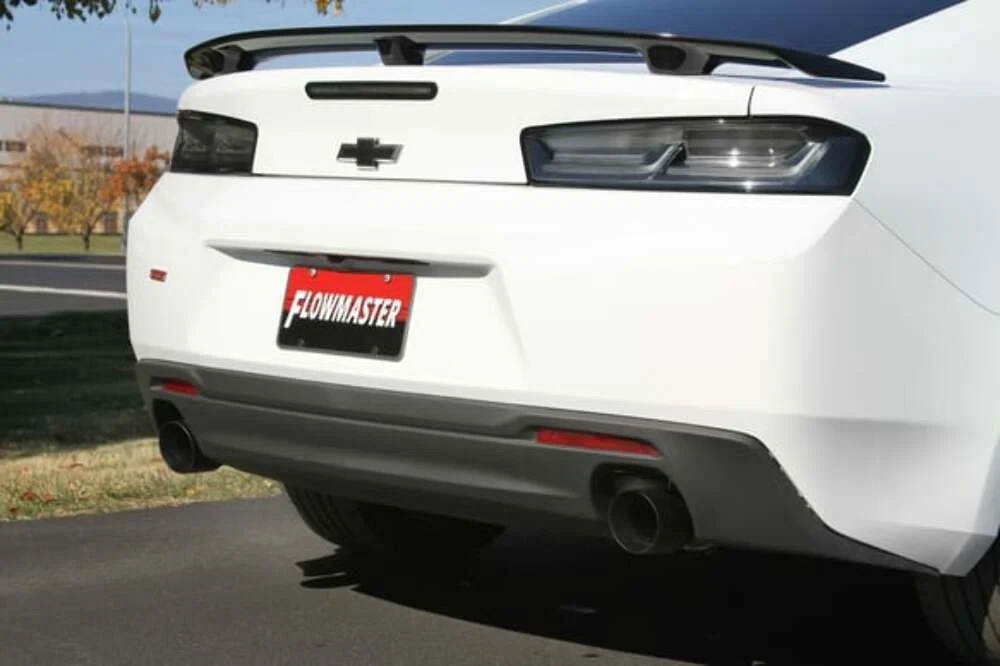

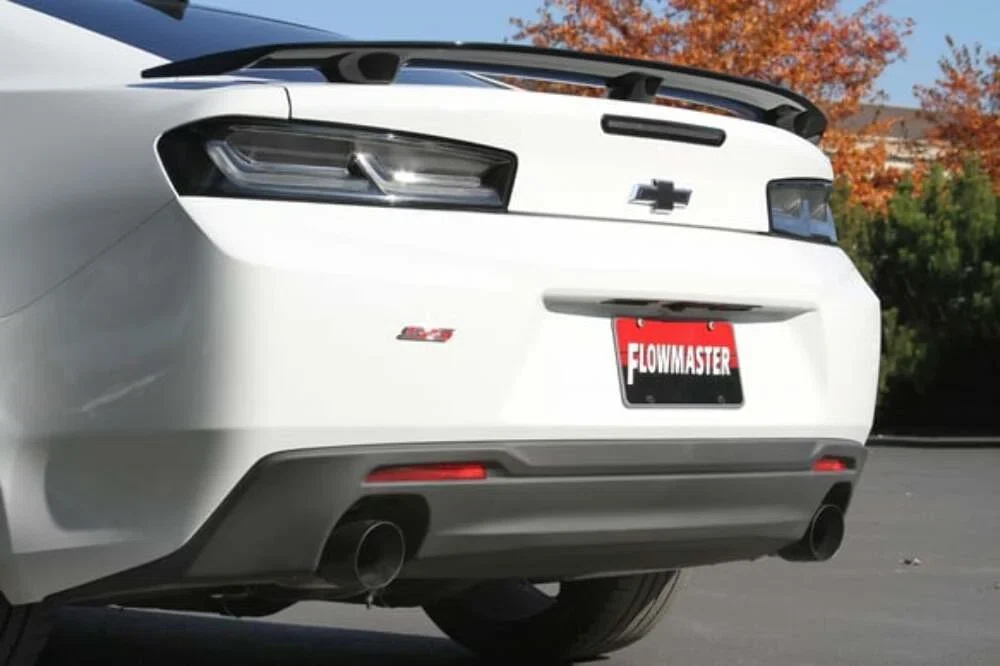

Exit Style: Dual Out Rear
Finish: Natural
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Inlet Type: Clamp-On
Main Piping Diameter: 3
Mount Type: Uses Factory Hangers
Mounting Bracket Included: No
Muffler (Left) Body Height: 4
Muffler (Left) Body Length: 14
Muffler (Left) Body Width: 4
Muffler (Left) Type: Absorption
Muffler (Right) Body Height: 4
Muffler (Right) Body Length: 14
Muffler (Right) Body Width: 4
Muffler (Right) Type: Absorption
Muffler Body Diameter: 4
Muffler Body Length: 14
Muffler Body Material: 409 Stainless Steel
Muffler Body Shape: Round
Muffler Color: Silver
Muffler Finish: Natural
Muffler Flanged Inlet: No
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Slip-Fit
Muffler Inlet Inside Diameter: 3
Muffler Inlet Location: Center
Muffler Inlet Outside Diameter: 3.13
Muffler Outlet Diameter: 3
Muffler Outlet Location: Center
Muffler Outlet Quantity: 1
Muffler Overall Length: 39.2
Muffler Part Number: Kit Only
Muffler Quantity: 2
Muffler Series: Flow FX
Muffler Type: Absorption
Pipe Color: Silver
Pipe Material: 409 Stainless Steel
Sound Level: Aggressive / Moderate
Spring Bolt Kit Included: No
Tail Pipe Outlet Outside Diameter: 3
Tail Pipe Quantity: Dual
Tail Pipe Tapered Outlet: No
Tip Logo: Embossed
Type: Axle-back
Valve Included: No
Valve Type: Not Applicable
Part Number: 717992
Applications:
- 2016-2024 Chevrolet Camaro 222 CID
Emissions:
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
