Overview:

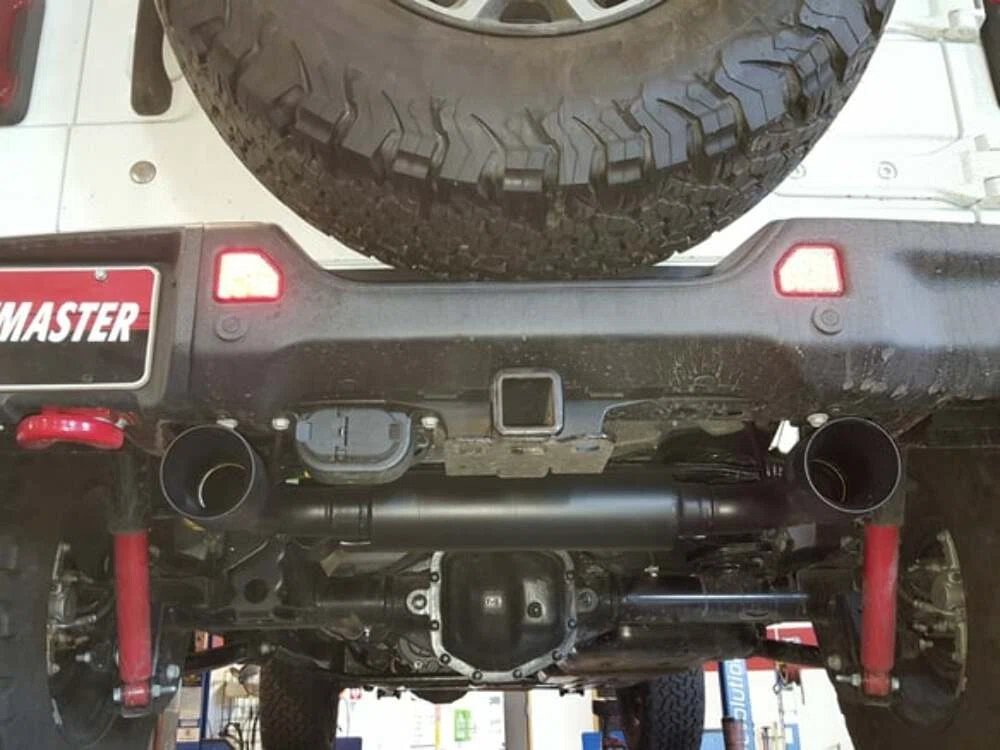

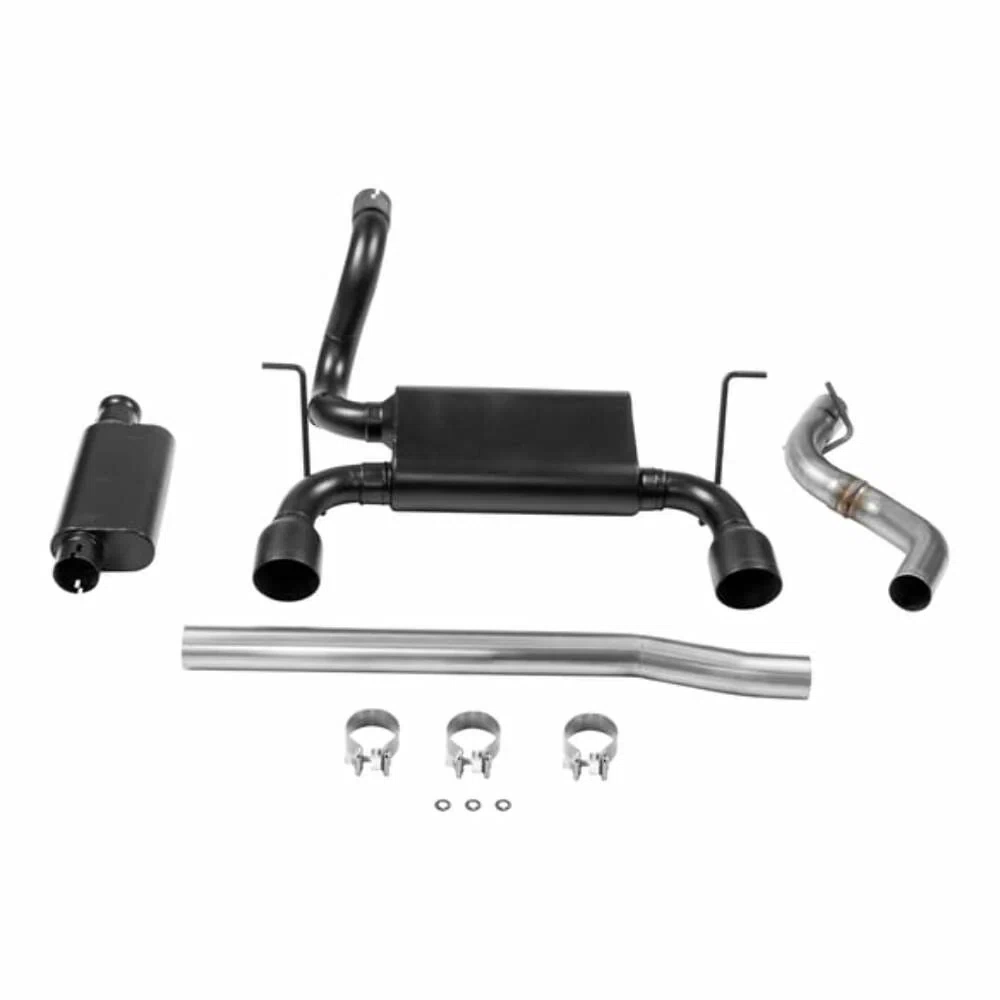

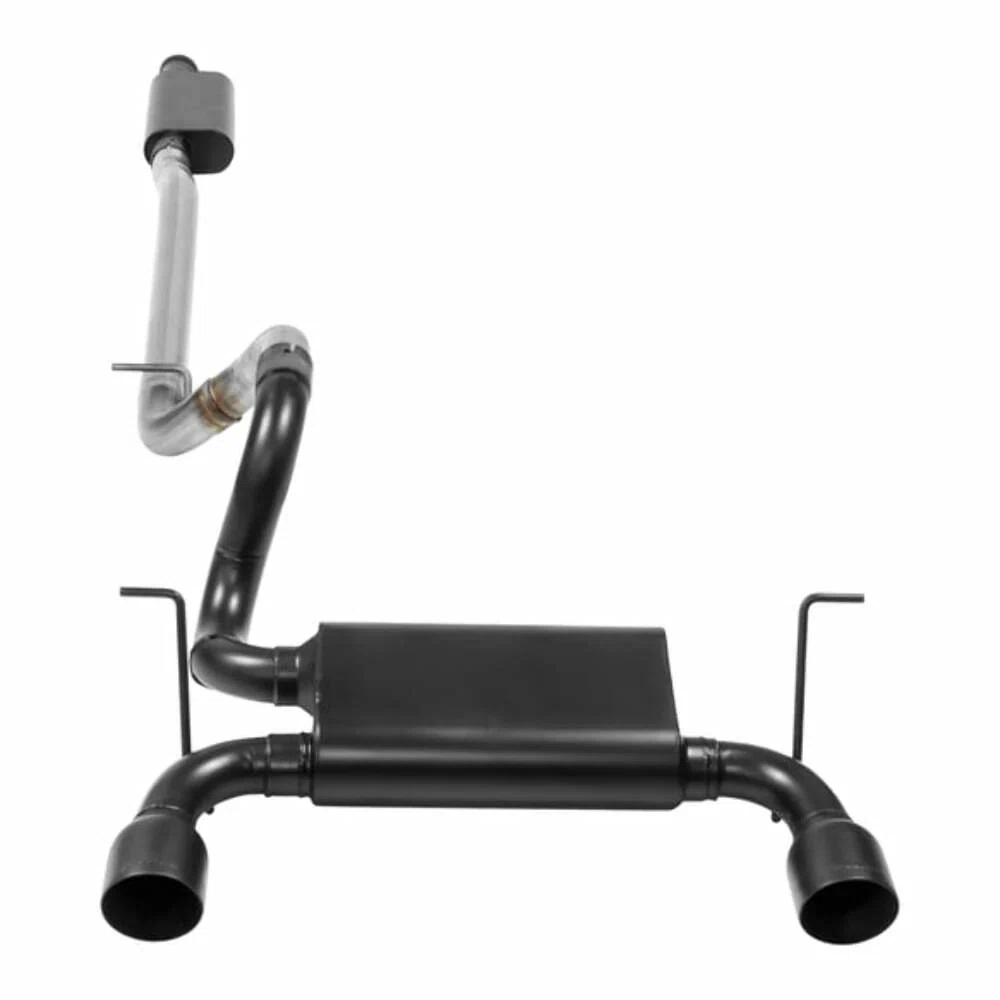

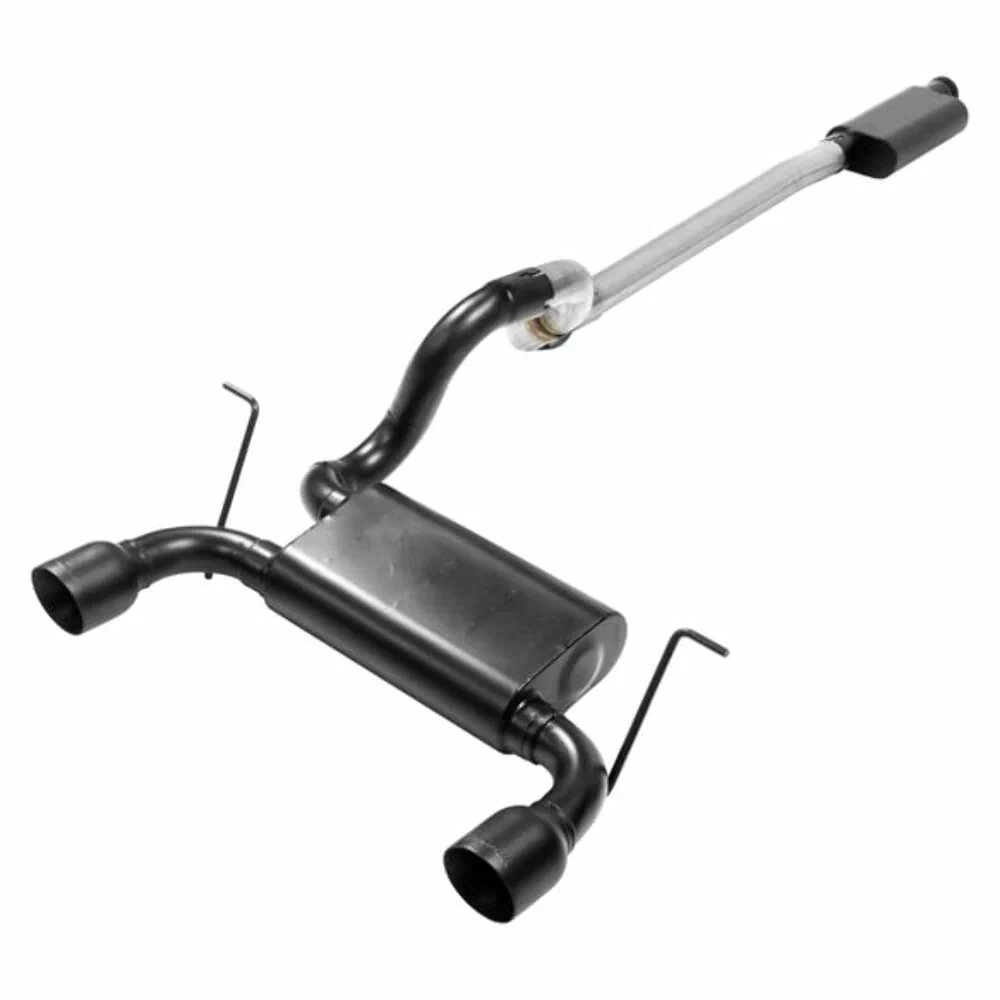

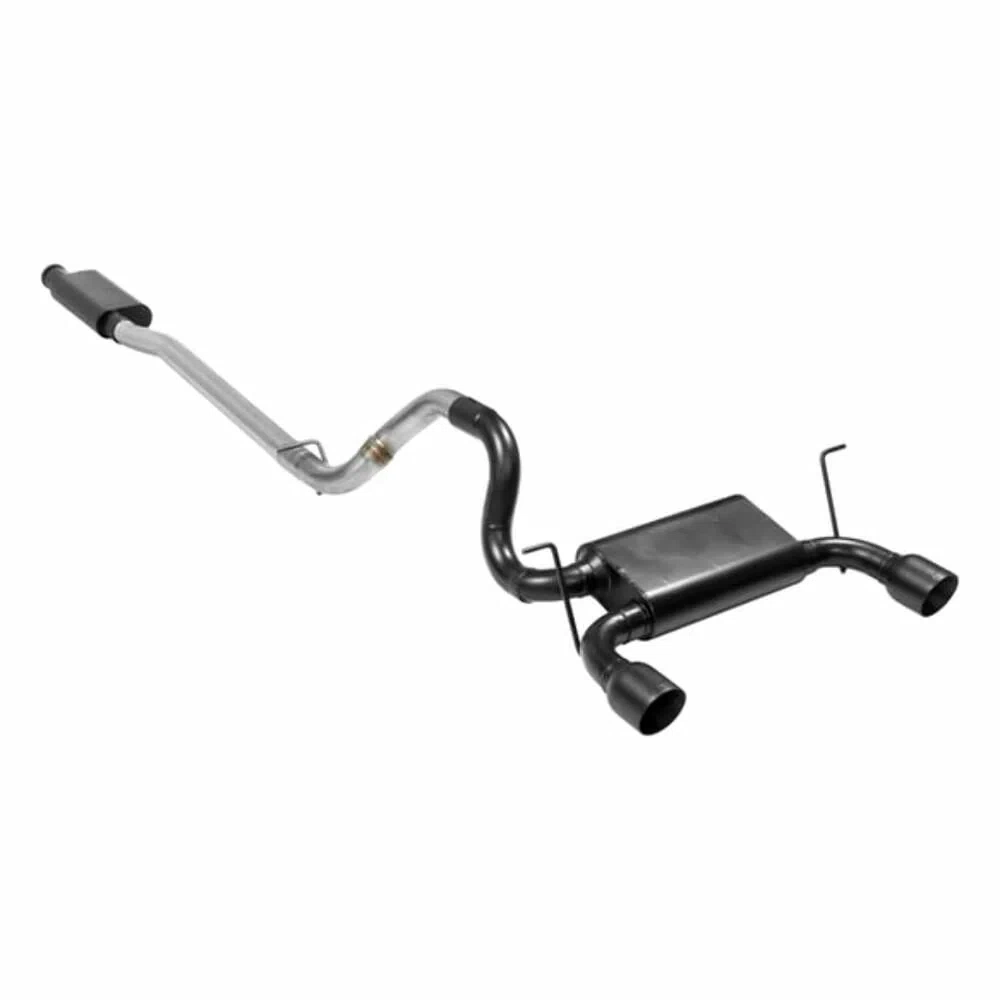

This Flowmaster® Outlaw® Cat-back exhaust system replaces the factory transverse muffler on 2018-2026 Jeep Wrangler Unlimited 4-door models with the 3.6L engine, including the Sahara 3.6L with Hybrid E-torque option. The system relocates the muffler into a position right behind the catalytic converter where it is tucked up into the frame and out of harm’s way when navigating rocky terrain. The system is constructed from 409S stainless steel, features a race-proven Outlaw series muffler for an aggressive exterior with a moderate interior sound level in the cab and the single 2.50-inch mandrel-bent stainless steel tailpipe is re-routed to run up and over the rear sway bar and exits up high at the rear bumper to provide maximum clearance for extreme crawling. The system is finished off with a polished 3.00-inch stainless steel tip. Note: Does Not fit 2-door models.
Features:
Flow FX Series performance mufflers offers a moderate to mild sound level and increased performance
409 stainless steel construction delivers extra durability and improved long-term corrosion resistance
Max dyno gains of 7 hp and 6 lb-ft at the rear wheels
2.50-inch 16-gauge mandrel bent stainless steel tubing helps maintain maximum exhaust flow for better power
Includes all necessary hardware for an at home installation
4.00-inch black ceramic-coated stainless steel tips add a custom look to the vehicle
Uses factory hanger locations for easy installation
Lifetime Limited Warranty
Specs:
Brand: Flowmaster
CARB (California) Compliant: Yes
Catalytic Converter Included: No
Catalytic Converter Quantity: 0
Clamping Type: Flat Band
Clamps Included: Yes
Emission Code: 5
Exhaust Series: Outlaw
Exhaust Tip Color: Silver
Exhaust Tip Connection: Welded
Exhaust Tip Cut: Angled
Exhaust Tip Edge: Angle Cut
Exhaust Tip Finish: Polished
Exhaust Tip Material: 304 Stainless Steel
Exhaust Tip Quantity: 1
Exhaust Tip Shape: Round
Exhaust Tip Wall: Single Wall
Exit Style: Single Out Rear
Finish: Natural
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Heat Shield Included: No
Inlet Type: Flanged
Main Piping Diameter: 2.5
Mount Type: Uses Factory Hangers
Mounting Bracket Included: No
Muffler Body Diameter: 4.5
Muffler Body Height: 4.5
Muffler Body Length: 11
Muffler Body Material: 409 Stainless Steel
Muffler Body Shape: Round
Muffler Body Width: 4.5
Muffler Color: Black
Muffler Finish: Black High-Temperature Paint Finish
Muffler Flanged Inlet: No
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Female Ball
Muffler Inlet Inside Diameter: 2.5
Muffler Inlet Location: Center
Muffler Inlet Outside Diameter: 2.63
Muffler Outlet Connection: Slip-Fit
Muffler Outlet Diameter: 2.5
Muffler Outlet Location: Center
Muffler Outlet Quantity: 1
Muffler Overall Length: 18.5
Muffler Part Number: Kit Only
Muffler Quantity: 1
Muffler Series: Outlaw
Muffler Type: Reflection
Pipe Color: Silver
Pipe Material: 409 Stainless Steel
Sound Level: Aggressive / Moderate
Spring Bolt Kit Included: No
Tail Pipe Outlet Outside Diameter: 2.5
Tail Pipe Quantity: 1
Tail Pipe Tapered Outlet: No
Tip Logo: Embossed
Type: Cat-Back
Valve Included: No
Valve Type: Not Applicable
Part Number: 817818
Applications:
- 2018-2026 Jeep Wrangler 220 CID
Emissions:
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
