Overview:

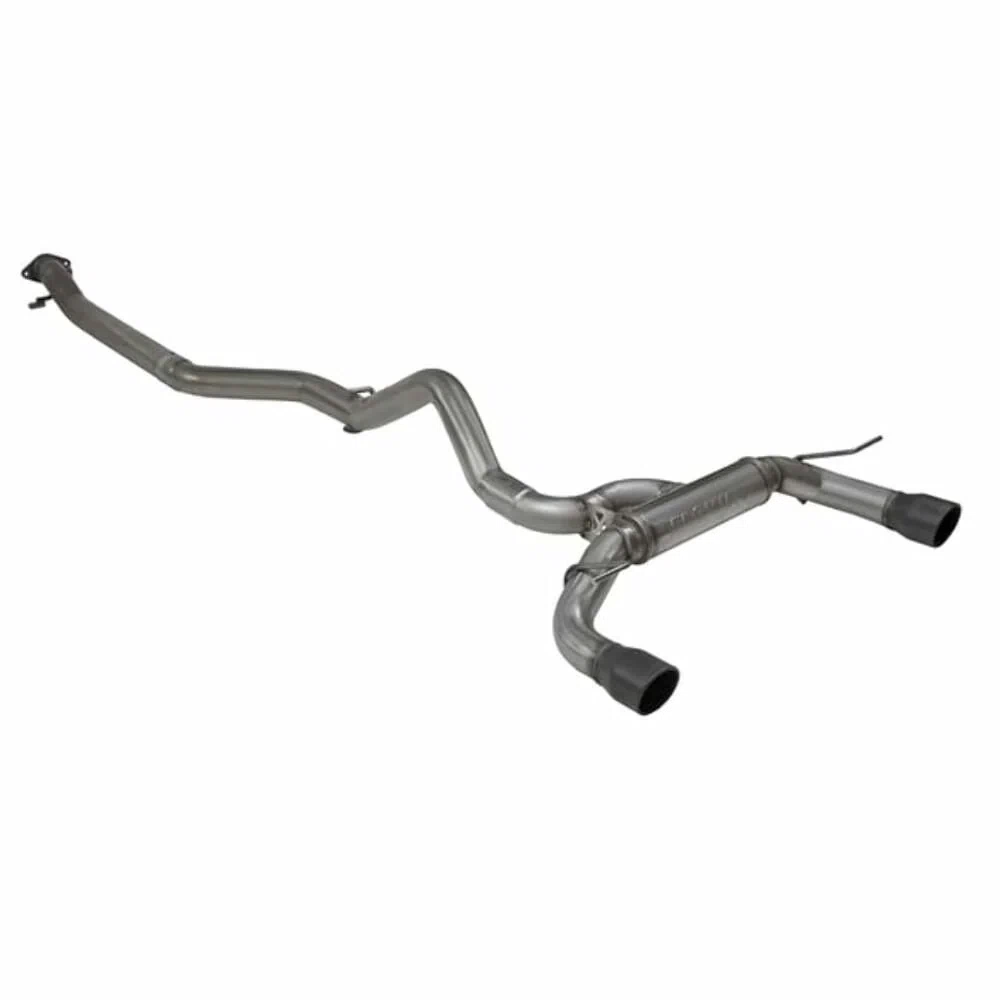

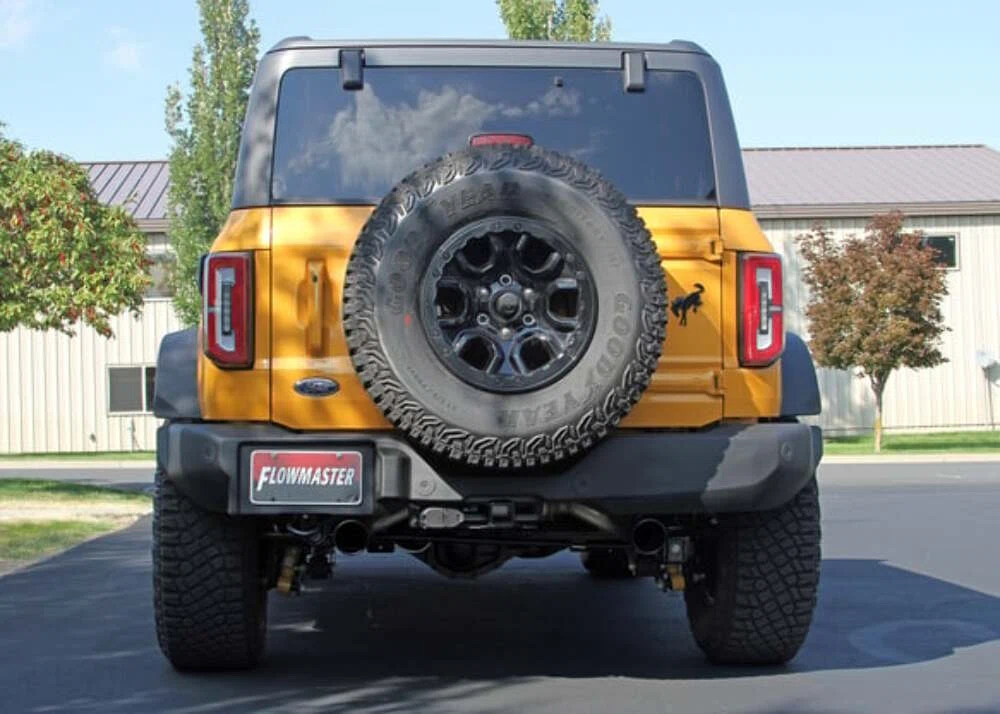

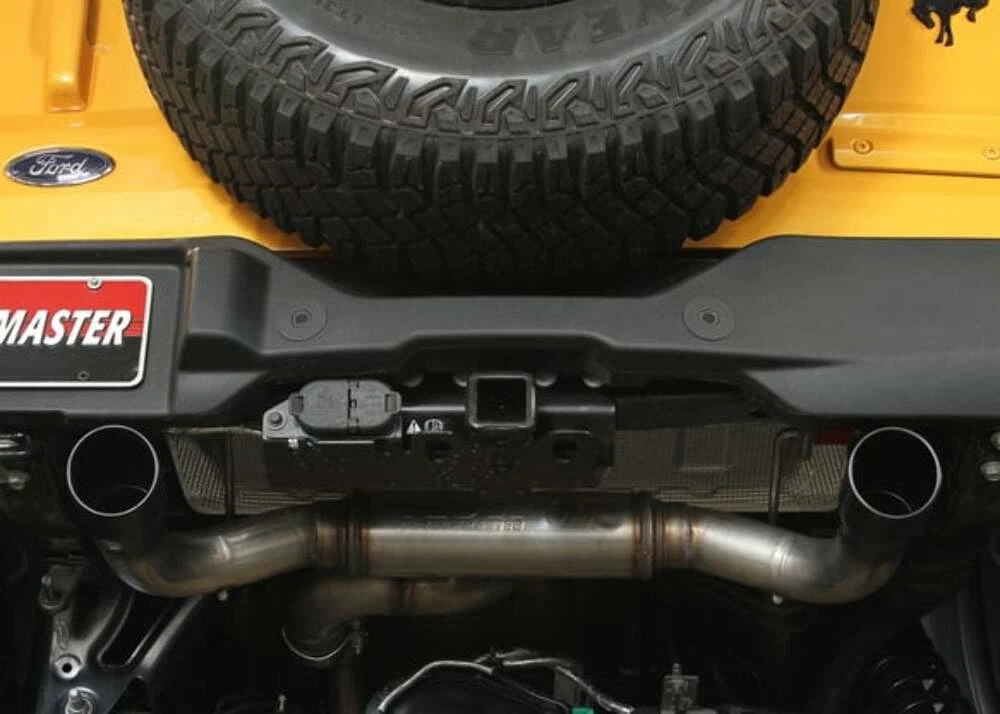

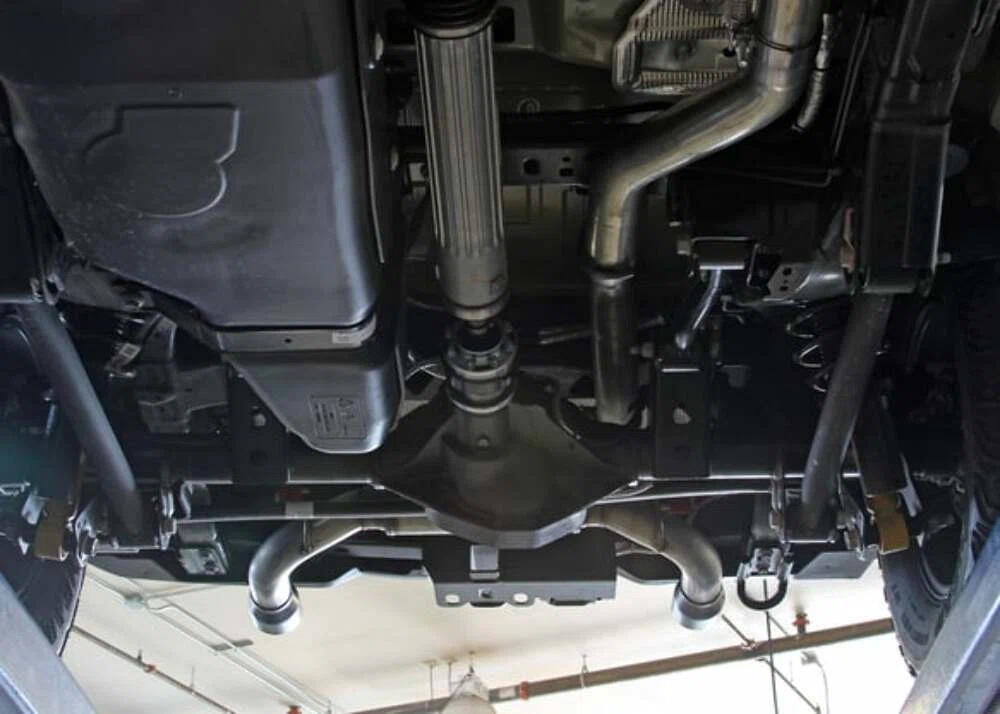

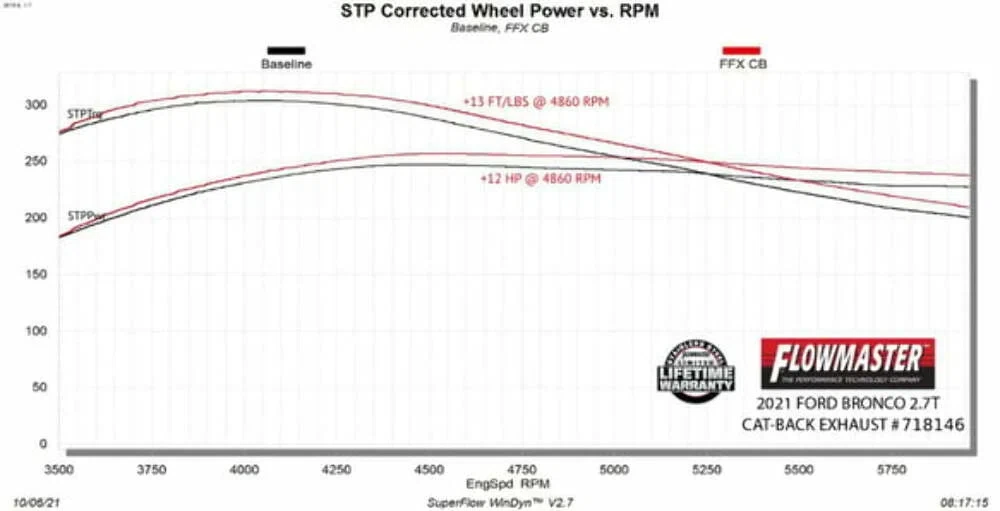

Flowmaster introduces our Flow FX cat-back exhaust system for the 2021-2026 Ford Bronco with the 2.3 or 2.7-liter engine and 4 doors. This system uses a Flow FX style muffler for a deep exhaust tone with an aggressive to moderate sound level and increased performance. Maximum dyno gains of 12 hp and 13 lb-ft were measured at the rear wheels. 3.00-inch mandrel bent 409 stainless steel tubing is used from the factory mid-pipe flange back to maximize exhaust flow and durability. This step up from the factory pipe size will help maximize gains from additional engine upgrades. The over-axle section is also routed to help gain an additional 2.0-inches of clearance from the axle when used on applications with modified suspensions. This allows for better suspension travel when used in extreme off-road situations. Dual 4.00-inch black ceramic coated tips are used to add a custom look to this iconic vehicle. All of the necessary hardware is included and factory mounting locations are used for an easy installation. Backed by Flowmaster’s Lifetime Limited Warranty.
Features:

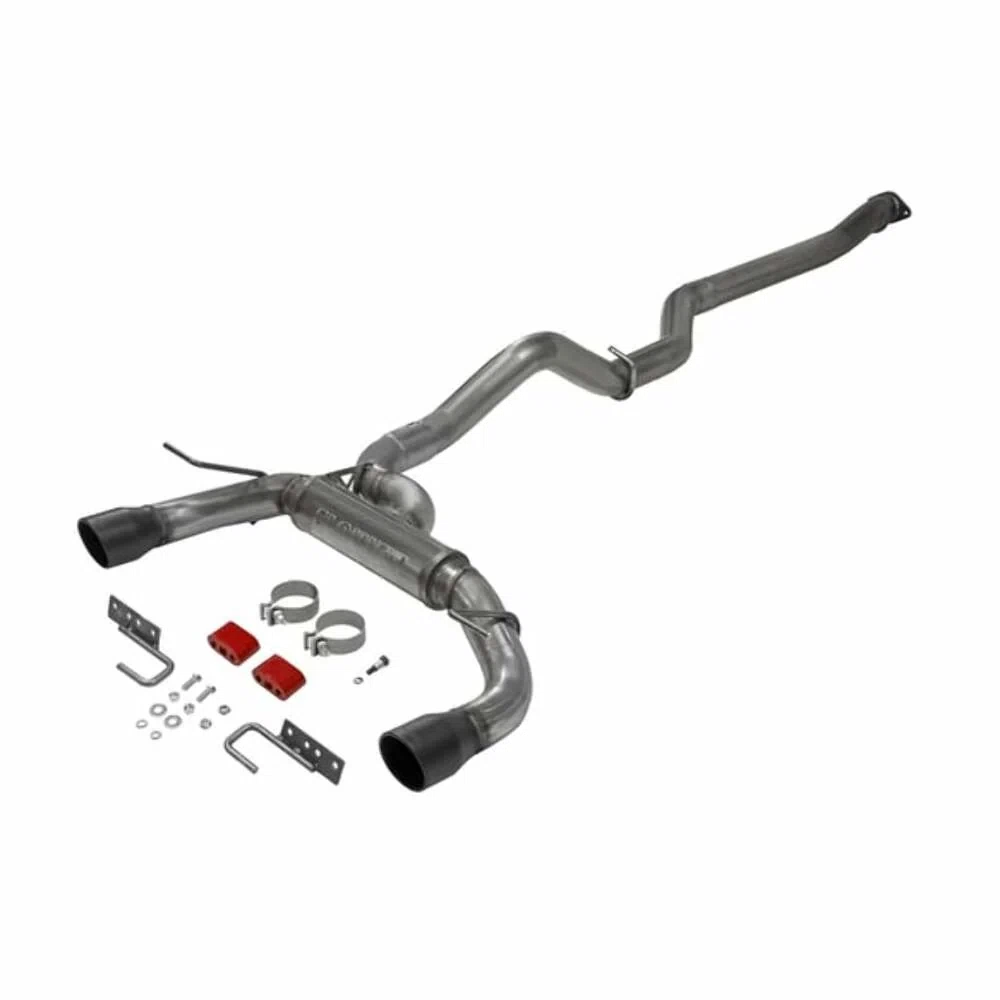

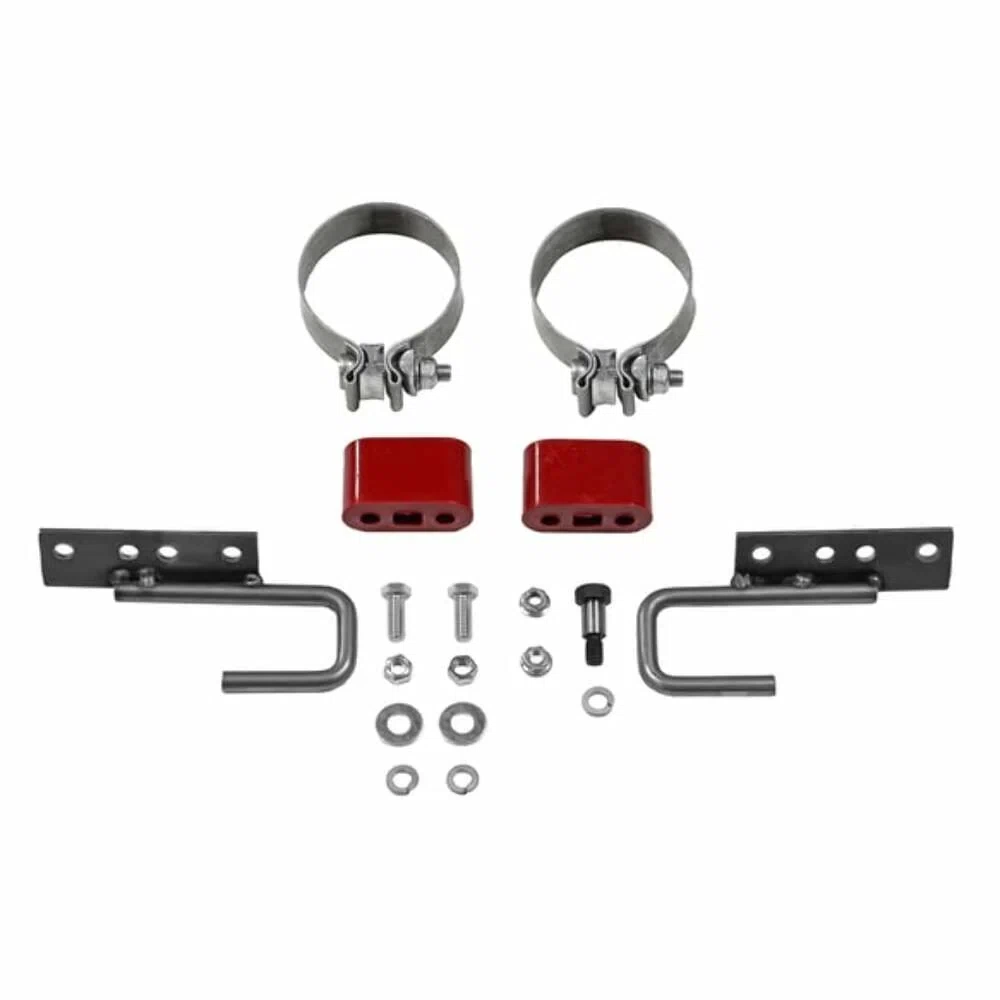

Includes Hangers and Hardware for an Easy Installation
Mandrel-bent 16-gauge Stainless Steel Tubing
Large 3.00-inch Brushed Stainless Steel Tip
Mild Performance Exterior Exhaust Tone
Dyno Tuned for Maximum Performance
Uses the Factory Hanger Locations
60 Series Performance Muffler
Lifetime Limited Warranty
Specs:
Brand: Flowmaster
CARB (California) Compliant: Yes
Catalytic Converter Included: No
Catalytic Converter Quantity: 0
Clamping Type: Flat Band
Clamps Included: Yes
Emission Code: 5
Exhaust Series: Flow FX
Exhaust Tip Color: Black
Exhaust Tip Connection: Welded
Exhaust Tip Cut: Angled
Exhaust Tip Edge: Rolled Edge
Exhaust Tip Finish: Black Ceramic Coating
Exhaust Tip Material: 304 Stainless Steel
Exhaust Tip Quantity: 2
Exhaust Tip Shape: Round
Exhaust Tip Wall: Single Wall
Exit Style: Dual Out Rear – 4-Door
Finish: Natural
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Inlet Type: Flanged
Main Piping Diameter: 3
Mount Type: Uses New Hangers (Included)
Mounting Bracket Included: Yes
Muffler Body Diameter: 4
Muffler Body Length: 14
Muffler Body Material: 409 Stainless Steel
Muffler Body Shape: Round
Muffler Color: Silver
Muffler Finish: Natural
Muffler Flanged Inlet: No
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Slip-Fit
Muffler Inlet Inside Diameter: 3
Muffler Inlet Location: Side
Muffler Inlet Outside Diameter: 3.13
Muffler Outlet Diameter: 3
Muffler Outlet Location: Dual
Muffler Outlet Quantity: 2
Muffler Overall Length: 25
Muffler Part Number: Kit Only
Muffler Quantity: 1
Muffler Series: Flow FX
Muffler Type: Absorption
Pipe Color: Silver
Pipe Material: 409 Stainless Steel
Sound Level: Aggressive / Moderate
Spring Bolt Kit Included: No
Tail Pipe Outlet Outside Diameter: 3
Tail Pipe Quantity: 2
Tail Pipe Tapered Outlet: No
Tip Logo: Embossed
Type: Cat-Back
Valve Included: No
Valve Type: Not Applicable
Part Number: 718122
Applications:
- 2021-2026 Ford Bronco 140 CID
- 2021-2026 Ford Bronco 164 CID
Emissions:
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
