Earl’s Breather Tank / Catch Can – CT100ERL

Overview:

Earl’s breather tanks are made from 6061 aluminum and have internal oil baffling. These tanks feature a -12 AN O-ring inlet port, knurled drain valve with an optional 1/8″ NPT outlet port for use with a remote drain (or to drain back to the oil pan), w/ 4-bolt mounting brackets. Includes a heavy duty stainless steel mesh filter which has a billet aluminum housing to reduce weight. The filter may be removed to expose a -12AN Male. Ideal for use in all racing applications (i.e. engine PCV, dry sump tanks, transmissions, and rear-end venting). Black anodized finish.

Features:

• 6061 Aluminum Catch Tanks w/ Baffle Inside
• Black Anodized Finish
• Dimensions: Overall Height 13.25” x Diameter 3.15” x Depth 3.20”

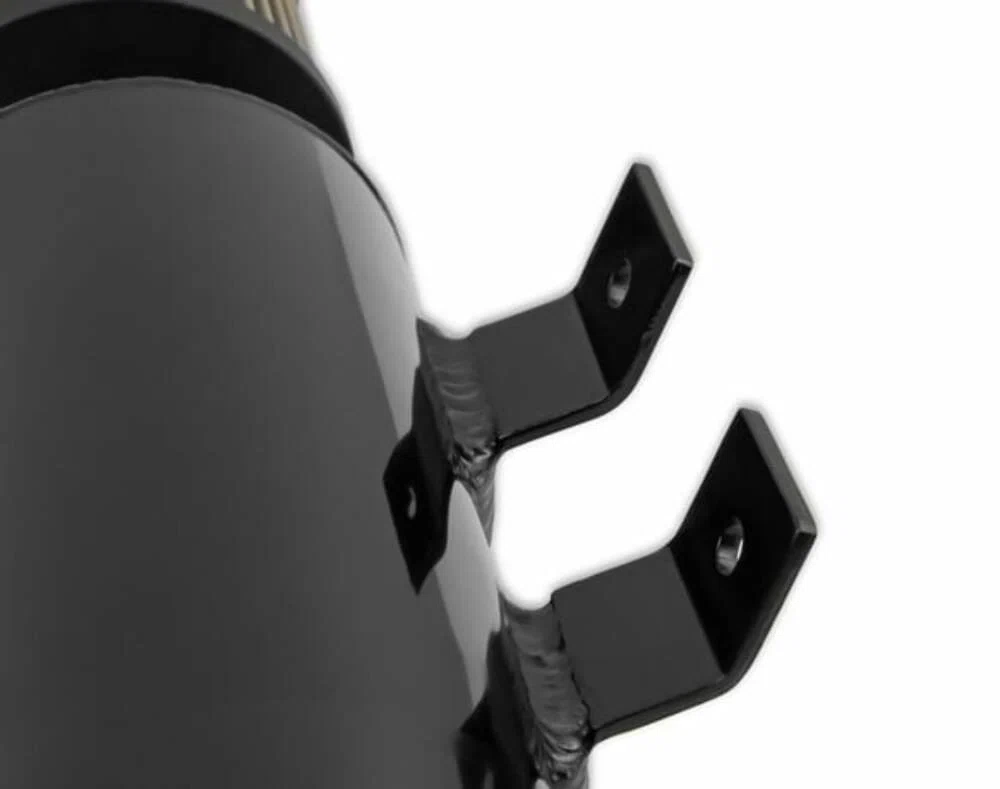

• 4-Bolt Mounting Brackets – Bolt Pattern 4.13” x 2.40”, Overall Bracket Width 5.07

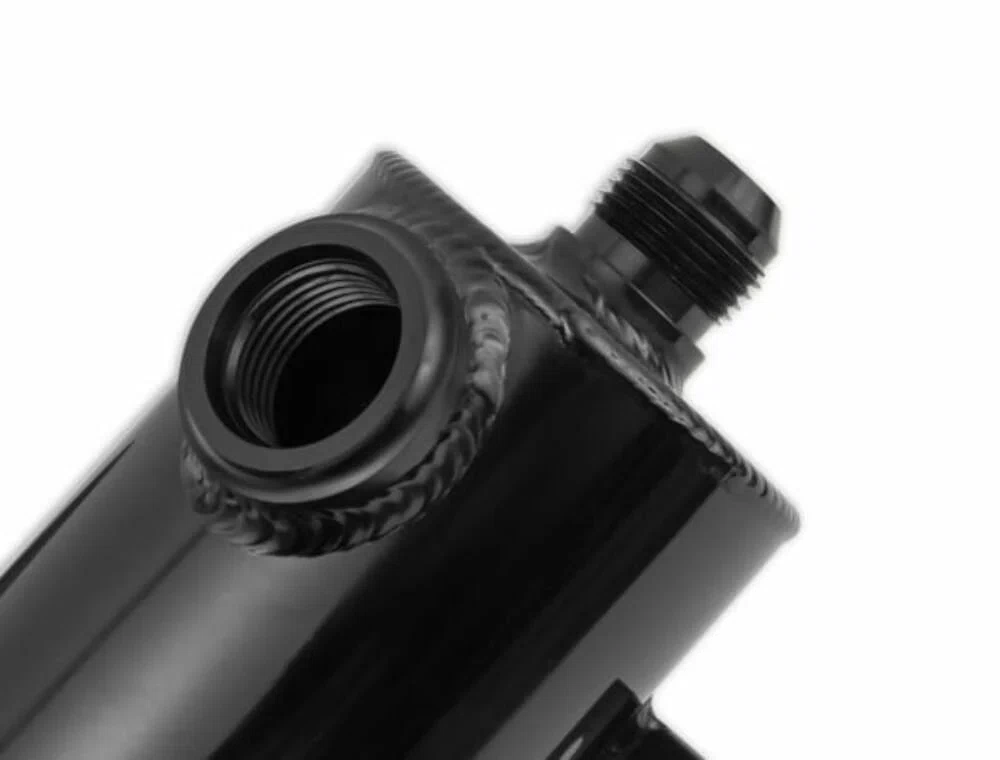

• Inlet: -12 AN ORB Female

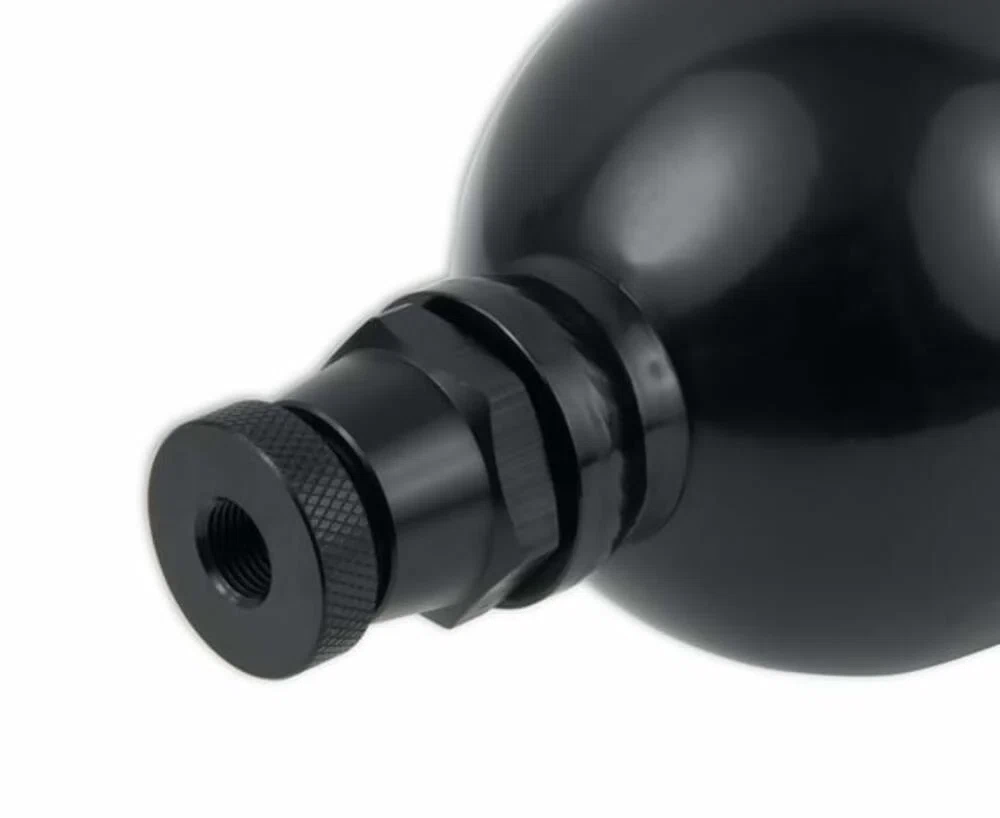

• Drain w/ Knurled Screw & 1/8” NPT Outlet (for optional remote drain)

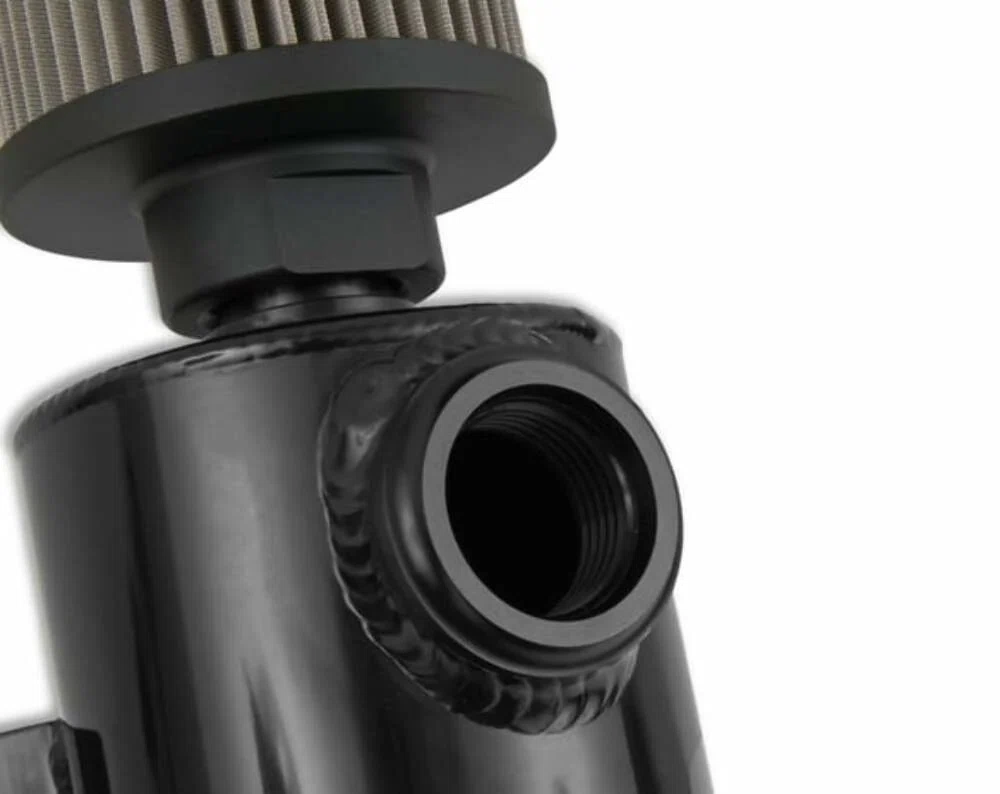

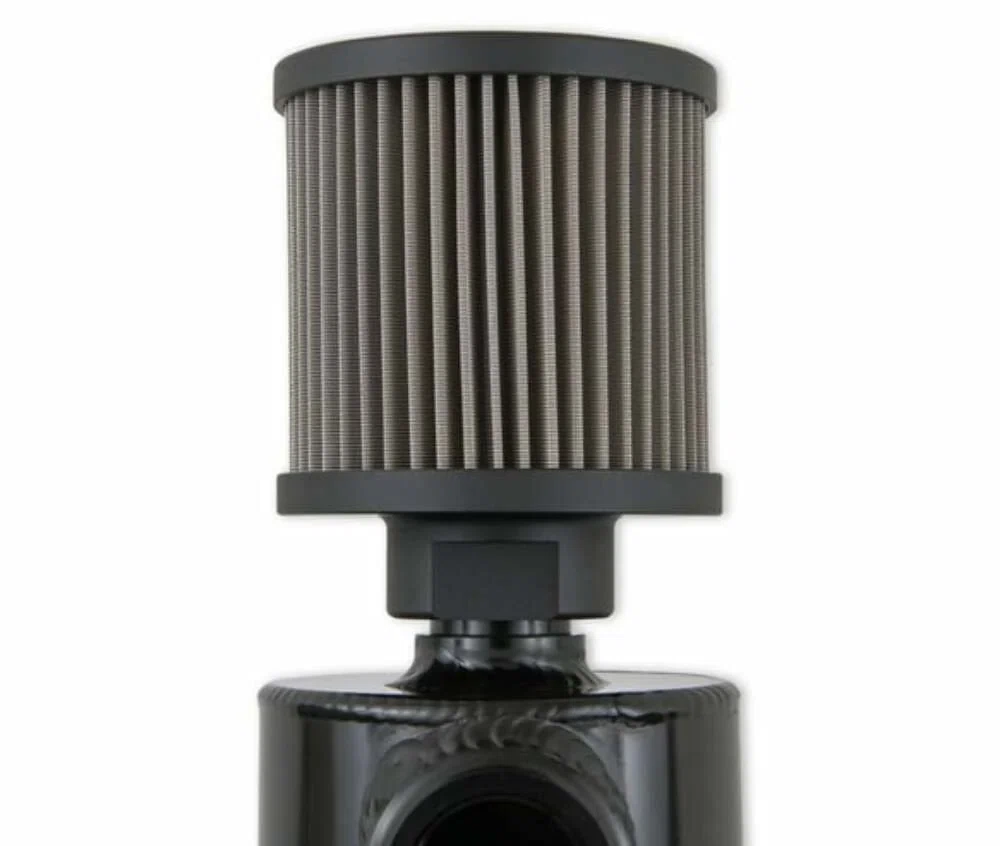

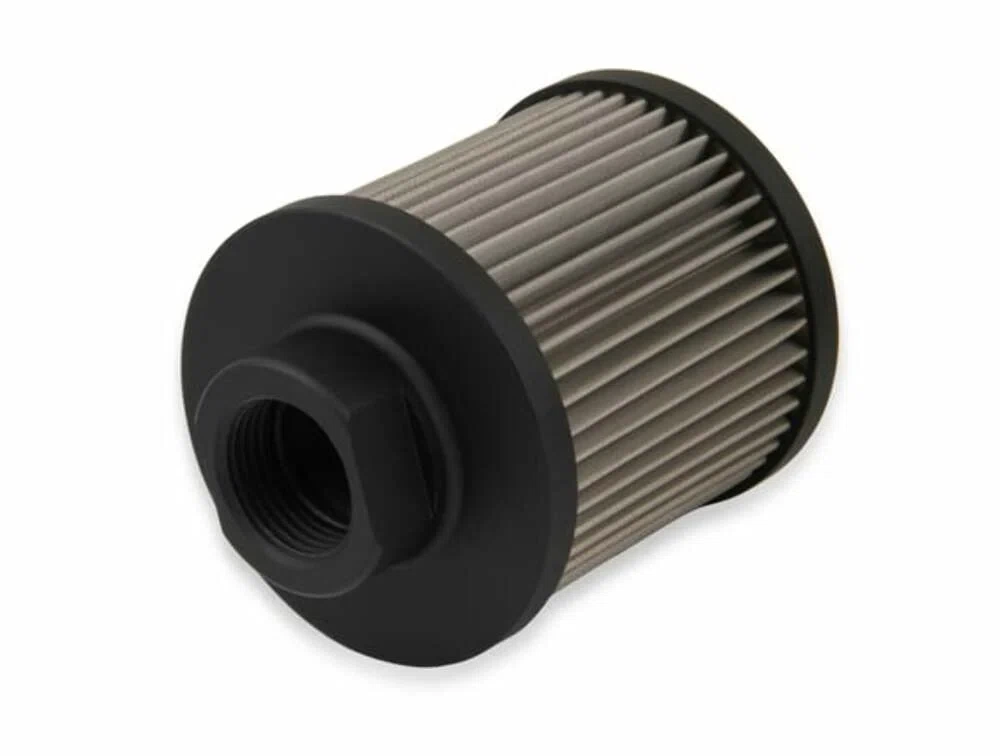

• Billet Aluminum Housing with Stainless Steel Mesh Filter w/ -12 AN Female Inlet
• Welded Construction
• Capacity: 0.75L
• Meets Requirements of Most Racing Sectioning Bodies – for Oil Catch Tank
• Weight: 1.5 LB
• Pressure Tested to 75psi
