Availability: 9 in stock
Overview:

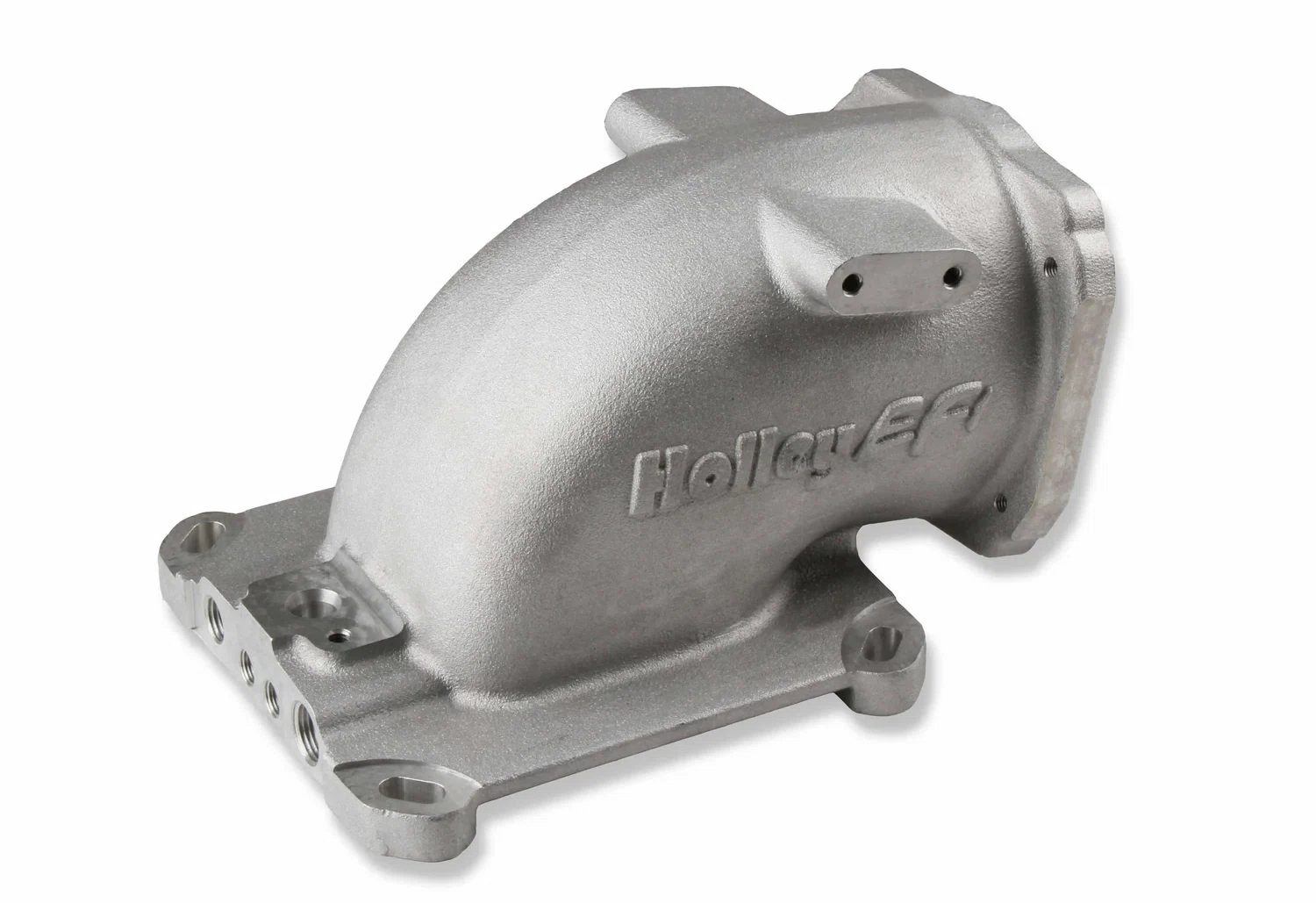

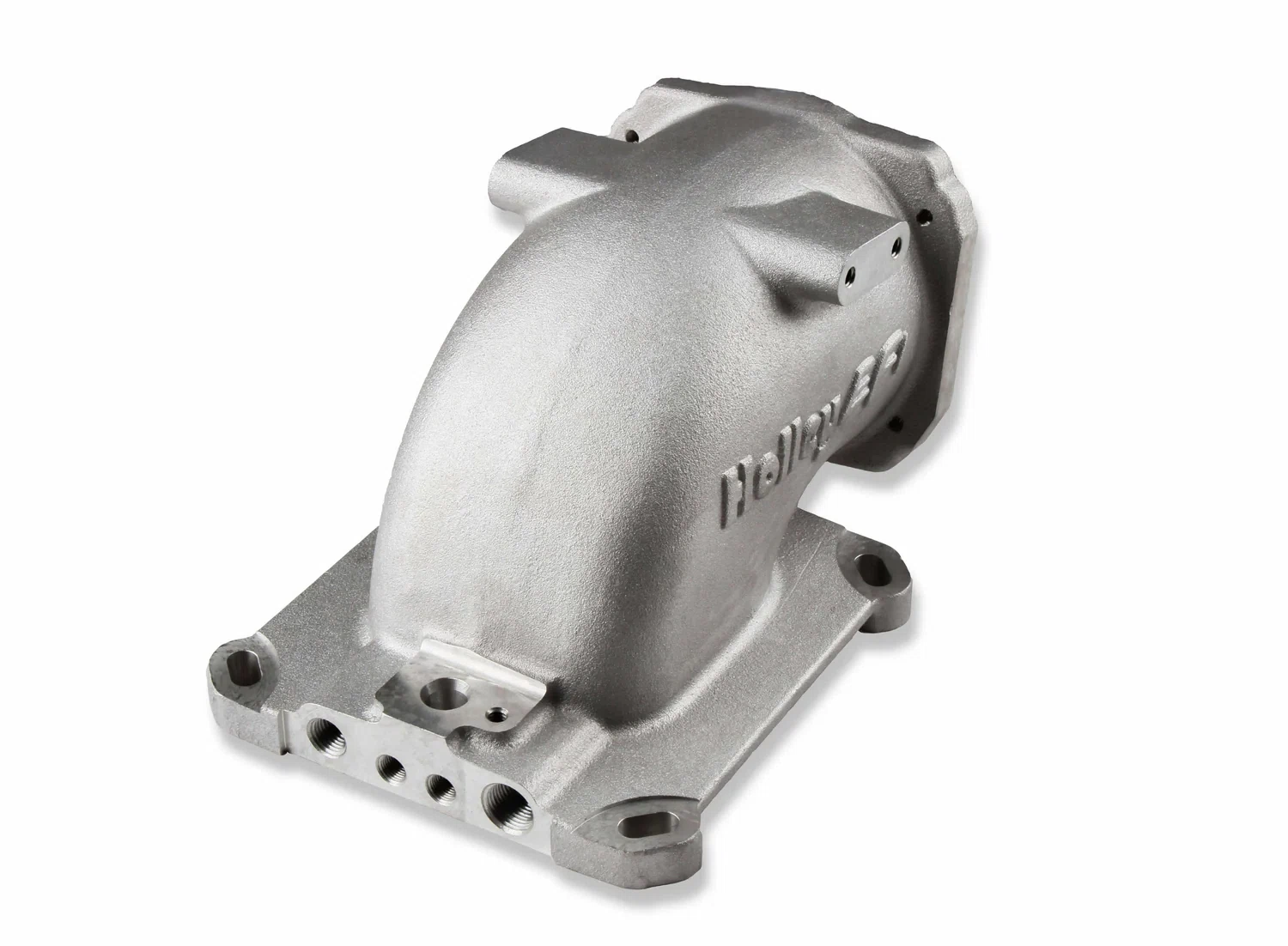

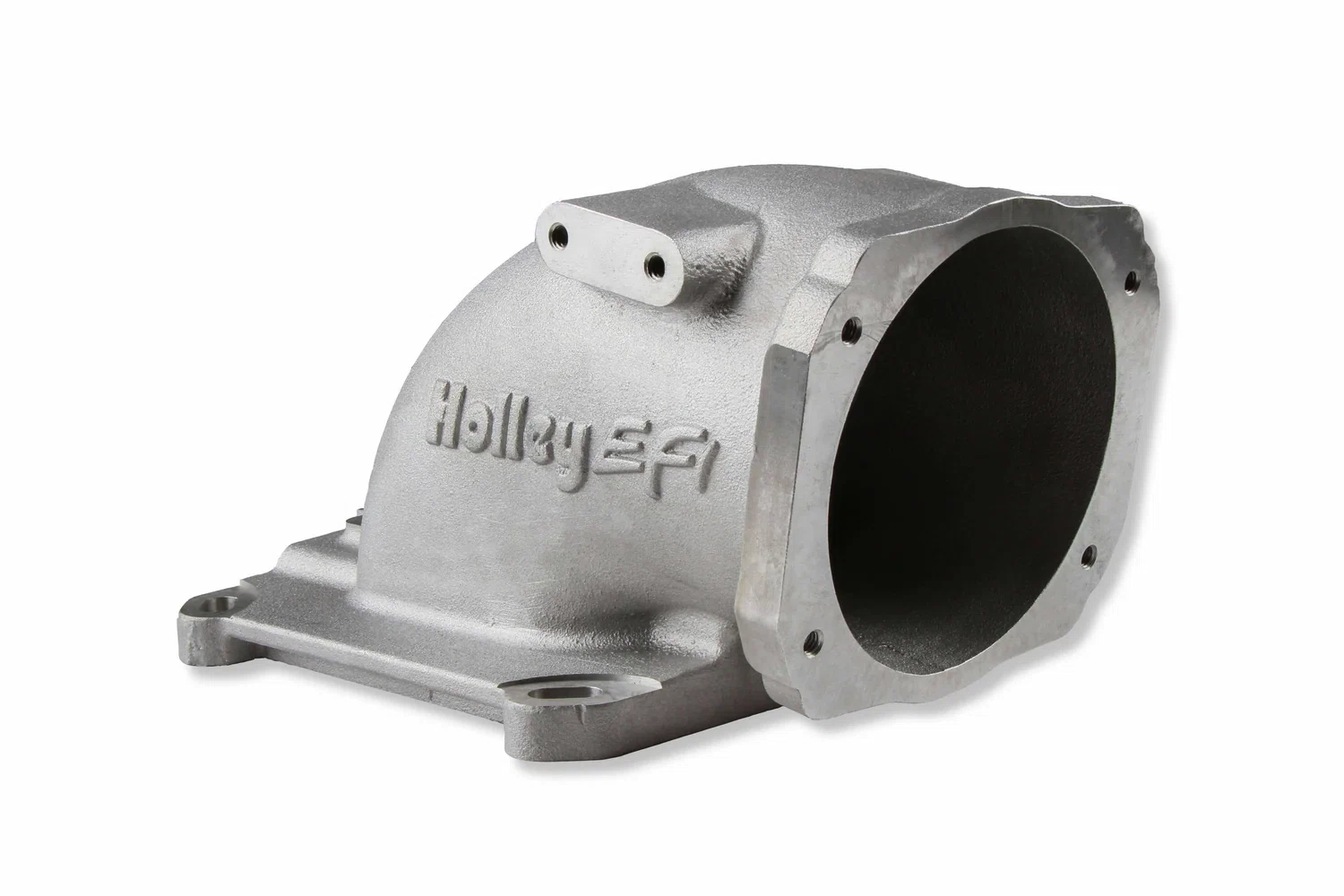

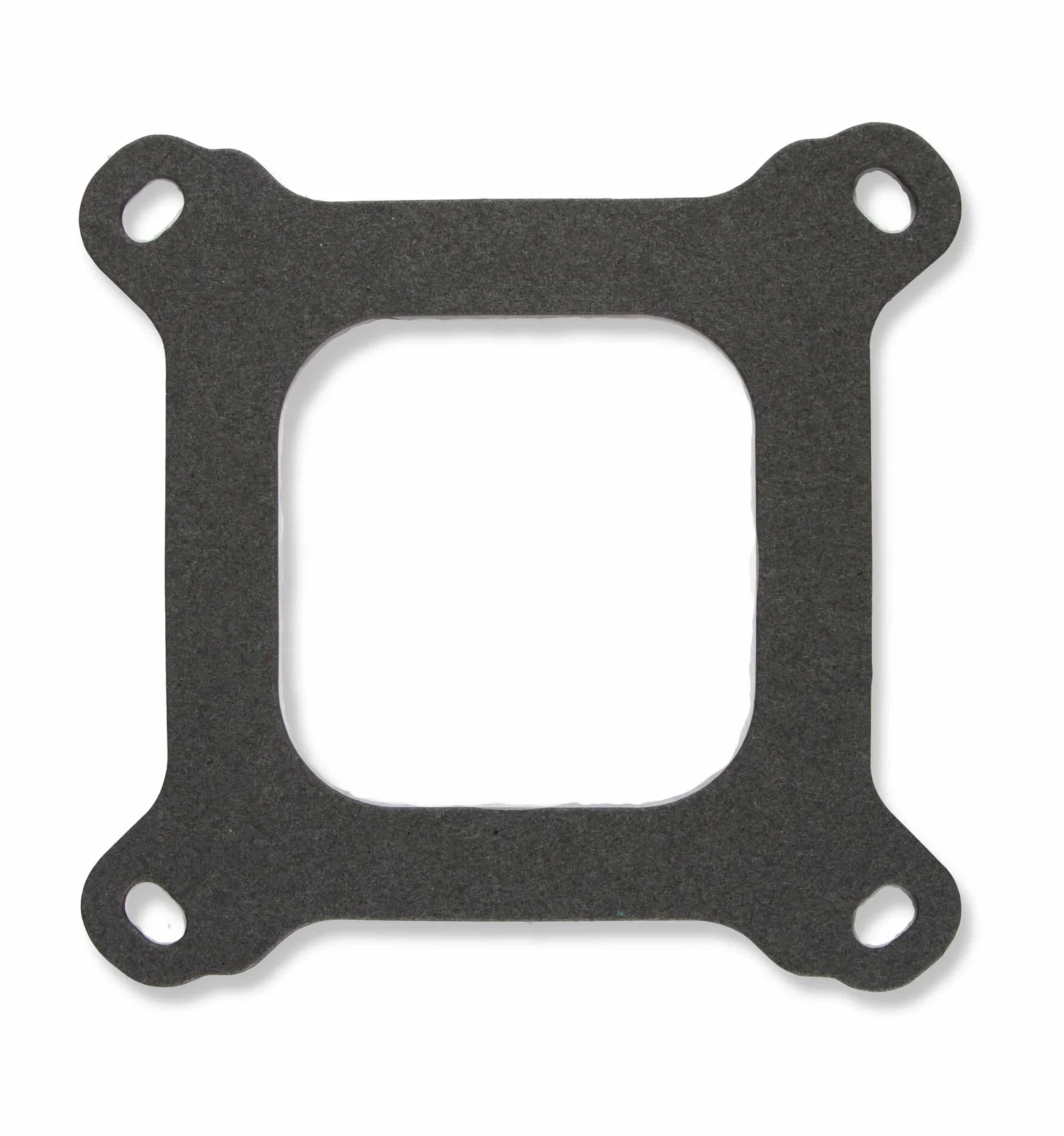

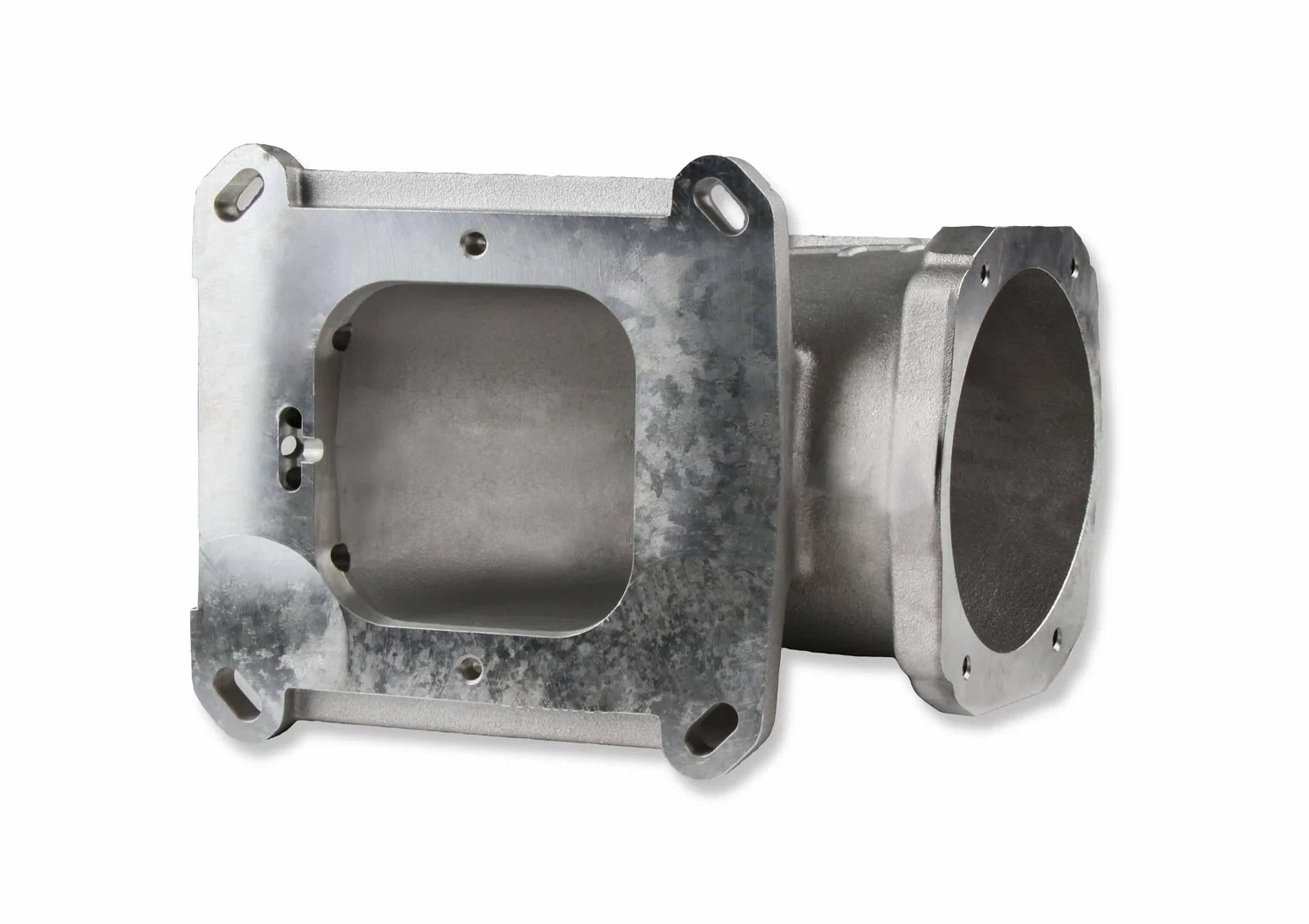

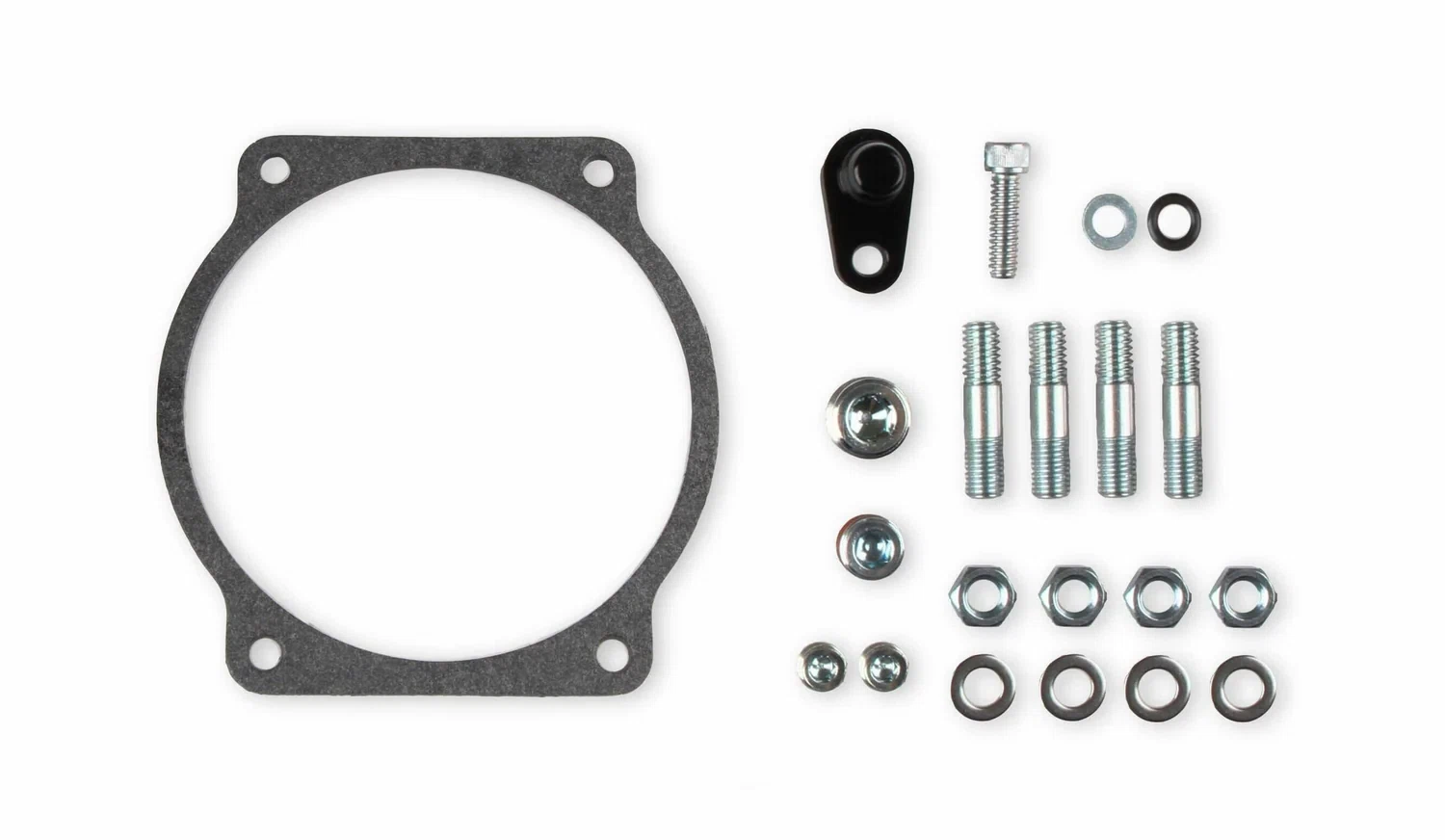

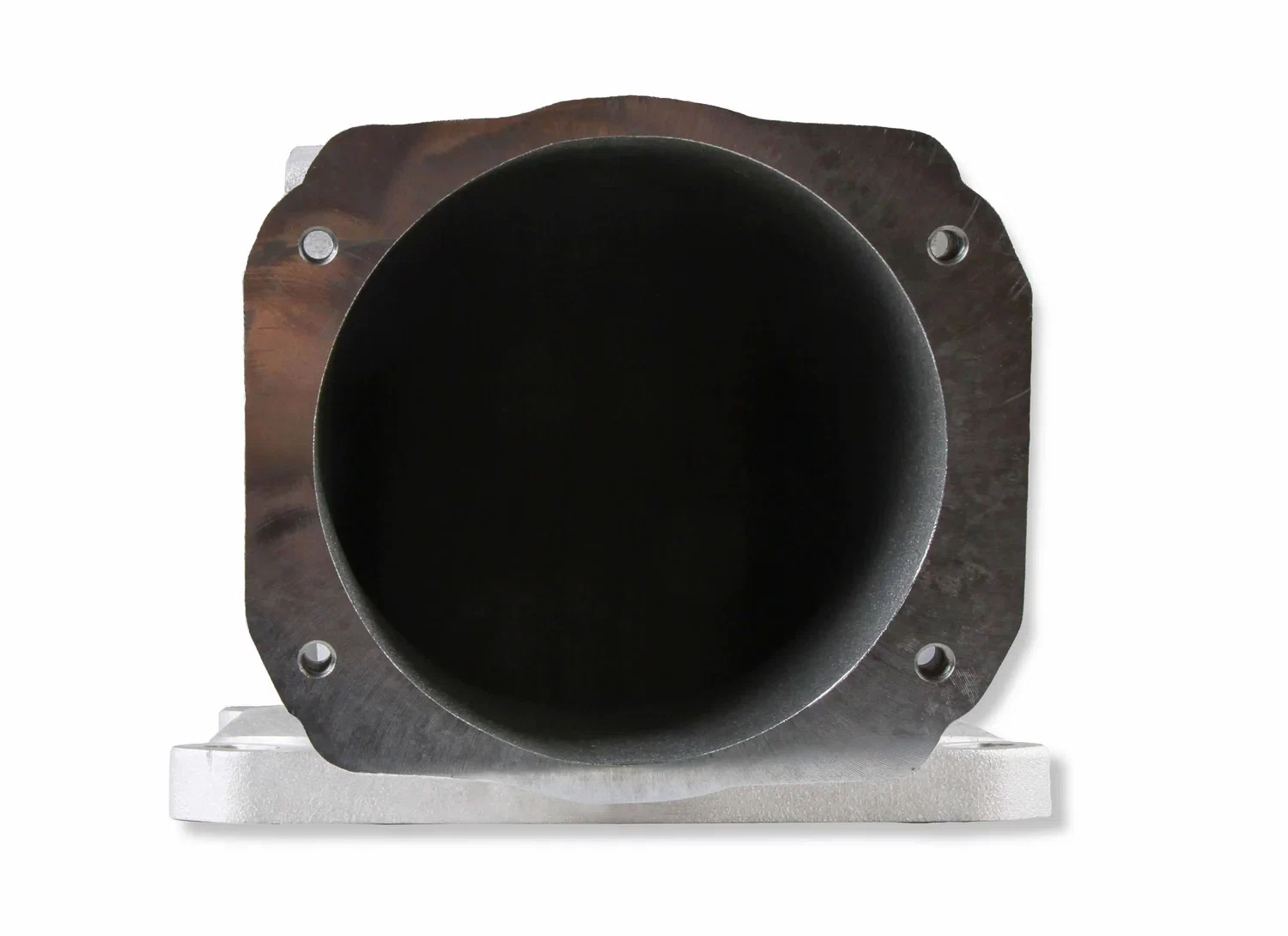

This cast EFI intake elbow allows the use of GM LS throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes & dual throttle cable mounting bracket bosses allow the elbow & throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100° throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets & hardware.
Features:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
| Brand | Holley EFI |
|---|---|
| Color | Natural |
| Construction | Cast |
| Emission Code | 3 |
| Engine | GM Small Block Gen III/IV (LS Based) |
| Finish | Satin |
| Fuel System Type | EFI |
| Height | 5.12″ |
| Product Type | Intake Elbow |
| Throttle Bore | 105mm |
| Warranty | Limited 90 Day |
| Brand |
Holley EFI |
|---|---|
| Color |
Natural |
| Construction |
Cast |
| Emission Code |
3 |
| Engine |
GM Small Block Gen III/IV (LS Based) |
| Finish |
Satin |
| Fuel System Type |
EFI |
| Height |
5.12″ |
| Product Type |
Intake Elbow |
| Throttle Bore |
105mm |
| Warranty |
Limited 90 Day |
| GTIN |
090127745854 |
