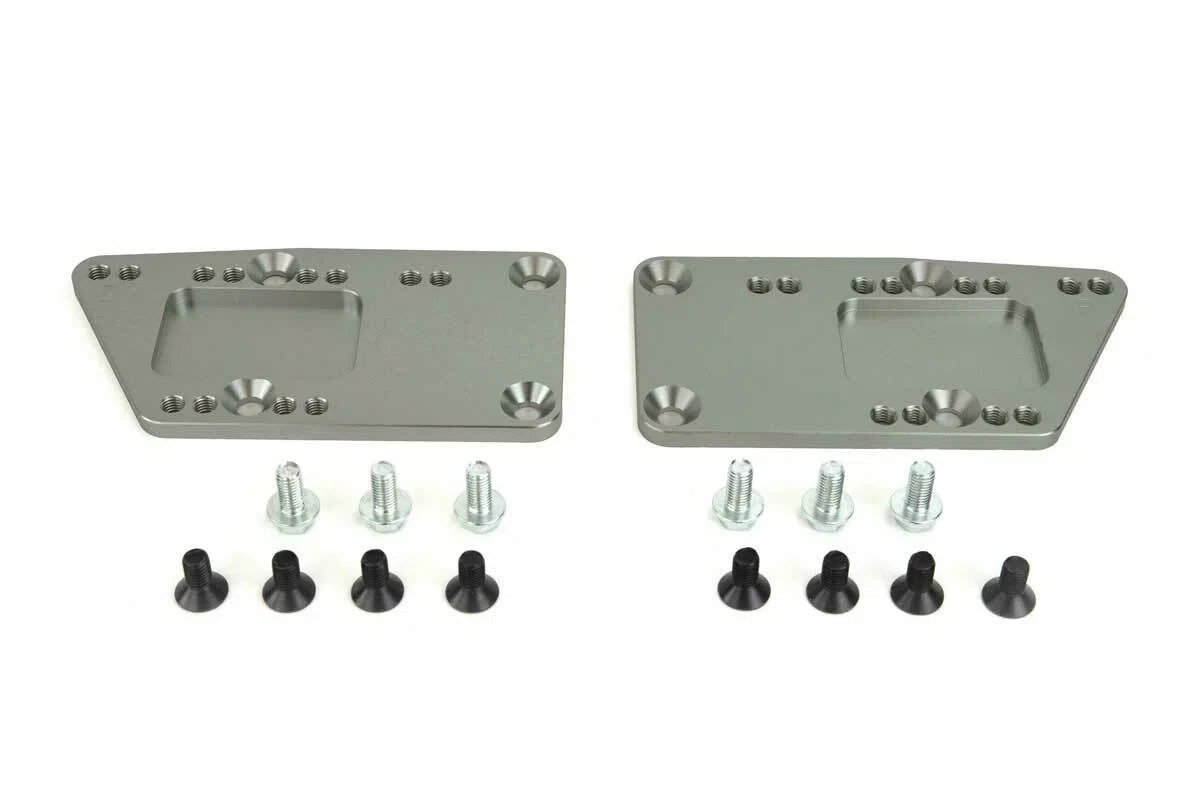

These 3/8″ thick Billet Aluminum adapter plates allow a LS Series Engine to be bolted to a vehicle originally equipped with a Small Block Chevy (SBC) engine.?
These adapters bolt to your LS series engine and have provisions for 4 different mounting locations for a standard 3 bolt SBC Motor mount.?
Includes:
2 aluminum adapter plates
6 flange head M10 bolts
8 flat head M10 bolts.
The four positions of these mounts are 0.100″ , 0.600″ , 1.860″ , and 2.360″ engine moved forward.??
Engine crank centerline will be 0.18″ above factory SBC.
