Availability: 5 in stock

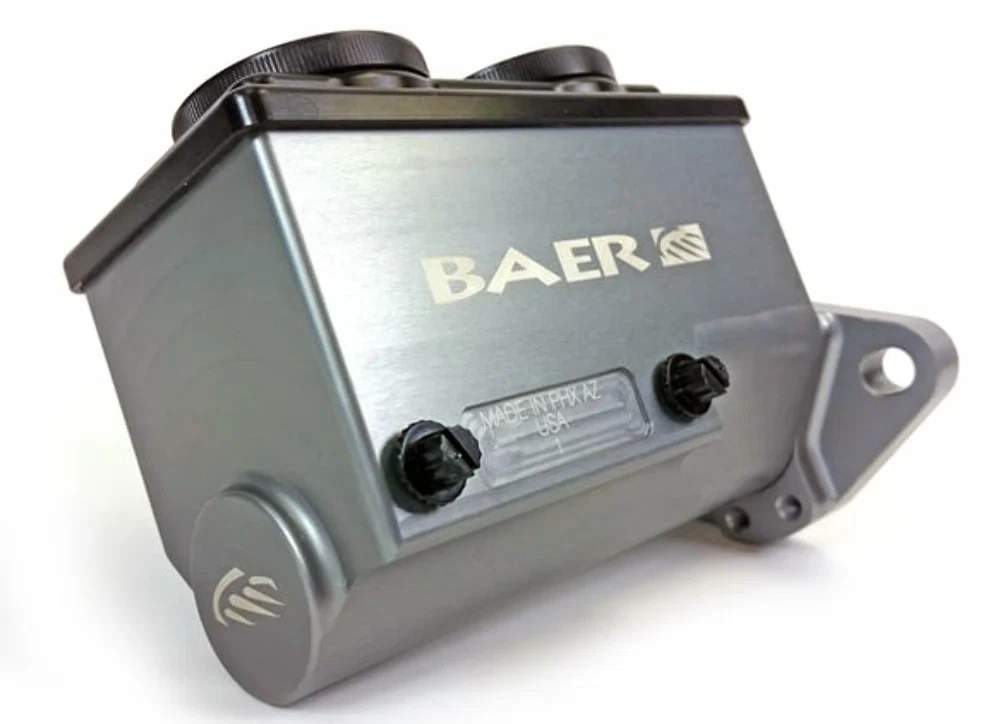

This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 15/16″ bore, left side ports and a 2-bolt mounting flange fitting many Ford and GM applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications. Optional proportioning valves also available, see below.
Remaster Specifications:
Remaster Body: Hard Anodized Gry
Remaster lid: Hard Anodized Black
Remaster Caps: Hard Anodized Black
Bore Size: 15/16″
Area: 0.97″
Stroke: 1.3″
Volume Ratio: 2:1
Reservoir Size: 7oz per reservoir, Fill to 75% or 5.25oz per reservoir
Port Size: 3/8-24 Inverted flare w/inserts or straight w/o inserts
Port Exit: Left side
Flange Type: 2 Bolt GM/Ford

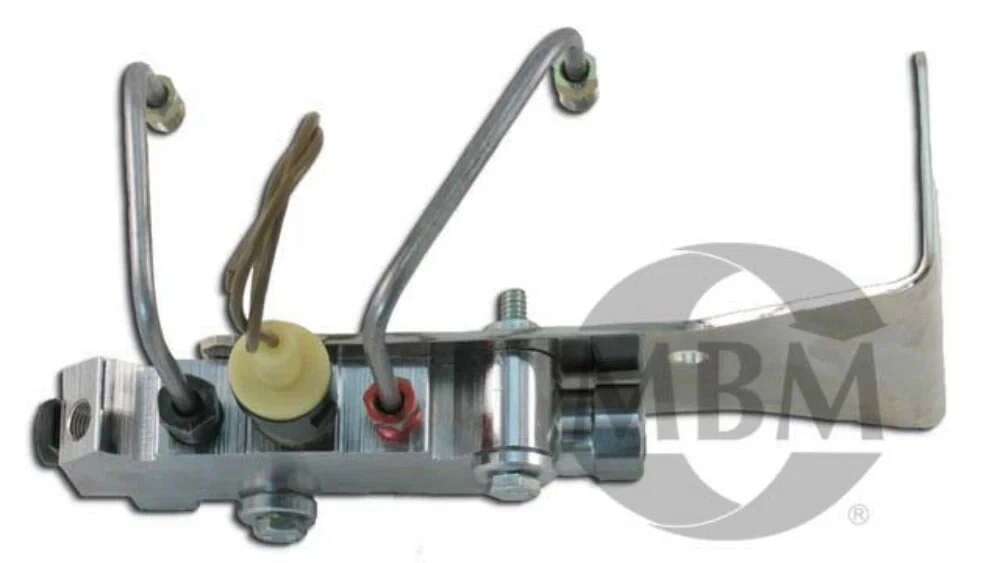

A proportioning valve is recommended on 4 wheel disc brake applications without ABS and Baer has two style valves to choose from. The Remaster specific valve has a one-piece body with integral mount designed to locate the valve directly under the Remaster.
Features:
| Application | Universal |
|---|---|
| Brand | Baer Brakes |
| Emission Code | 6 |
| Finish | Gray |
| Master Cylinder Cap Included | Yes |
| Material | 6061-T6 Aluminum |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Product Type | Brake Master Cylinder |
| Reservoir Included | Yes |
| Application |
Universal |
|---|---|
| Brand |
Baer Brakes |
| Emission Code |
6 |
| Finish |
Gray |
| Master Cylinder Cap Included |
Yes |
| Material |
6061-T6 Aluminum |
| Mounting Hardware Included |
No |
| Mounting Hole Quantity |
2 |
| Product Type |
Brake Master Cylinder |
| Reservoir Included |
Yes |
| GTIN |
844165047544 |
