Overview:
If you’re looking to improve the performance of your modified mill, we have the answer. Whether you’ve done a cam swap, or bolted on a carb, intake and headers… the 6A is a surefire way to harness all the ponies under your hood.
The Digital 6A is a microprocessor controlled, capacitive discharge ignition that multi sparks up to 3,000 RPM providing easy starts, a clean, smooth idle and quick throttle response by optimizing your engines efficiency. Above 3,000 RPM, a single spark stays lit for up to 20â° of crankshaft rotation ensuring a complete burn of the air / fuel mixture in every cylinder.

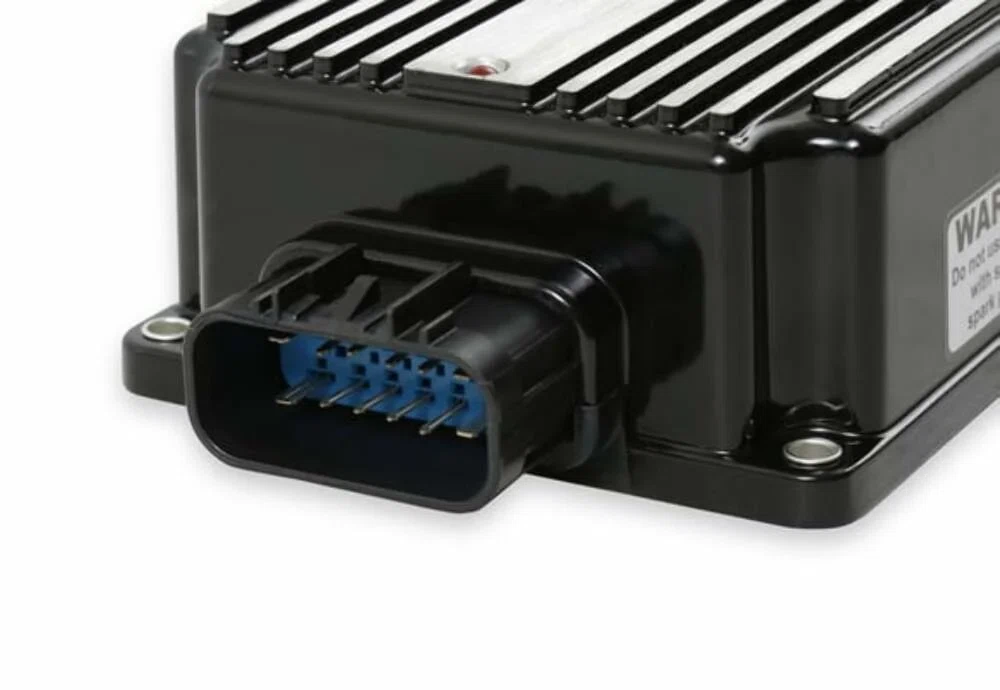

A sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications. It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups.
Features:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
| Brand | MSD |
|---|---|
| C.A.R.B. EO # | D-40-43 |
| Color | Black |
| Current Draw | .7 Amp per 1,000 RPM |
| Emission Code | 1 |
| Features | No Rev Limiter |
| Primary Voltage | 520-540 Volts |
| Product Type | Digital 6A Ignition Control Box |
| RPM Range | 15,000 RPM with 14.4 Volts |
| Secondary Voltage | 45,000 Volts |
| Spark Energy | 135-145 mJ per spark |
| Voltage Required | 12-15 Volts, 7 Volt Start |
| Warning | California Proposition 65 |
| Warranty | Limited 1 Year Warranty |
| Weight and Size | 1.7 lbs., 8″L x 4″W x 1.825″H |
| Brand |
MSD |
|---|---|
| C.A.R.B. EO # |
D-40-43 |
| Color |
Black |
| Current Draw |
.7 Amp per 1,000 RPM |
| Emission Code |
1 |
| Features |
No Rev Limiter |
| Primary Voltage |
520-540 Volts |
| Product Type |
Digital 6A Ignition Control Box |
| RPM Range |
15,000 RPM with 14.4 Volts |
| Secondary Voltage |
45,000 Volts |
| Spark Energy |
135-145 mJ per spark |
| Voltage Required |
12-15 Volts, 7 Volt Start |
| Warning |
California Proposition 65 |
| Warranty |
Limited 1 Year Warranty |
| Weight and Size |
1.7 lbs., 8″L x 4″W x 1.825″H |
| GTIN |
085132620135 |
