Overview:

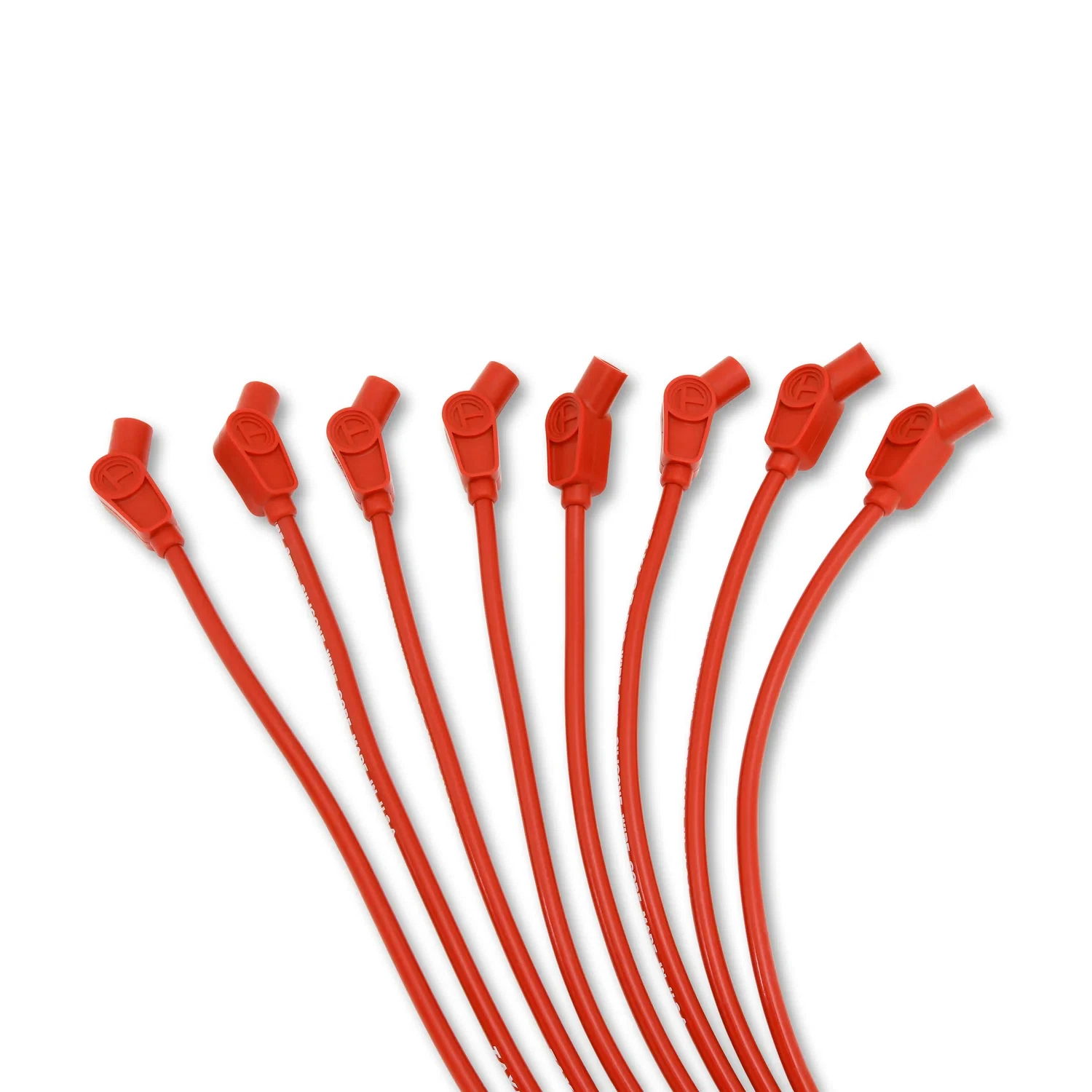

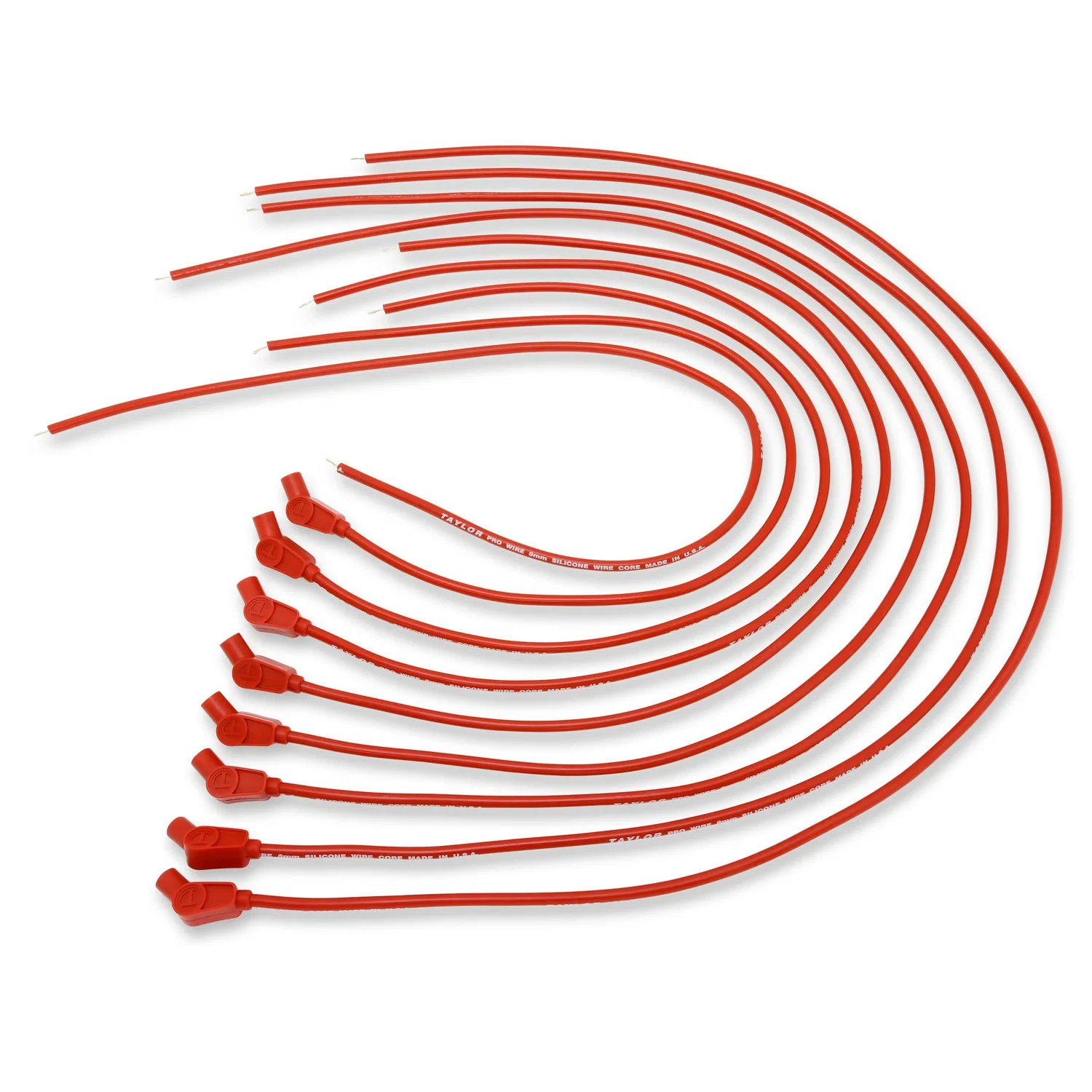

Pro TCW univ 8 cyl 135 red
The ultimate 8mm Tinned Copper Solid Core race wire when RFI/EMI is not a concern and is an excellent choice for Magnetos and point style ignition systems. Delivers maximum fire power to spark plugs with a 0-ohm per foot resistance. Taylor patented low profile 100% silicone PRO BOOT on spark plug ends.
Features:
O ohms per foot tin plated copper wire core (solid core)
8.00mm Outer Silicone Jacket
Silicone inner core provides added heat protection and superior flexibility throughout its lifetime
Recommended for magnetos or point type ignition
Not recommended for applications with onboard electronics or electronic ignition
Universal fit sets will require cutting to fit, terminating, and booting the distributor end
Specs:
Core Material: Tinned Copper (.25mm x 19 strands)
Distributor Coil End Boot Degree: 90 Degree
Distributor Coil End Boot Type: Male/HEI and Female/Socket
Distributor Coil End Terminal Type: Male/HEI and Female/Socket
Grade Type: Performance
Insulation Color: Red
Insulation Material: Silicone
Insulation Outside Diameter: 8
Length:
Material Thickness:
Negative Cable Length:
Noise Suppression Type: Yes
Outside Diameter: 8 MM
Plug Wire Maximum Diameter:
Positive Cable Length:
Resistance: 0 ohm/ft
Size:
Spark Plug Boot Material: Silicone
Spark Plug End Boot Color: Red
Spark Plug End Boot Degree: 135
Universal Or Specific Fit: Universal
Width:
Wire 1 Length:
Wire 2 Length:
Wire 3 Length:
Wire 4 Length:
Wire 5 Length:
Wire 6 Length:
Wire 7 Length:
Wire 8 Length:
Wire Separators Included: No
Wire Series: Prowire Solid
Wire Size:
Part Number: 70252
Emissions:
- This Product is considered а Replacement Part per CARB and EPA regulations for emissions compliance and is legal for sale and use on specified vehicles in all 50 states as stated in Manufacturer’s Application Guide and lnstallation Instructions.
