Overview:

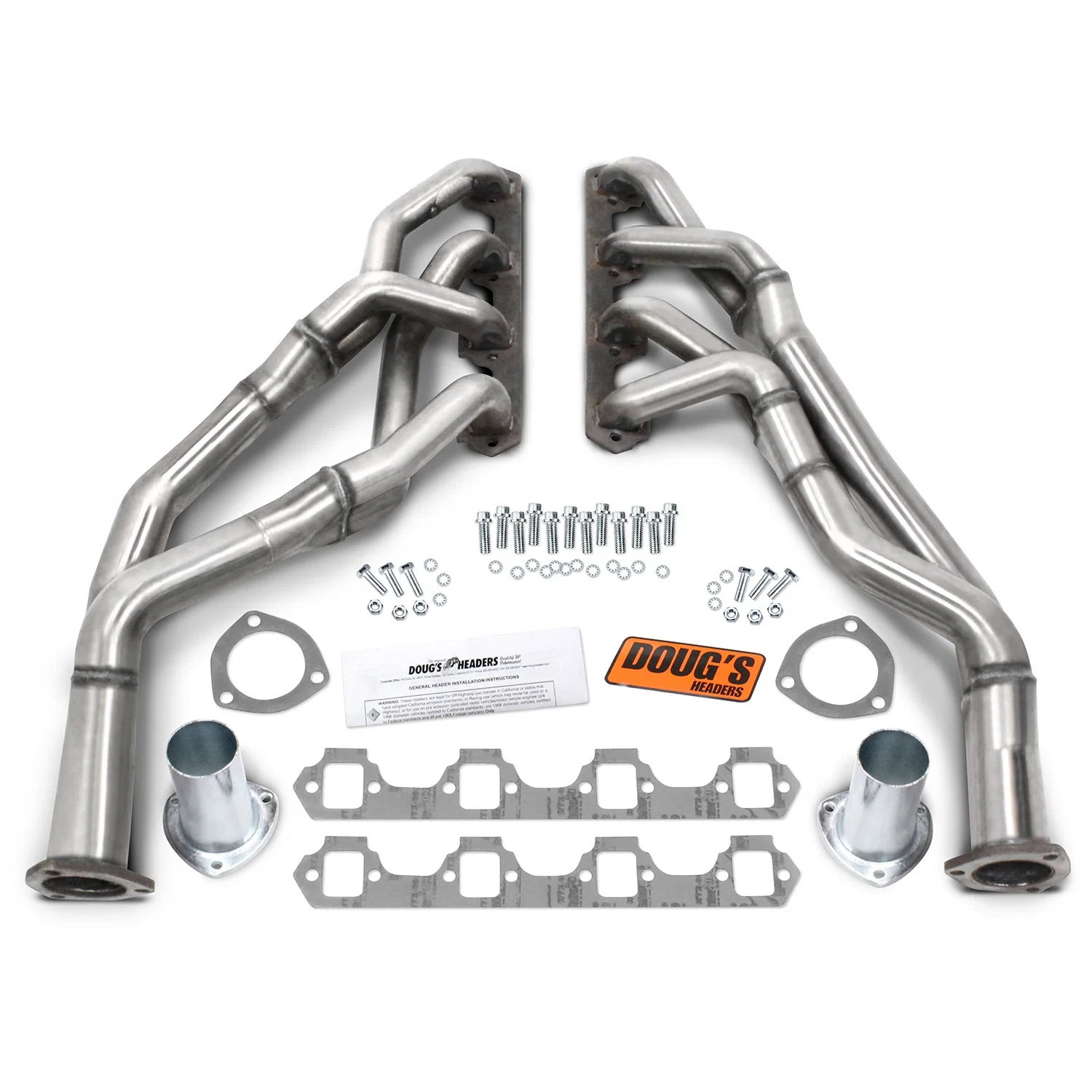

60-65 Falcon SBF Tri Y Stainless
Doug’s is the pioneering force behind the popular TRI-Y design for cars and trucks. The unique, shortend, paired primary tubes increase mid-range torque without sacrificing top end power. TRI-Y’s are a great choice for daily drivers and heavy duty trucks looking to increase power from idle up to 4500 RPM while maintaining maximum fuel efficiency.
Features:
- Natural stainless-steel finish offers superior resistance to rust and corrosion
- 3/8″ thick 304 stainless machine flanges to prevent warping
- CNC 304 stainless mandrel bent tubes for an accurate fit and improved flow
- Precision formed long transition collectors and long tube design reduce backpressure and increase higher RPM horsepower
Specs:
-
Brand: Doug’s Headers
-
Collector Attachment: 3-Bolt Flange
-
Collector Diameter: 2.5 IN
-
Collector Port Diameter: 2.5 IN
-
Color: Silver
-
Cylinder Head Port Shape: SAP
-
Design: Tri-Y
-
EGT Port: No
-
Finish: 304 Stainless Steel
-
Flange Thickness: 0.375 IN
-
Gasket Or Seal Included: Yes
-
Gaskets Included: Yes
-
Grade Type: Performance
-
Header Material: 304 Stainless Steel
-
Header Style: Tri-Y
-
Material: 304 Stainless Steel
-
Mounting Hardware Included: Yes
-
Oxygen Sensor Port: No
-
Port Shape: SAP
-
Primary Tube Outside Diameter: 1.625 IN
-
Primary Tubing Diameter: 1.625 IN
-
Prop 65 (C, R or CR): CR
-
Prop 65 Yes/No: Yes
-
Sheen Level: Satin
-
Title: Doug’s Tri Y Header 60-65 Falcon 260-302 SBF Standard Trans 1 5/8-2″ Primary 2 1/2″ Collector 304 Stainless D660YS-SS
-
Tube Wall Thickness: 16 GU
-
Part Number: D660YS-SS
Applications:
- 1962-1965 Ford Falcon 260 CID
- 1962-1963 Ford Falcon 221 CID
- 1964-1965 Ford Falcon 289 CID
- 1962-1964 Ford Ranchero 260 CID
- 1965-1965 Ford Ranchero 289 CID
- 1962-1965 Mercury Comet 260 CID
- 1962-1963 Mercury Comet 221 CID
- 1964-1965 Mercury Comet 289 CID
Emissions:
- This product is Legal for use on Pre-Pollution Controlled Vehicles. It is legal for use on all vehicles produced Before Emissions Control Regulations were imposed. These are considered Uncontrolled Vehicles and are defined as follows
- 1965 and Older US Manufactured California Certified Vehicles
- 1967 and Older US Manufactured Federally Certified Vehicles
- 1967 and Older Foreign Manufactured Vehicles
Fitment Notes:
- Vehicles with Air Injection heads will require grinding of the header flange to fit.
- Will not fit GT40 P heads.
