System queries vehicle upon installation to determine what list of parameters can be obtained from the vehicle and used as inputs to gauges
Spaces for 6 standard gauges: speedo, tach, fuel, oil, volt, temp, and 2 auxiliary gauges of the customers? choosing
All instruments can be driven traditionally through proper senders if vehicle ECU does not support an output the driver wants to monitor
Set up and managed all through an app available on the App Store? or Google Play?
The app is used to configure by choosing which gauges a customer has in the dash and how each gauge gets its signal
The app has a virtual gauge screen, aligning with the dash instruments
The app has easy diagnostics, displays values being received by Zeus-Link and will allow user to cycle gauges to predetermined positions, to verify correct outputs and wiring
Warning and check engine light outputs on the Zeus-Link and external contacts to light a dash light
Dash light connection

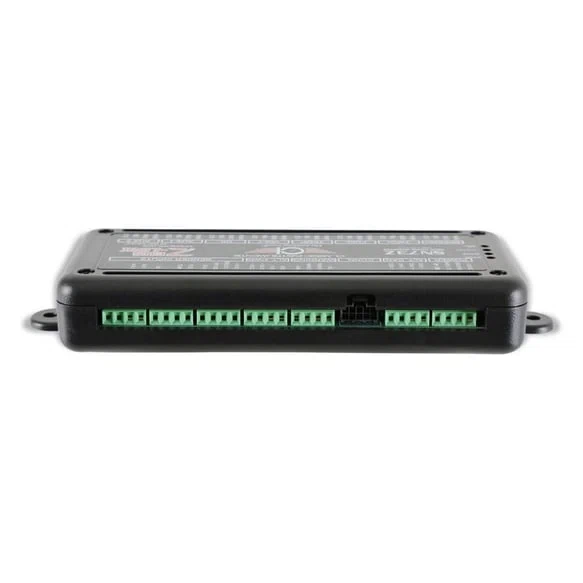

All gauge connections to Zeus-Link (power, ground, signal, dash lights)
Additional resistor dongle available if needed to use multiple Holley CAN devices on the same harness
Harness plugs direct into Zeus-Link and then to Holley ECU or OBD
Holley harness has additional Holley ECU connector for other devices
On-board diagnostic lights give status of power, BLE, and data on the circuit board for Zeus-Link
Pass-through CAN port connection for other CAN devices
Compatible with all Classic Instruments sending units and gauges
