Overview:

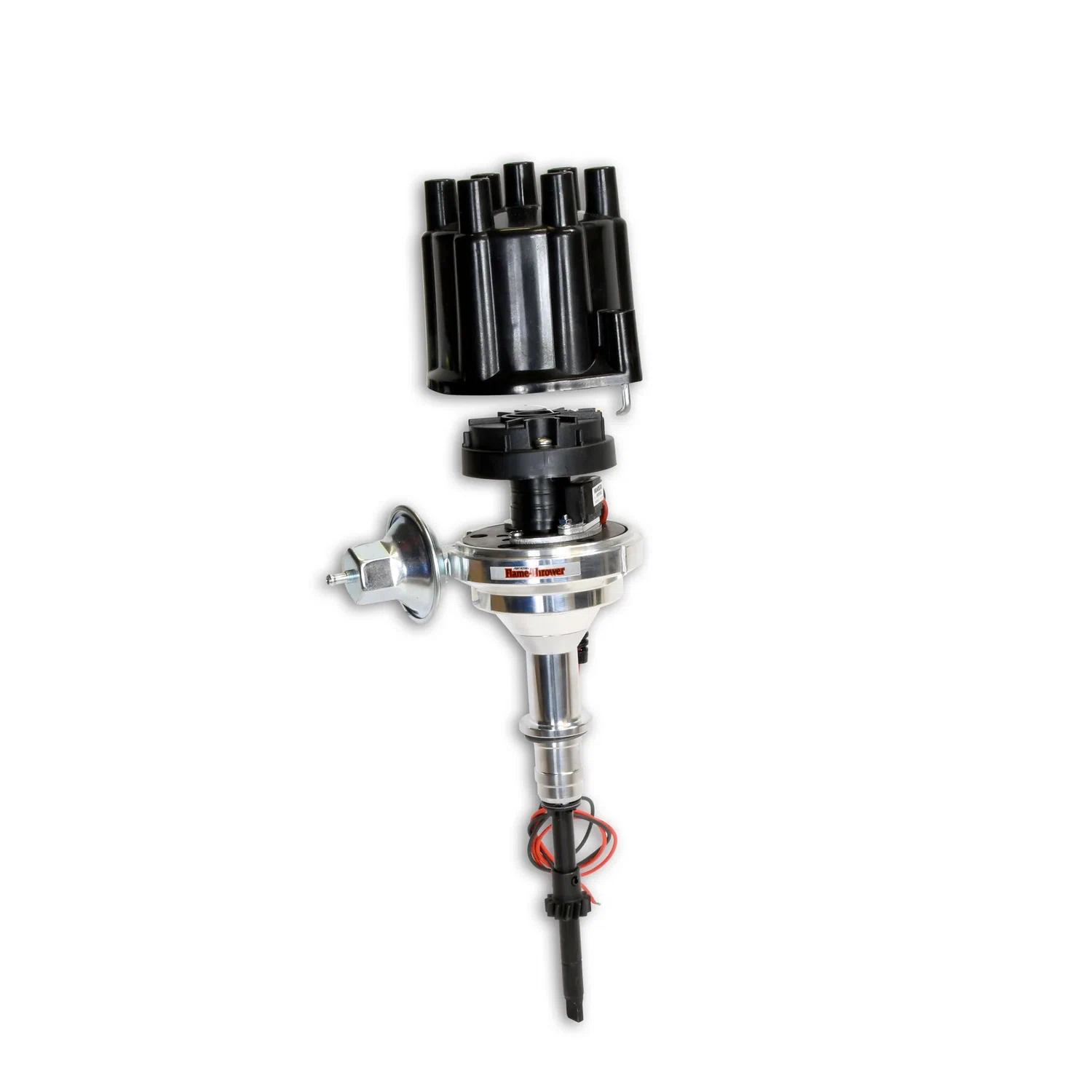

Dist Billet Corvair Eng Blk Cap Ignitor module
Billet Plug n’ Play Distributors are based on a precision CNC-machined housing with an upper ball bearing to support the steel distributor shaft accurately from idle to redline rpm. These distributors feature our maintenance-free electronic ignition module to produce a strong spark and steady ignition timing.
Features:
Precision CNC machined 6061-T6 billet aluminum housings are lightweight yet offer maximum strength.
Our Billet distributors ship with Ignitor modules factory installed.
Each billet distributor is hand polished and buffed to a high luster.
Tempered distributor shaft has low torsion displacement for accurate timing and extended operational life.
Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and provide shaft and advance mechanism stability reducing high RPM vibration.
Specs:
Adjustable Collar: No
Advance Type: Vacuum and mechanical
Brand: Pertronix
California Proposition 65: WARNING: This product can expose you to chemicals including chromium, which is know to the State of California to cause cancer or birth defects of other reproductive harm. For more information, visit www.p65warnings.ca.gov
Cap Color: Black
Cap Diameter: 5
Cap Terminal Gender: Female
Clamp Hardware Included: No
Clamp Included: No
Coil Wire Included: No
Computer Controlled Compatible: No
Connector Type: Unsealed
Distributor Cap Included: Yes
Distributor Gear Included: Yes
Gear Material: Steel
Grade Type: Performance
Housing Color: Natural
Housing Finish: Polished
Housing Material: Aluminum
Ignition Box Required: No
Ignition Module Included: Yes
Ignition Rotor Included: Yes
Marine Approved: No
Mechanical Tach Drive Provision: No
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Quantity: Sold individually.
Rotor Rotation: Clockwise (Right)
Shaft Color: Natural
Shaft Diameter: 0.5
Shaft Material: Steel
Trigger Type: Hall Effect
Part Number: D108700
Emissions:
- 1 – This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions.
